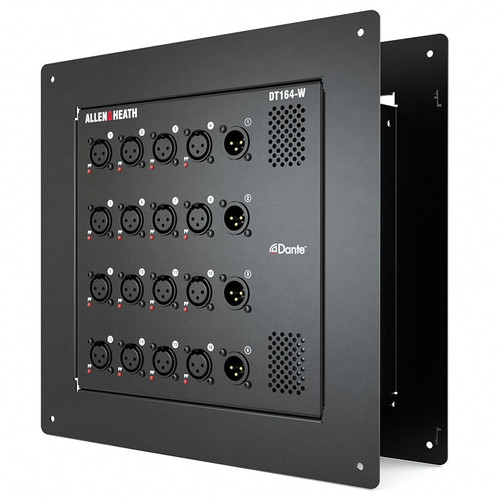

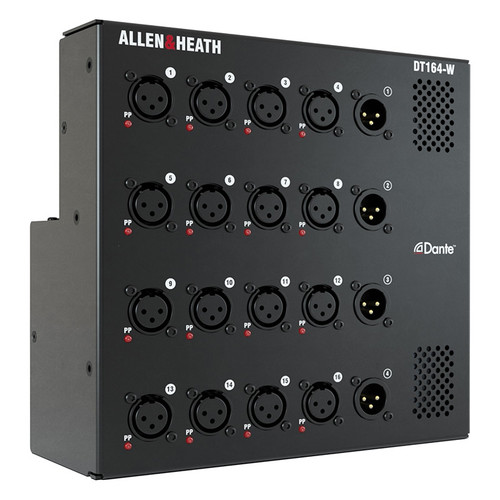

Allen & Heath DT164-W Dante I/O Expander with 16 XLR Input / 4 XLR Output
The DT164-W provides 16 microphone preamps and 4 line outputs in a versatile wall-mount design for permanent installation. The reversible mounting frame allows for in-wall or on-wall mounting. Additionally, the unit can be fitted in a standard 12×12” NEMA box or equivalent or mounted in a floor pocket for stage use. The IEC mains power inlet can be replaced with a gland module and screw terminals for fixed installation, and a DC 12V backup supply is also provided.
DT164-W offers the acclaimed Allen & Heath preamps, complete with 96kHz converters for best-in-class sound quality over Dante, plus Primary and Secondary ports for daisy-chain or redundancy through secure EtherCon connectors.
Up to 16 units can be added to an SQ or dLive system when equipped with an SQ Dante or dLive 96kHz Dante card.
| Dimensions (H x W x D) | 8.25" (210 mm) x 8.25" (210 mm) x 3.5" (87 mm) |
|---|---|
| Weight | 7 lbs (3.2 kg) |
