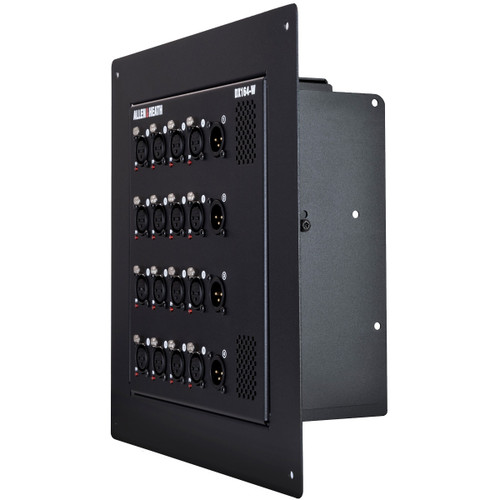

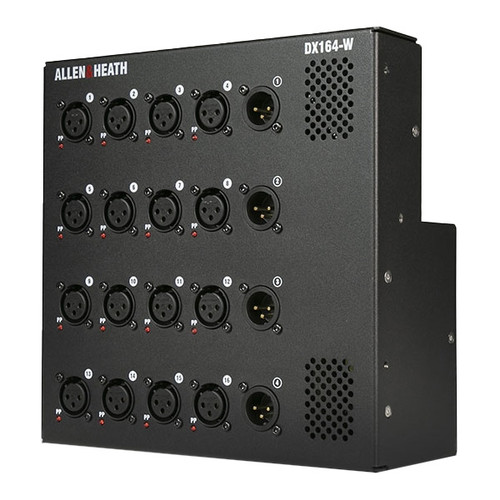

The Allen & Heath DX164-W is a wall-mountable expander that adds remote I/O to a dLive, Avantis or SQ. Each DX164-W features 16 mic preamps with independent Phantom Power LED indicators, plus 4 XLR line outs.

Description

Allen & Heath DX164-W Wall Mount DX Expander
with 16 XLR Inputs and 4 XLR Outputs

The Allen & Heath DX164-W is a wall-mountable expander that adds remote I/O to a dLive, Avantis or SQ. Each DX164-W features 16 mic preamps with independent Phantom Power LED indicators, plus 4 XLR line outs.

The Expander's design allows for wall mount operation or, alternatively, installation in a stage "Dip Trap" making it perfect for fixed installations.

A second DX164-W or a DX168 can be connected when running in Cascade mode. Alternatively, a redundant connection can be made to compatible hardware.

The expander can be operated freestanding, mounted in a floor pocket, mounted on a wall, or flush-mounted in a wall. Different power options are provided to suit the application.

Features
  • Designed for wall mount or dip trap installation
  • 16 balanced mic preamps on XLR
  • Phantom power LED per input
  • 4 balanced XLR line outs
  • Locking EtherCon ports
  • Daisy chain or redundant audio connection
  • Can fit in a standard NEMA box (custom brackets required)
  • Compatible with ACE Backstage 174SLBK stage pocket system
  • 3 power supply options: 100-230V AC powered on IEC or screw terminal blocks, as well as 12V DC power
  • DC power can be used as redundant power supply
  • 96kHz converters

Specifications
Mic/Line XLR Inputs Balanced XLR, +48V phantom power
Mic/Line Preamp Fully recallable
Input Sensitivity -60 to +15dBu
Analogue Gain +5 to +60dB, 1dB steps
Pad -20dB Active PAD
Maximum Input Level +30dBu (PAD in)
Input Impedance >4kΩ (PAD out), >10kΩ (PAD in)
Mic EIN -127dB with 150Ω source
Analogue XLR Outputs Balanced, Relay protected
Output Impedance
Nominal Output +4dBu = 0dB meter reading
Maximum Output Level +22dBu
Residual Output Noise -92dBu (muted, 20-20kHz)
-90dBu (muted, 20-40kHz)
Operating Temperature Range 0°C to 35°C (32°F to 95°F)
Mains Voltage Operating Range 100-240V AC, 50/60Hz
Mains Power Consumption 35W max
Dimensions (H x W x D) 8.25" (210 mm) x 3.5" (87 mm) x 8.25" (210 mm)
Weight 7 lbs (3.2 kg)
