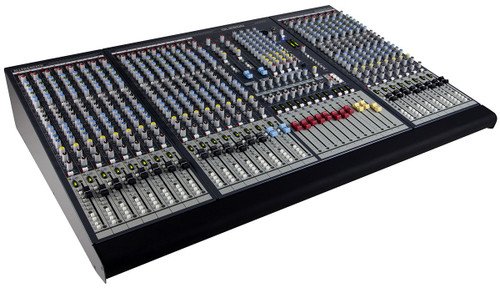

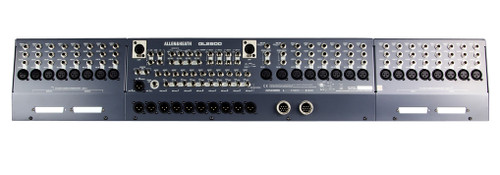

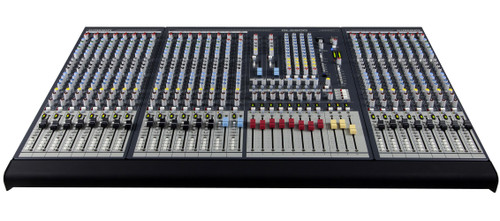

Allen & Heath GL2800-48 48 Channel Live Sound Mixer (Discontinued)

Part #:
GL2800-48
Model #:
GL2800-48
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

The Allen & Heath GL2800-48 48 Channel Live Sound Mixer is a brand new dual-function mixer derived from the classic GL Series, the most popular mixers in the world for mid-range mixing applications. One glance at this new design will confirm that all our design experience and knowledge has been put into one amazingly capable console.


Description

The Allen & Heath GL2800-48 48 Channel Live Sound Mixer is a brand new dual-function mixer derived from the classic GL Series, the most popular mixers in the world for mid-range mixing applications. One glance at this new design will confirm that all our design experience and knowledge has been distilled into one amazingly capable console. Uniquely at this level, GL2800 is equipped with 10 auxiliary sends - including a dedicated stereo aux - and using the 12x4 matrix, provides the ideal solution for IEM and stereo recording. 8 audio groups and L,R and M busses are also provided, allowing for full dual functionality with 10 mixes with faders, inserts and XLR drive. And at the heart of this design is the new gain structure allowing a whopping 34dBu maximum input capability and a new ultra-quiet mix head amp section, delivering excellent audio performance. GL2800 is designed for use in any live sound application, including theatres, music venues, houses of worship, festivals, corporate AV, stadiums, etc. With its neat, intuitive layout and straightforward analogue technology, clean audio and high dynamic range, its performance easily rivals that of the best digital consoles.

Features

  • 48 channel frames
  • LR and M mix buses
  • 8 Audio groups with pan and routing to LR and M
  • 10 Auxes including a dedicated stereo send
  • 2 multifunction stereo channels each with mic and stereo line inputs
  • 2 dual stereos provide an extra 4 summed or independent stereo returns
  • Fully featured 12x4 Matrix
  • Proper dual functionality for FOH/Monitor mixing
  • Recording capable with channel direct outputs
  • M can be used for LR mono sum, engineers wedge, or centre/sub mix
  • Matrix external inputs with level trims and common input capability
  • Stereo channel mic inputs can cross patch into matrix for ambience feed
  • Responsive 4 band, 2 sweep EQ
  • 100Hz channel high pass filters
  • Individual phantom power and polarity switching
  • Wide angle channel and master meters
  • Dedicated stereo monitor meters
  • Per channel pre/post fader aux switching for full flexibility
  • Recessed pre/post-EQ aux switching per channel
  • `Internal jumper plugs for aux, direct out and other options
  • Mutes on all fader masters
  • 100mm dust protected faders
  • Assignable talkback to all outputs
  • 1kHz oscillator / pink noise generator with external output
  • 2-track monitoring and replay to LR
  • 3 headphones/earpiece sockets and local monitor outputs
  • Electronically balanced XLR outputs with +26dBu drive capability
  • Preamp 74dB range with +34dBu input capability for mic or line
  • Ultra low noise mix head amp design
  • Uses external linear power supply
  • Built-in combiner for redundant backup supply
  • Metal jacks, gold-plated XLRs, sealed pots and switches
  • Individual circuit card assembly with nutted pots
  • Solid copper bus bar grounding
  • Sys-Link V2 console linking option
  • 4-pin lamp sockets

Specifications

Mic +34dBu (inc pad)
CH Line +34dBu
Other Line +20dBu
XLR +26dBu
Jack +20dBu
Channels +20dB
Mix +22dB
Meters 3 colour, quasi peak response
Sensitivity 0VU = +4dBu at XLR output
Master meters 12 segment -30 to +16dB
Channel meters 4 segment -12,0,+6+16dB (5dB before clip)
Frequency response 20Hz to 50kHz +/-0.5dB
Mic CMRR at 1kHz > 80dB typical
THD+n at +14dBu 1kHz Mic to mix out < 0.003%
Crosstalk at 1kHz Fader shutoff >90dB; Mute shutoff >88dB; Inter channel >90dB
Channel HPF 12dB/octave below 100Hz
HF Shelving +/-15dB, 12kHz
HM Peak/dip +/-15dB, 500Hz to 15kHz, Q=1.8
LM Peak/dip +/-15dB, 35Hz to 1kHz, Q=1.8
LF Shelving +/-15dB, 80Hz
HF Shelving +/-15dB, 12kHz
HM Peak/dip +/-15dB, 2.5kHz, Q=1.8
LM Peak/dip +/-15dB, 250Hz, Q=1.8
LF Shelving +/-15dB, 80Hz
Power supply External RPS11 IEC input External Input for optional RPS11 backup supply
Dimensions (H x W x D) 5.9" (150 mm) x 64” (1625 mm) x 22" (560 mm)
Weight 103.4 lbs (47 kg)
