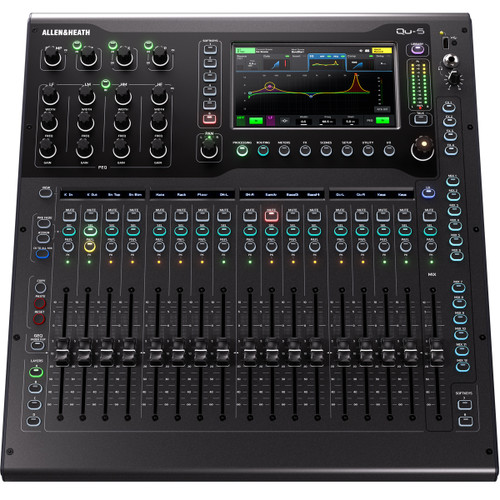

Allen & Heath Qu-5 32-Channel Digital Mixer

The Qu-5 is a compact yet powerful 32-channel digital mixer designed for engineers who demand exceptional sound quality, intuitive control, and modern connectivity. Featuring updated microphone preamps and high-performance 96 kHz AD/DA converters powered by the XCVI core, the Qu-5 delivers pristine audio clarity while retaining the familiar look and fast "walk up and mix" workflow the Qu series is known for.

With 17 motorized 100mm faders, per-channel displays, chromatic metering, and a redesigned touchscreen interface, the Qu-5 offers unmatched visibility and control in its class. Advanced assistive tools like Gain Assistant, Feedback Assistant, and a built-in 32-channel Automatic Mic Mixer make setup faster and performances smoother, whether mixing live events, conferences, or broadcasts.

Built for flexibility, the Qu-5 features a 32x32 USB-C audio interface, multitrack SD card recording, USB-A stereo playback, and SLink connectivity for Everything I/O expanders. Dante-enabled models add seamless network audio integration, making the Qu-5 a versatile solution for live sound, installed systems, and hybrid production environments.

Features

Features

32-channel compact digital mixer with 96 kHz processing
17 motorized 100 mm faders with channel displays
Updated mic preamps and high-performance AD/DA converters
Built-in Gain Assistant and Feedback Assistant tools
Integrated 32-channel Automatic Mic Mixer (AMM)
32x32 USB-C audio interface and SD multitrack recording
SLink port for Allen & Heath Everything I/O expanders
Optional Dante 16x16 audio networking support
Rack-mountable design with optional mounting kit

Specification

Core	XCVI 96 kHz Digital Processing
Mic/Line Inputs	16 Balanced XLR/Jack Combi, Recallable
Input Sensitivity (XLR/TRS)	-60 to +5 dBu / -50 to +15 dBu
Stereo Line Inputs	2x 1/4" TRS, Balanced
XLR Outputs	12 Balanced XLR
TRS Outputs	Balanced 1/4" TRS (A/B)
AES Digital Output	2-channel Balanced XLR, 44.1/48/88.2/96 kHz
SLink/Stage Box	Neutrik EtherCON
USB Audio	USB-C 32 x 32 Streaming, USB-A stereo recording/playback
SD Card	32GB SDHC, 16/32 channel multitrack
Faders	17 x 100 mm Motorized
SoftKeys	8 assignable SoftKeys
Touchscreen	7" Capacitive, 800 x 480, 24-bit RGB
Metering	Chromatic channel meters + 2 x 12 segment main meters
Internal FX	6 stereo engines: Reverb, Tap Delay, ADT, Chorus, Flanger, Phaser
Automatic Mic Mixer	32-channel AMM with Gain Sharing Algorithm
Feedback Suppression	16 automatic filters per mix, 8 concurrent detectors
Frequency Response	20 Hz - 20 kHz, ±0.5 dB
Latency	<0.7ms Mic Input → Main L/R
Dimensions (H x W x D)	8.4" (213 mm) x 17.3" (440 mm) x 18.7" (476 mm)
Weight	22 lbs (10 kg)
Shipping Weight	27.8 lbs (12.6 kg)
