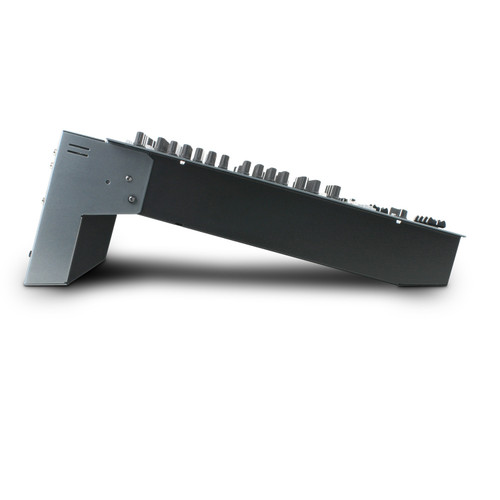

Allen & Heath Xone:464 Professional Club Mixer (Discontinued)

Allen & Heath Xone:464 Professional Club Mixer (Discontinued)

Name: Allen & Heath Xone:464 Professional Club Mixer (Discontinued)
Brand: Allen & Heath
SKU: AH-Xone-464
Price: 1799 USD
Availability: OutOfStock

Write a Review

Part #:

Xone:464

Model #:

Xone:464

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The Allen & Heath Xone:464 professional club mixer makes is possible for venues to depend on it for outstanding audio and reliability, whilst the renowned Xone analogue filters and 4-band asymmetric EQ make it an incredibly creative tool for DJ’s to enjoy. The 4 fully-featured mic/line inputs mean live performers can join the mix, adding a new dimension to the stunning feature set.

Description

As the first model in the range, the Xone:464 paved the way with superior sound and build quality never seen before in a DJ mixer. A dedicated club mixer, designed to please both club technicians and the performing DJ, its combination of versatility and fine craftsmanship mean it is still the first choice for venues where DJ’s and engineers are serious about their music.

It shares the same solid construction as Allen & Heath’s pro touring desks, so venues can depend on it for outstanding audio and reliability, whilst the renowned Xone analogue filters and 4-band asymmetric EQ make it an incredibly creative tool for DJ’s to enjoy. The 4 fully-featured mic/line inputs mean live performers can join the mix, adding a new dimension to the stunning feature set.

Features

4 fully-featured mono/mic performance channels with 100mm faders
6 dual stereo channels with RCA and TRS sources on each channel
2 independent outputs on XLR or TRS, with full metering
6 aux sends from every channel for monitors or FX sends
4 stereo, 2 mono zone outputs with rotary control
VCF system – 2 independent stereo filters with frequency and resonance control
4-band EQ with +6dB and -26dB cut
2 headphone outputs, split cue, mono sum button, booth output
P&G easy change professional VCA crossfader
Comprehensive booth monitor system
Sys-Link option to connect to other A&H mixers
Desk or 19” rack mount

Specifications

Connector Types
XLR connections	Pin 2 = hot (+) Pin 3 = cold (-) Pin 1 = GND
TRS input and output connections	Tip = hot (+) Ring = cold (-) Sleeve = GND
TRS insert connections	Tip = SEND Ring = RETURN Sleeve = GND
Input Connections
CH 1-4 in (XLR) Balanced XLR female	2k ohm; -60 to –20dBu PAD out,>10k ohm; -30 to +10dBu PAD in
CH 1-4 in (TRS) Balanced TRS jack	>10k ohm -30 to +10dBu
CH 5,6,9,10 in A RCA phono RIAA	47kohm/330pF 2 to 100mV
CH 7,8 in A RCA phono	>10k ohm -10 to +10dBu
CH 5,10 in B RCA phono	>10k ohm -10 to +10dBu
CH 6,7,8,9 in B Balanced TRS jack	>10k ohm -10 to +10dBu
EXT in Balanced TRS jack	> 10k ohm -10dBV (+4dBu option)
Inserts
CH 1-4 Unbalanced TRS jack SEND/RET	3k ohm 0dBu
MIX out 1,2 Unbalanced TRS jack SEND/RET	3k ohm -2dBu
Output Connections
DIR out 1-4 Impedance balanced TRS jack	0dBu
MIX out 1,2 (XLR) Balanced XLR male	+4dBu
MIX out 2 (RCA) RCA phono	-10dBV
MONO out (XLR) Balanced XLR male	+4dBu
MONO out (TRS) Impedance balanced TRS jack	-2dBu
AUX out 1-6 Impedance balanced TRS jack	-2dBu
LOCAL MON out Impedance balanced TRS jack	-2dBu
General
Headphones 1, 2 Tip = L Ring = R	30 to 600 ohm recommended
Maximum output level	+26dBu into >2k ohm load;+21dBu into >2k ohm load;+15dBu into >10k ohm load
Internal headroom	Channels +21dB;Mix to output +23dB
Peak indicators	Turn on 9dB before clipping
Meters	MIX1 / MONITOR Peak reading 12 led 3 colour
Frequency response	+0/-1dB 20Hz to 40kHz
Distortion	< 0.006% THD+noise measured at +14dBu 1kHz
Crosstalk	< 90dB Channel shutoff measured at 1kHz
Noise	Measured rms 22Hz to 22kHz
MIC EIN	-128dB referred to 150 ohm source
Residual output noise	-90dBu (-94dB S/N);-84dBu (-84dB S/N);-92dBu (-84dB S/N)
Mix noise, ch routed	-86dBu (-90dB S/N);-83dBu (-83dB S/N);-91dBu (-83dB S/N)
AC mains	100 to 240V AC @ 50/60Hz
Consumption	30W max
Mains fuse rating	100-240V AC T500mA 20mm
Desktop Dimensions	483mm (19”) x 192mm (7.6”) x 530mm (20.9”)
Rack mounted Dimensions	483mm (19”) x 444mm (17.5”) 10U x 135mm (5.3”)
Packed Dimensions	590mm (23.2”) x 260mm (10.2”) x 610mm (24”)
Weight	22 lbs (10kg)
Packed Weight	29 lbs (13kg)
