The Xone:S2 is a new analogue installation DJ mixer for use in clubs and bars, and by professional mobile DJ’s. It’s a 19” rack-mount 4U mixer featuring 4 stereo dual-input channels, 2 mono mic/stereo line channels, with a choice of linear or rotary VCA channel faders, along with the legendary Xone analogue filter and a host of other functions.
Uniquely, a USB audio interface is provided, enabling easy integration of digital media. The USB interface can be used for playback and recording to or from the Xone:S2 anda computer, or used with software to act like a hardware effects unit.

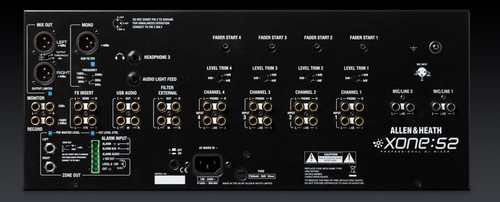

The Xone:S2 represents the ideal package for club installers, with many features designed to integrate it into a typical PA system, including an output limiter system that enables the installer to preset the maximum output level of the mixer. A dedicated alarm input mutes all music channels, and an alarm message audio input connection is provided. An additional stereo input (RCA) is accessible on the front panel - enabling guest DJs to patch in additional music sources.
| RJAA input sensitivity | 7-l00mV47K/330pF |
|---|---|
| Line Inputs | -I0dBto+l5dBRCA |
| Mic Sensitivity | -57 to -27dBu Balanced XLR |
| USB Audio In | 0dBu RCA |
| Alarm Input | 0dBu Phoenix connector |
| Mix Insert Return | -2dBu RCA |
| Channel Insert Return | 0dBu l/4"TRSJack |
| Filter External In | 0dBu RCA |
| Main Outputs | +4dBu XLR |
| Monitor | -2dBu RCA |
| Record | 8dBu RCA |
| Zone | +4dBu Balanced 1/4" TRS Jack |
| Mono | +4dBu Impedance Balanced XLR Sub Filter Range 30Hz—250Hz |
| USB Audio Out | 0dBu RCA |
| Mix Insert Send | -2dBu RCA |
| Filter External Out | 0dBu RCA |
| Channel Insert Send | 0dBu 1/4" TRS Jack |
| Frequency response Line in to Mix out | I 0Hz to 20kHz +/- OdB (-1.5dB @ 50kHz) |
| Distortion at I kHz Line in at +0Vu out | Typically < -0.05% Channel In to Mix out |
| Main Mix noise 22Hz—22kHz unweighted | |
| Residual Mix noise 22Hz—22kHz unweighted | |
| Equalization | +6dB to minus infinity (total kill) |
| Fader Shutoff | > -86 dBr |
| Dimensions (W x H x D) Mixer | 482 mm (19") x 177 mm (7") x 123 mm (4.8") |
| Dimensions (W x H x D) Packed | 600 mm (23.6") x 300 mm (I 1.8") x 250 mm (9.8") |
| Weight (Mixer) | 4.75 kg (10.5 lbs) |
| Weight (Packed) | 7.5 kg (16.5 lbs) |
