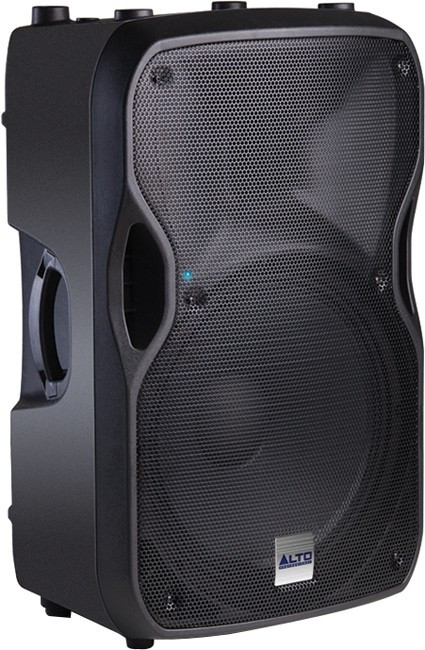

Alto TRUESONIC TS112A 800W 12" Loudspeaker (Discontinued)

Part #:
TS112A
Model #:
TS112A
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

The Alto TRUESONIC TS112A 12 inch Active Speaker has been designed with verstility and longevity in mind. It features a durable, lightweight polypropylene enclosure that is stand mountable for weekend gigs and flyable for more permanant installations.

Description

The Alto TRUESONIC TS112A 12 inch Active Speaker has been designed with verstility and longevity in mind. It features a durable, lightweight polypropylene enclosure that is stand mountable for weekend gigs and flyable for more permanant installations. What's more, it has a trapezoidal design which greatly decreases the resonance of the standing wave in the cabinet for a more true and exact sound reproduction. The TRUESONIC TS112A is the perfect solution for musicians and DJs on the move and halls, malls and houses of worship alike.

The TRUESONIC Series was designed from the ground up to be the most transparent loudspeaker money can buy. Rigorous testing and thousands of hours of listening have gone into making sure that what you pump into a TRUESONIC speaker is exactly what you get out. Everything you see (and some things you don't) – from internal signal path and components used to the sculpted cabinet and meticulously designed waveguide – was developed in service of the principle of accurate, transparent sound.

The drivers in the TRUESONIC TS112A are designed to make sure that virtually no energy is wasted. That translates to more of the power from the amplifier actually working to generate sound rather than heat, giving the speaker better real world performance than other speakers with comparable published specifications. The TRUESONIC TS112A offers a 12" LF driver (2" voice coil) and a 1" HF driver.

Every active Truesonic speaker benefits from the use of a Class D amplifier integrated into the cabinet. Class D amps are generally lighter than Class A and AB amplifier designs, and offer more than enough power to provide your performance with plenty of punch. The Truesonic TS112 delivers with 800 Watts of power and offers a balanced combo jack (XLR/TRS) input with level control. Class D amplifiers are also highly efficient and run cooler than other kinds of amps so the amp doesn't have to work as hard to deliver your mix.

Features

  • 800 Watt Class D power
  • 12" low frequency transducer, 1" neodymium driver
  • Mic/Line input with volume control, XLR output to link speakers
  • Lightweight, trapezoidal cabinet with handles and stand

Specifications

Power System Continuous-400W ( 335W LF Class D + 65W HF Class AB), Peak-800W (700W LF + 130W HF)
Frequency Response (-10dB) 52Hz-18KHz
Maximum SPL @ 1m 122dB Continuous/125dB Peak
Coverage ( HxV ) 80°/100°x 60° nominal
Transducer Low 12" Woofer, 2" voice coil
Transducer High 1" Neodymium Driver
Active Crossover 2kHz
Input Connector LINE-COMBO/ LINK-XLR-M Balanced (15kohm)
Input Level Line 0dBu
External Control Volume Control/ Power ON with Green LED/ Clip Limiter with Red LED/ Ground Lift
Power Supply AC-220/240V or AC-110/120 Volt with Switching Power Mode
Enclosure Construction Trapezoidal shape/ Floor Monitor facility/ Polypropylene Plastic Cabinet
Mounting Integrated Std. pole-mount/ two handle /two eyebolt point
Dimensions (W x L x H) 25.5" (647.7 mm) x 15" (381 mm) x 14.3" (363.22 mm)
Weight 35 lbs (15.88 kg)
