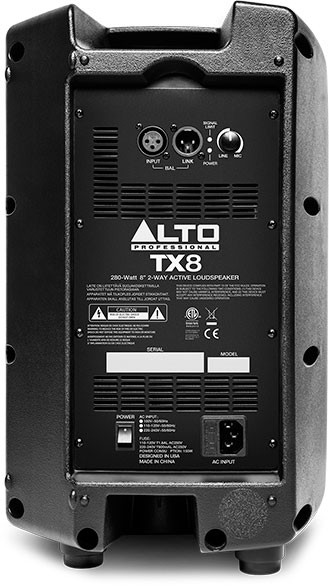

Alto TX8 8 inch 280W 2 Way Active Loudspeaker (Discontinued)

Part #:
TX8XUS
Model #:
TX8
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

The Alto TX8 8 inch 280W 2 Way Active Loudspeaker comes equipped with efficient, bi-amped Class D amplification that pumps out a generous 280W of peak power.

Description

Alto Professional began a live sound revolution with the top-selling TRUESONIC loudspeaker series. Now, Alto Professional has refined those same innovative technologies to create the remarkable TX Series. The TX Series loudspeakers were designed to the same performance standards as our award-winning TRUESONIC series—with quality components and accurate, transparent sound—but at a more affordable price.

Experience power, performance, and portability. TX8 comes equipped with efficient, bi-amped Class D amplification that pumps out a generous 280 Watts of peak power. An exacting electronic crossover ensures smooth frequency response from the 8” low-frequency driver and 1” high-frequency compression driver. Bass porting offers extended low-end response, while the steel grille adds extra protection.

Built to travel, the road-ready TX Series is both lightweight and portable. Trapezoid cabinet contouring makes either upright or wedge-monitor placement a snap. A pole-mount socket and a comfortable handle are conveniently built in. Create a custom setup using the Link output to chain multiple cabinets together. For the musician, DJ, or live-sound provider craving professional audio reproduction, The TX Series delivers impressive, dynamic sound night after night.

Features

  • 280 Watts peak / 140 Watts continuous power
  • Efficient Class-D power amp, bi-amplified
  • 8” LF woofer with 1.5” voice coil
  • 1" titanium diaphragm HF compression driver with 1” voice coil
  • Balanced XLR Mic/Line Input and Link Output
  • Precision electronic crossover
  • Integrated analog limiter and overload protection circuitry
  • Lightweight, portable design
  • Integrated 36mm speaker pole socket
  • Main or wedge monitor operation
  • Designed in the USA

Specifications

System Type 2-way active ported speaker
LF Driver 8” woofer, 1.5” voice coil
HF Driver 1” titanium diaphragm, 1” voice coil
Amplifier Class D SMPS, 280 watts peak
Horn Coverage 90°H x 45°V
Frequency Response (-3dB) 75 Hz – 20 kHz
Crossover Frequency 2.5 kHz
Max SPL 113 dB at 1m
Connector XLR Mic/Line Input and XLR Link Output
External Controls Volume control / Power ON with green LED / Clip Limiter with red LED
Electronic Protection Thermal / Overload / Analog Limiter / Compressor
Power Supply 110V-240V ~ 50/60Hz
Enclosure Construction Injection-molded polypropylene enclosure, multi-angle for main or monitor applications, metal grille, rubber feet, 1 handle on top
Mounting 36mm standard pole mount
Dimensions (H x W x D) 16.5" (420 mm) x 10.6" (270 mm) x 9.4" (240 mm)
Weight 12.2 lbs (5.53 kg)
