Anchor Audio ACL-BP Acclaim Basic Package (Discontinued)

Description

Details

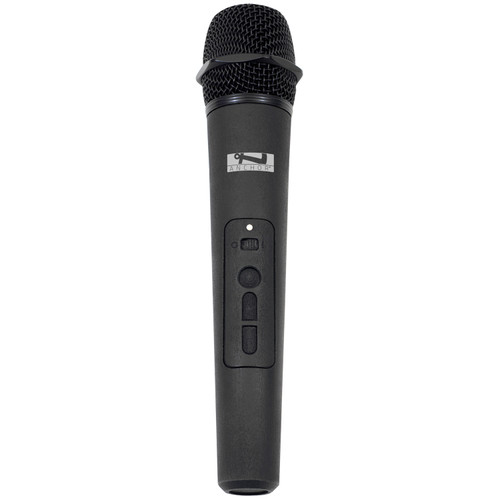

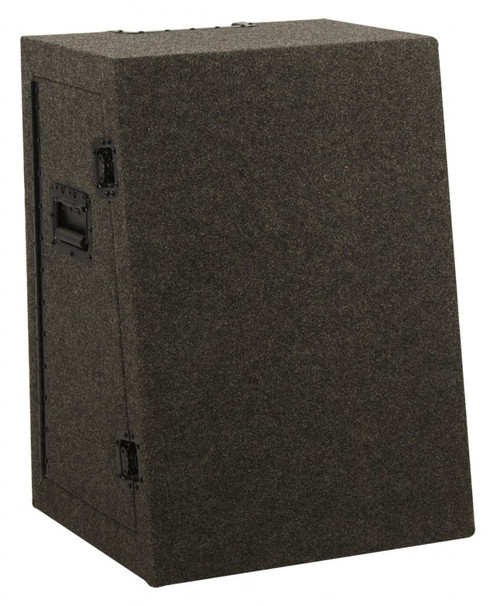

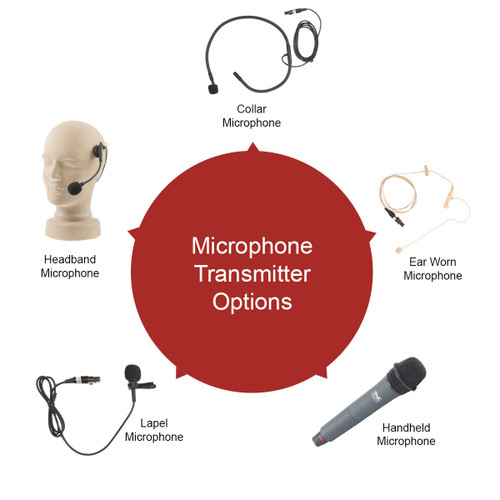

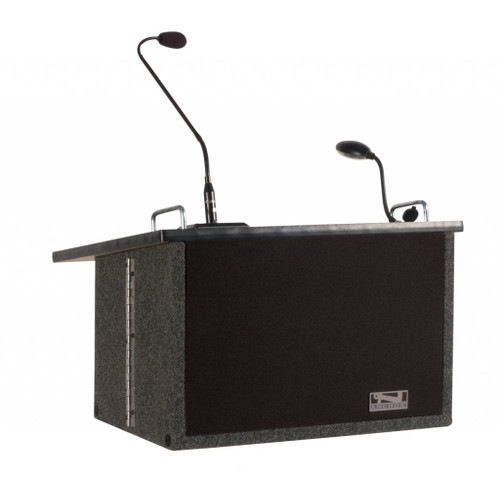

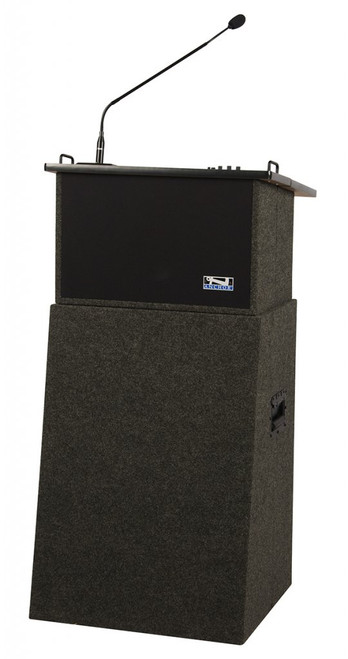

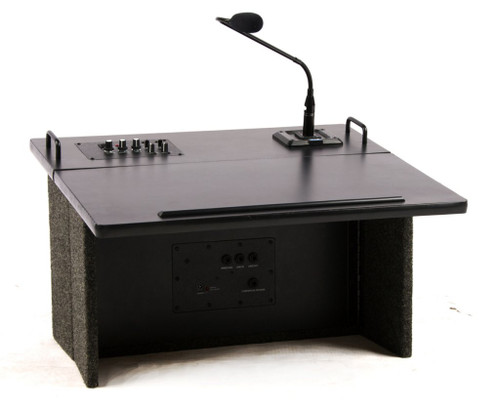

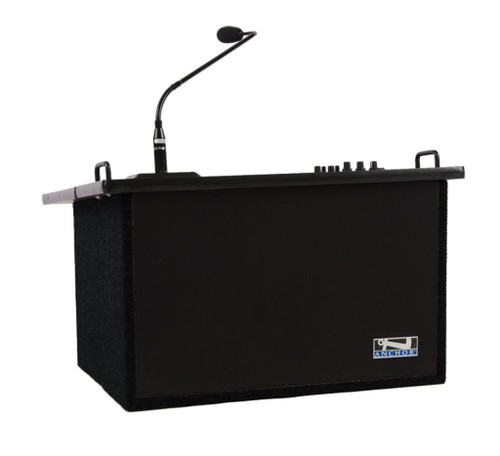

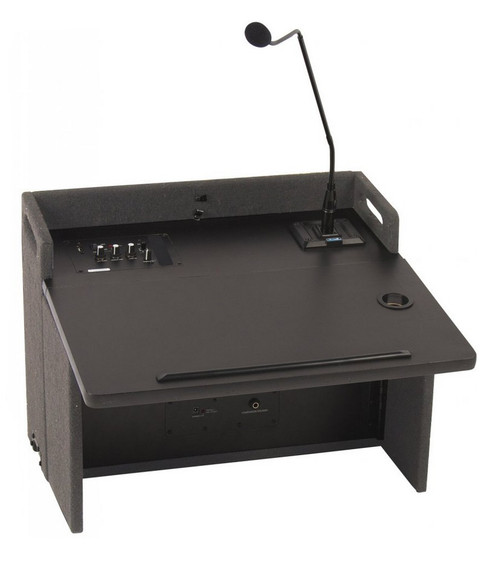

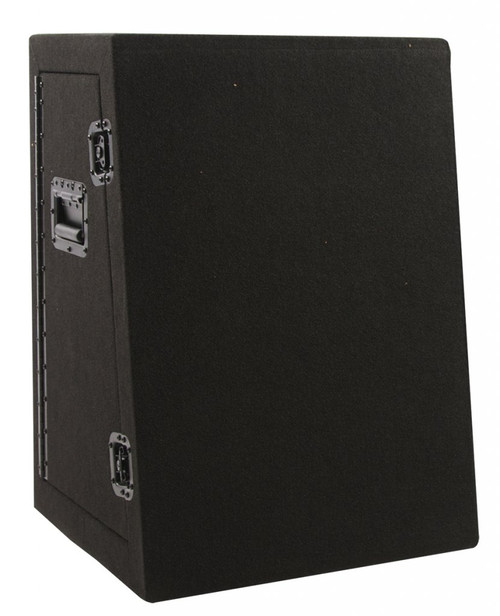

The Anchor Audio Acclaim Basic Package (ACL-BP) comes with a portable, sound lectern that is filled with features and benefits that outshine all the rest. It includes the ACL-8000U1 Lectern Top that has one built-in 16 channel wireless receiver and comes with your choice of wireless mic. The Lectern Top can be placed on top of the Lectern Base (also included) for a stand alone lectern. The Lectern Top can also be used alone as a tabletop lectern, by setting it upon a table or desk. The top has sides that fold in and it fits easily inside the base, which has wheels and a handle for easy transportation. It is loud, battery powered, and runs up to 7 hours on single charge. It comes with a gooseneck mic, has 1/4" input if you want to attach a wired mic, and it can reach crowds of 500+ people. Just wheel it into place and use it at your next school spelling bee, speech, city council meeting, or other indoor/outdoor event!

Features

Features

True AC/DC powered
113 dB of clear sound
22W amplifier
Reaches crowds up to 500+
Tabletop is lightweight - only 30 lbs.
High fidelity sound from high efficiency amp and full-range speaker
Built-in 16 channel UHF wireless receiver
Sensitive electret 24" gooseneck mic
1/4" input mic jack
1/4" line input jack
External speaker 1/4" output jack power companion speaker
Sealed, lead-acid batteries and built-in charger
Runs 7 hours on a charge using rechargeable batteries

Specification

Rated Peak Power	20 watts
Max SPL @ Rated Power	113 dB @ 1 meter
Frequency Response	60 Hz - 17 kHz
USB	5V 500mA
Battery	12 volt rechargeable, 9 AH
Charger (RC-6000)	18V DC/universal input (100Vac – 240Vac, 50 – 63Hz)
Inputs
Lectern Microphone	Lo-Z, balanced, phantom power, XLR
Wired Microphone	Lo-Z, unbalanced, 1/4”-phone
Line Input	Hi-Z, unbalanced, 1/4” phone
Outputs
Line (post fader)	Lo-Z, 1/4”-phone
Speaker Out	4 Ohm, unswitched, 1/4" phone, 20 W Max
Dimensions (H x W x D)
Base	30.5" (77.5 cm) x 21.125" (53.7 cm) x 20.5" (52 cm)
Lectern	15.75" (40 cm) x 21.125" (53.7 cm) x 8.5" (21.6 cm)
Weight
Base	42.5 lbs (19.3 kg)
Lectern	29.5 lbs (13.4 kg)
