- Description
Details

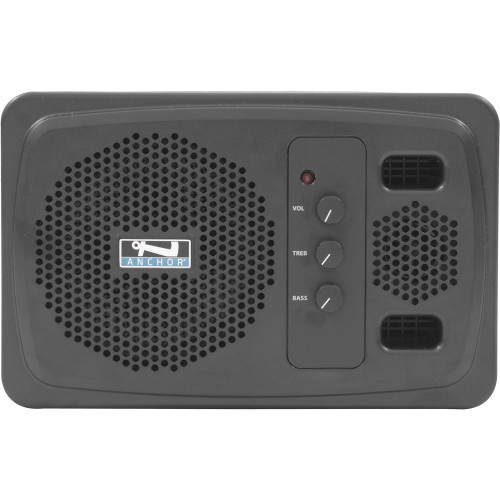

Anchor Audio AN-1000XU2+ 50W Powered Speaker Monitor
The AN-1000XU2+ is a professional-grade 50W powered speaker monitor designed for versatility and superior sound clarity. Equipped with built-in dual wireless microphone receivers, it allows for seamless integration of wireless microphones or belt packs, making it ideal for live events, corporate presentations, classrooms, and PA systems.
Featuring a balanced XLR input jack with selectable DIP switch settings, the AN-1000XU2+ supports both Lo-Z microphones and bridging line-level inputs, commonly used in pro-audio and broadcast applications. The speaker also provides 15V phantom power for condenser microphones, giving you flexible connectivity for a wide range of audio sources.
Adjustable volume, bass, and treble controls, along with the simple front-panel interface, ensure easy operation and precise sound customization. Compact, portable, and durable, the AN-1000XU2+ combines professional performance with ease of use, making it the perfect choice for reliable on-the-go sound reinforcement.
- Features
Features
- 50W powered speaker monitor with crystal-clear audio output
- Built-in dual wireless microphone receivers for convenience
- Balanced XLR input with selectable DIP switch settings
- 15V phantom power for condenser microphones
- Adjustable volume, bass, and treble for precise sound control
- Compatible with both Lo-Z microphones and line-level inputs
- Ideal for live events, classrooms, corporate presentations, and PA systems
- Specification
Rated Power Output (Watts) 50W AC Max SPL @ Rated Power 107 dB @ 1 meter Frequency Response 65 Hz - 20 kHz ± 3 dB AC Power Reqs. 110 - 125 VAC, 47/63 Hz, 50W max
Export: 208 - 240 VAC, 50/60 Hz 50W maxFuse Rating T 1.0A / 250V (internally mounted)
Export: T 0.5A / 250V (internally mounted)Power Inlet PC-2 AnchorLink Wireless Frequency 1.9 GHz AnchorLink Wireless Range 150’+ line of sight Bracket Mount Part Number SB-3BK+, SB-360BK+, RM-1BK+, or RM-12BK+ (sold separately) Stand Part Number SS-250 (sold separately) Balanced Input Microphone / line configurable, female XLR, switchable phantom power Line Inputs Hi-Z, unbalanced 1/4” phone & RCA Line Output Lo-Z, RCA, buffer isolated line level Speaker Output 8W, unswitched, 1/4” phone Dimensions (H x W x D) 9" (228.6 mm) x 8.5" (215.9 mm) x 5.5" (139.7 mm) Weight 6.5 lbs (2.9 kg) - Documents
Documents
