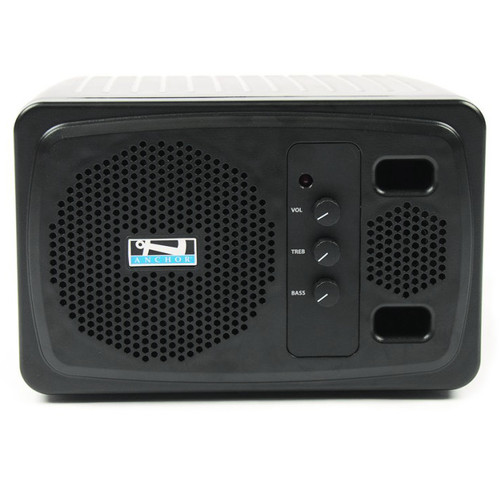

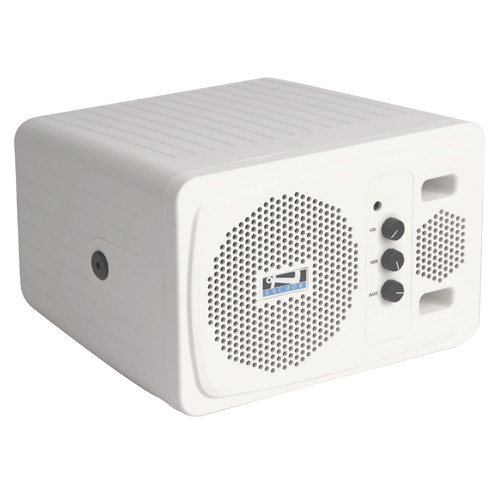

The Anchor Audio AN-135+ Speaker Monitor is the simplest solution on the install market. This basic system is lightweight, easy to use, and provides a powerful 103 dB of sound to fill the room with your voice. It is designed to project clear, intelligible speech for audiences up to 150+, and is also great for music. The only three inputs this system comes with are 1/4" line-in, and 3.5 mm line-in & line-out. It is not battery powered, and runs off of AC power only, when connected to a power source. The AN-135+ can be mounted on a stand, to the wall/ceiling, or placed on a shelf. Just switch it on, adjust your volume, treble and base, and you are ready to go. It's ideal for presentations, so teachers and corporate presenters often use it with a video projector, CD/DVD player, iPod, MP3, or PC. Use it in the classroom, conference room, studio, or theater.
- Features
Features
- AC Powered Only
- 103dB of Clear Sound
- 30W Amplifier
- 4.5” Woofer and 10mm Dome Tweeter
- Built-in bracket mount screws for easy installation (bracket with allen wrench sold separately)
- Mount on a stand, to the wall, or place on a shelf

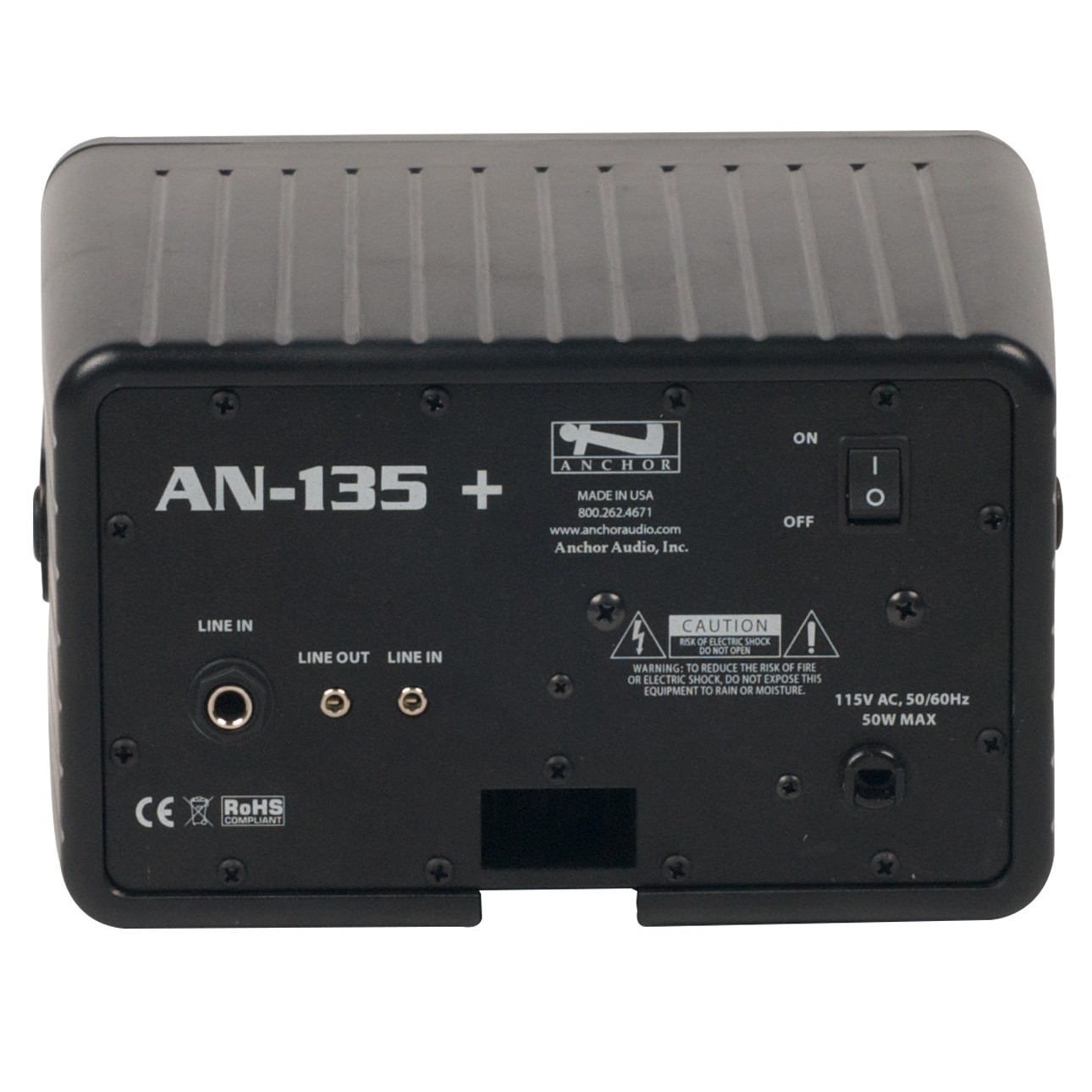

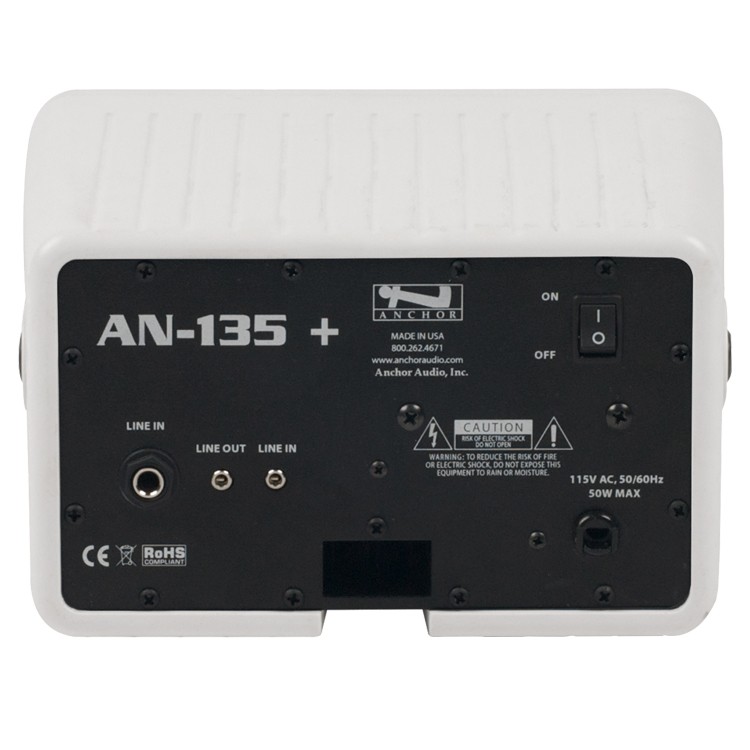

- Only Inputs has three inputs: 1/4" in, and 3.5 mm in/out
- Specification
Rated Power Output 30 Watts Max SPL @ Rated Power 103 dB @ 1 meter Frequency Response 65Hz - 18KHz ±3dB Speaker Type 4.5” woofer, 10 mm dome tweeter Line Out Jack Line level, 3.5 mm – stereo Line In Jack Line level, 3.5 mm – stereo & 1/4” phone – mono AC Power Requirements 100 - 240 VAC, 47/63 Hz (50W Max) Export Model 208 – 240 VAC, 50/60 Hz Fuse Rating T 1.0A / 250V Export Model T 0.5A / 250V (internally mounted) Dimensions (H x W x D) 5.25" (133.4 mm) x 8.4" (213.4 mm) x 9" (228.6 mm) Weight 3.5 lbs (1.58 kg) - Documents
