Anchor Audio BEA-BPDUAL Beacon Basic Package Dual (Discontinued)

Part #:
BEA-BPDUAL
Model #:
BEA-BPDUAL
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

The Beacon Basic Package is a battery-powered, portable line array sound system like no other on the market and comes with built-in Bluetooth and two 16 channel wireless receivers with your choice of wireless microphones.

Description

The Beacon Basic Package DUAL comes with the Beacon Line Array that has built-in Bluetooth, two built-in 16 channel wireless receivers with your choice of wireless microphones, and a built-in CD/MP3 combo player that accepts an SD Card, USB flash drive, or 3.5 mm input for an iPod.

The Beacon is a battery-powered, portable line array sound system like no other on the market!  The lightweight array tower has eight 4" neodymium speakers, and the base has three 8" subwoofers.  It stands about 6 feet tall and has a clean, full range of sound that spreads evenly over any large crowd without the need for a stand.   The compact enclosure has a storage bag for microphones and a collapsible handle with rolling wheels.  It operates 6-8 hours on a single charge and there is a charging LED bar indicator on the back. The Beacon has a USB port for charging an MP3/iPod and has two universal microphone input jacks. There is no stand needed, just roll it into place.

Applications: school functions, outdoor sporting events, political rallies, ceremonies, corporate events, sports, places of worship, military events, and more!



Just need one microphone?
Click here to see the Beacon Basic Package

Features

  • True AD/DC, 100/220V power supply
  • 150W AC mode / 125W DC mode
  • 120 dB of clear sound
  • Reaches crowds of 2500+
  • Two built-in 16 channel UHF wireless receivers
  • Lightweight array tower has eight 4" speakers
  • Base has three 8" subwoofers
  • Proprietary class D amplifier
  • Two universal input microphone input jacks
  • Bluetooth Capability
  • Built-in CD/MP3 Combo Player
  • Charging LED bar indicator
  • 5V USB charger
  • Nylon mesh storage bag
  • Durable enclosure case with wheels and retractable handle
  • UV treated/fade resistant case



Specifications

Rated Power Output 150 watts AC / 125 watts DC
Max SPL @ Rated Power 120 dB
Battery Two 12 V rechargeable, 9.0 AH
Full recharge approx 7 hrs
Frequency Response 60 Hz – 15 kHz ± 3dB
Line Output (post fader) isolated, 600 Ohm, 1/4” phone
AC Power Reqs. 100 – 240 VAC, 50/60 Hz, 300W max
USB 5V 500mA
Microphone Inputs
Lo-Z (1 KOhm) balanced, XLR 12 VDC condenser mic (phantom) power
Hi-Z (10 KOhm) unbalanced, 1/4” phone
Hi-Z (10 KOhm) unbalanced, 1/8” stereo
Line In unbalanced, stereo RCA
Sensitivity For Rated Output
Lo-Z Microphone -52 dBV (2.5 mVrms)
Hi-Z Microphone -43 dBV (7.5 mVrms)
Auxiliary (line) -14 dBV (200 mVrms
Phantom Power 36V
Dimensions Closed (H x W x D) 28.5” (72 cm) x 18” (45 cm) x 12.5” (31 cm)
Dimensions Opened (H x W x D) 71.5” (181 cm) x 18” (45 cm) x 12.5” (31 cm)
Weight 51 lbs (23 kg)
Shipping Weight 60 lbs (27.22 kg)

DOCUMENTS

System Includes

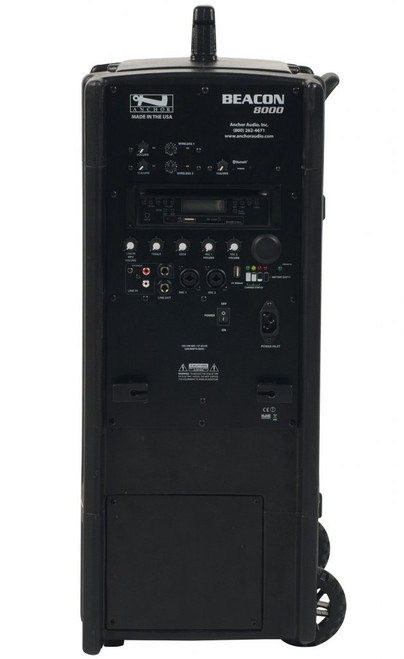

  • BEA-8000CU2 Line Array with Built-in CD/MP3 Combo Player and Two Wireless Receivers
  • Built-in Bluetooth
  • Choice of Two Microphones:

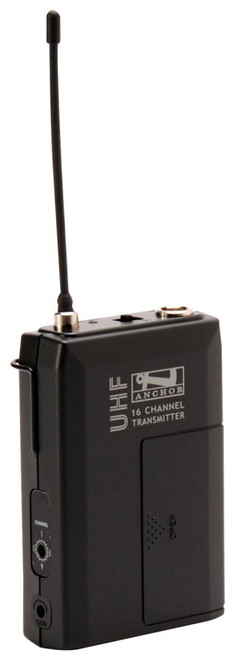

    • Collar Microphone (CM-60 with WB-8000 Belt Pack Transmitter)
    • Ear Worn Microphone (EM-TA4F with WH-8000 Belt Pack Transmitter)
    • Headband Microphone (HBM-TA4F with WH-8000 Belt Pack Transmitter)
    • Lapel Microphone (LM-60 with WB-8000 Belt Pack Transmitter)
    • Wireless Handheld Microphone (WH-8000)
