Anchor Audio CM-6W CouncilMAN Conference Microphone System 6 User Package with Wireless Microphone
Usually arrives in 5-9 business days.
The Anchor Audio CouncilMAN CM-6 conference sound system package is the easiest, portable conference system. Anchor Audio's portable conference system travels from the council chambers to community center with ease of setup and simplicity of use. The CouncilMAN™ is flexible to the demands of most room sizes and manages up to 11 microphones.
This Anchor Audio CouncilMAN CM-6 conference sound system package is for 6 users and is the easiest, portable conference system there is. It includes five Delegate Mics, and one Chairman Mic that can mute all of the Delegates if needed. It also includes one AN-100CM+ speaker amplifier that powers up to 11 conference mics, five 4 ft. XLR cables, and one 25 ft. XLR cable. It all comes in a sturdy cardboard carrying case. This system is very flexible and simple to use. It can travel from the council chambers to a community center with easy set-up. It's ideal for smaller rooms of 150 people or less. For larger spaces, just add a Liberty Platinum speaker to reach up to 1,500 people. No other system provides such excellent sound and speech quality.
Six conference mics daisy chain with standard XLR cables, the chairman mic can mute all delegate mics, no installation required. Immunity from mobile telephone interference.
| AN-100CM+ Console Speaker | |
|---|---|
| Rated Power Output | 30 watts |
| Max SPL @ Rated Power | 103 dB @ 1 meter |
| Frequency Response | 65 Hz – 18 kHz ± 3 dB |
| Speaker Type | 4.5" woofer, 10 mm dome tweeter Magnetically shielded |
| AC Power Requirements | 100 – 240 VAC, 50/60 Hz |
| Fuse Rating Export Model | T 1.0A / 250V (internally mounted) T 0.5A / 250V (internally mounted) |
| Line In | 3.5 mm |
| Line Out | Lo-Z, buffered, XLR and 1/4” Balanced |
| Line Output Level | -20 dBV (100 mVrms) |
| Enclosure Material | ABS Plastic |
| Dimensions (H x W x D) | 5.25" (13 cm) x 8.4"' (21 cm) x 9" (23 cm) |
| Weight | 8.5 lbs (3.8 kg) |
| CHM-100/ DEL-100 Microphone Base | |
| Power Requirement | +22 VDC @ 60 mA from pin 2 of daisy chain |
| Output Impedence | > 10 k Ohm |
| Phantom Power | 18V |
| Daisy Chain In/Out | Male and Female 3-pin XLR |
| CHM-100 Controls | Push to Talk, Volume and Mute Others |
| DEL-100 Controls | Push to Talk and Volume |
| Dimensions (H x W x D) | 1.75" (4.45 cm) x 5.8" (14.73 cm) x 6.5" (16.51 cm) |
| Weight | 0.90 lbs (0.41 kg) |

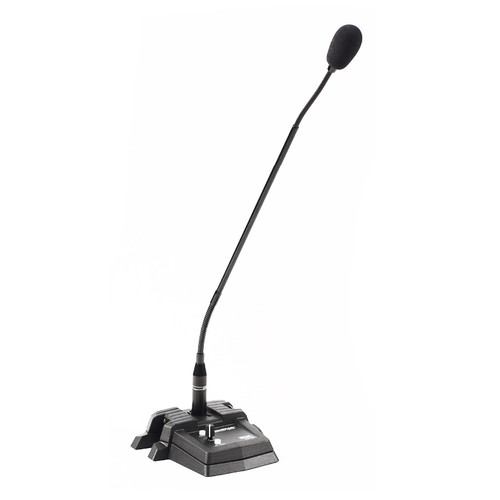

| LM-618 Gooseneck Microphone | |
| Pickup Pattern | Cardioid |
| Type | Electret Condenser |
| Phantom Power | 9 - 52 Volts DC |
| Impedence | 600 Ohm (balanced) |
| Response | 50 Hz - 18 kHz ±3dB |
| Sensitivity | -56 dB @ 1 kHz open circuit (0 dB = 1 V/ubar) |
| Dimensions (L x Dia) | 24" (60.96 cm) x 0.5" (1.27 cm) |
