Anchor Audio LIB-DP-AIR Liberty Deluxe AIR PA Package with Handheld Microphone (Discontinued)

By Anchor Audio

Anchor Audio LIB-DP-AIR Liberty Deluxe AIR PA Package with Handheld Microphone (Discontinued)

Name: Anchor Audio LIB-DP-AIR Liberty Deluxe AIR PA Package with Handheld Microphone (Discontinued)
Brand: Anchor Audio
SKU: ANCHOR-LIB-DP-AIR-HH
Price: 2960 USD
Availability: OutOfStock

Write a Review

Part #:

LIB-DP-AIR-HH

Model #:

LIB-DP-AIR

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

This Liberty Deluxe AIR Package from Anchor Audio includes a speaker (with Bluetooth capabilities, AIR wireless companion transmitter, and one wireless receiver), an AIR wireless companion speaker, and a wireless handheld microphone.

Description

Cables can snare. Upgrade to the AIR! The Liberty Platinum is the most popular Anchor Audio portable sound system, and the product to define the industry. Now with complete wireless capability, take your Liberty and Liberty AIR anywhere for double the sound coverage without the hassle of running cables between units. Use the Liberty AIR indoors and outdoors for school functions, corporate events, political rallies, military ceremonies, indoor and outdoor auditoriums, houses of worship, and more! With its rugged and durable polypropylene plastic enclosure, the Liberty Platinum is designed to perform in any weather.

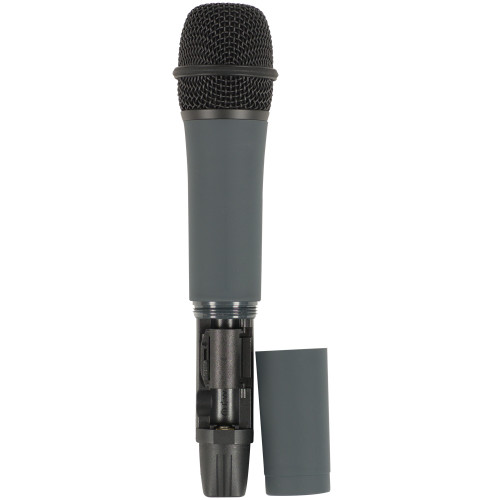

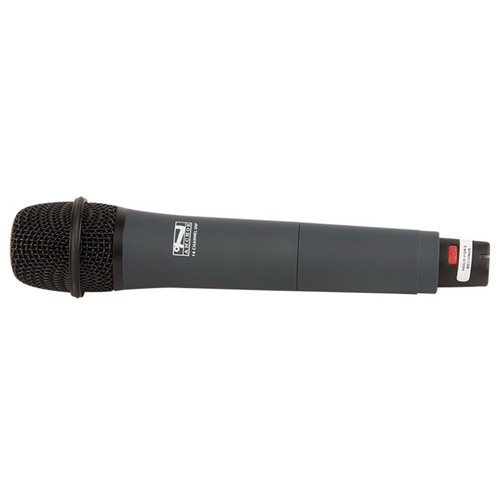

The included WH-8000 is a classic wireless handheld microphone with a sleek and lightweight design. With a 150' wireless range, it operates on 540 - 570 MHz frequency range and has 16 user-selectable wireless channels. The WH-8000 is powered by two AA batteries and operates approximately 6 - 8 hours.

Features

Reaches crowds up to 3,000+
117 dB of clear sound
125W AC mode / 100W DC mode
One built-in AIR wireless companion transmitter
One built-in AIR wireless receiver
Expandable to multiple AIR battery powered wireless companion speakers
Easily connects to Assistive Listening
ADA Compliant
Built-in rechargeable batteries operate 6 - 8 hours on a single charge
Alternate wired and wireless mode
External speaker output powers optional Liberty Platinum unpowered or AIR companion speaker

Specifications

Wireless Range	300’+ line of sight
AIR Frequency Range	902.000 - 928.000 MHz
Rated Power Output	125 watts AC / 100 watts DC
Max SPL @ Rated Power	117 dB
Battery	(2) 12V, lead acid rechargeable, 9.0 AH
Full Recharge	Approx 7 hrs
Frequency Response	60 Hz – 15 kHz ± 3dB
Line Output (Post Fader)	Isolated, 600 Ohm, 1/4" phone
AC Power Requirements	100 – 240 VAC~47-63 Hz, (250W max)
USB	5V 500mA
Microphone Inputs	(2) XLR: Lo-Z (1 kOhm), balanced, 12 VDC phantom power (2) 1/4" TS Phone Jacks: Hi-Z (10 kOhms), unbalanced
Line Inputs	(1) Stereo RCA, unbalanced (1) 3.5 mm stereo aux, unbalanced (1) 1/4", unbalanced
Outputs	Line / Post Fader: Lo-Z, 1/4" phone Speaker Output: 4-pole Neutrik Speakon connector
Sensitivity For Rated Output	Lo-Z Microphone -52 dBV (2.5 mVrms) Hi-Z Microphone -43 dBV (7.5 mVrms) Auxiliary (line) -14 dBV (200 mVrms) Phantom Power 36V
Speaker In	4-pole Neutrik Speakon jack
Speaker Dimensions (H x W x D)	22" (558.8 mm) x 14" (355.6 mm) x 11.5" (292 mm)
LIB-8000XU1 Speaker Weight	34.3 lbs (15.6 kg)
LIB-AIR Speaker Weight	34.1 lbs (15.5 kg)

DOCUMENTS

System Includes

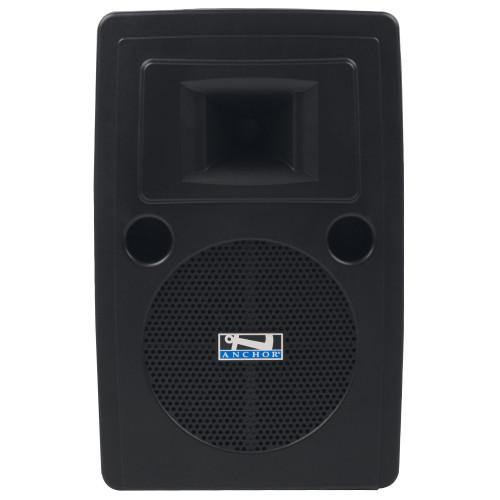

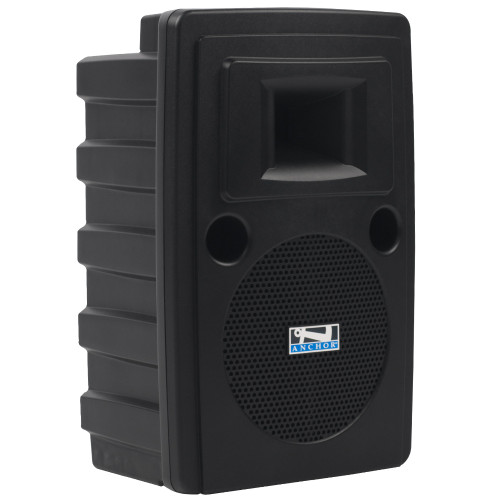

(1) Speaker with Bluetooth, AIR Wireless Companion Transmitter, and One Wireless Receiver (LIB-8000XU1)
(1) Liberty AIR Battery Powered Wireless Companion Speaker (LIB-AIR)
(1) Wireless Handheld Microphone (WH-8000)

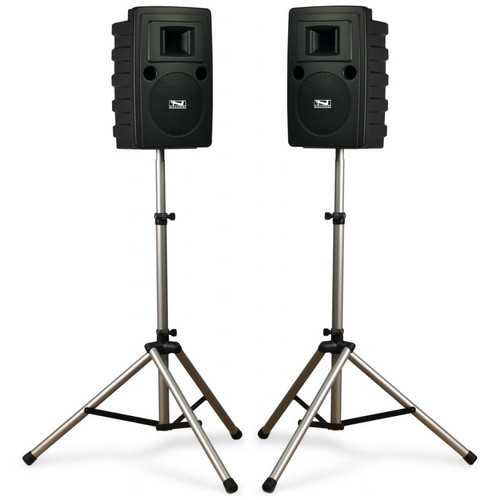

(2) Heavy Duty Speaker Stands (SS-550)
(1) Mini 3.5 mm Aux Cable for iPod or External Audio Source (MINI-ST)
