Anchor Audio LIB-DP Liberty Platinum Deluxe PA Package with Handheld Microphone (Discontinued)

By Anchor Audio

Anchor Audio LIB-DP Liberty Platinum Deluxe PA Package with Handheld Microphone (Discontinued)

Name: Anchor Audio LIB-DP Liberty Platinum Deluxe PA Package with Handheld Microphone (Discontinued)
Brand: Anchor Audio
SKU: ANCHOR-LIB-DP-HH
Price: 2512 USD
Availability: OutOfStock

Write a Review

Part #:

LIB-DP-HH

Model #:

LIB-DP

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

This Liberty Platinum Deluxe Package from Anchor Audio includes a speaker with built-in CD/MP3 combo, wireless receiver and Bluetooth capabilities, a companion speaker, and a wireless handheld microphone.

Description

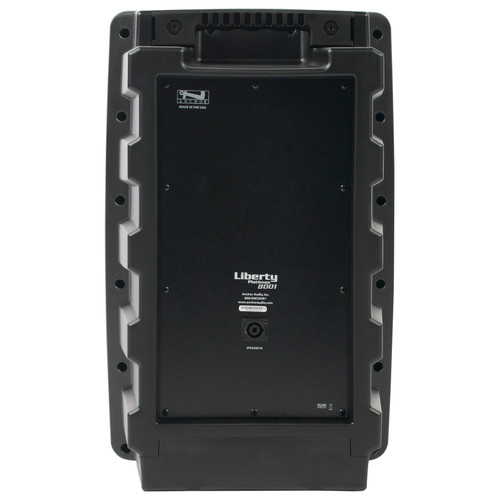

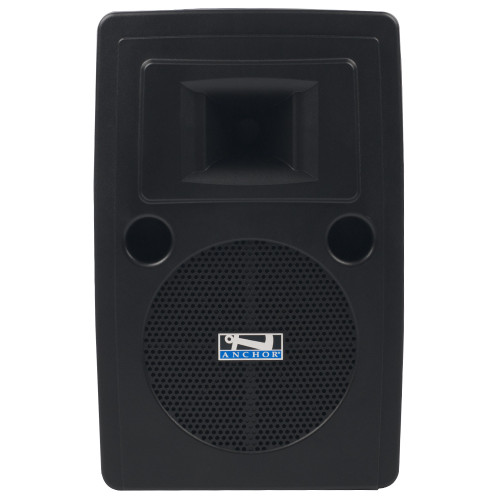

The Liberty Platinum Deluxe Package from Anchor Audio includes a LIB-8000CU1 speaker with built-in CD/MP3 combo, wireless receiver and Bluetooth capabilities, a LIB-8001 unpowered companion speaker and cable, a wireless handheld microphone, 2 SS-550 heavy duty speaker stand and aux cable. This portable sound system is designed with intelligibility, reliability, and simplicity in mind. This PA full-featured system covers a crowd of 3000 or more, providing clear voice amplification for any application. Use the Liberty indoors or outdoors for school functions, lecture halls, corporate events, political rallies, military ceremonies, indoor and outdoor auditoriums, houses of worship, and more! With its rugged and durable polypropylene plastic enclosure, the Liberty Platinum is designed to perform in any weather.

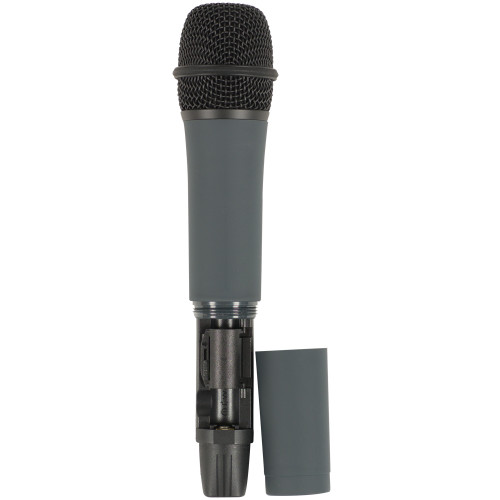

The included WH-8000 is a classic wireless handheld microphone with a sleek and lightweight design. With a 150' wireless range, it operates on 540 - 570 MHz frequency range and has 16 user-selectable wireless channels. The WH-8000 is powered by two AA batteries and operates approximately 6 - 8 hours.

Features

Reaches crowds up to 3,000+
117 dB of clear sound
125W AC mode / 100W DC mode
One built-in wireless receiver
Standard built-in Bluetooth with a line of sight range of 100'
Built-in CD/MP3 combo player with remote control
Two universal mic input jacks
3.5 mm AUX line input
Built-in rechargeable batteries operate 6 - 8 hours on a single charge
One 10" woofer and one ceramic compression driver
External speaker output powers optional Liberty Platinum unpowered companion speaker

Specifications

Rated Power Output	125 watts AC / 100 watts DC
Max SPL @ Rated Power	117 dB
Battery	(2) 12V, lead acid rechargeable, 9.0 AH
Full Recharge	Approx 7 hrs
Frequency Response	60 Hz – 15 kHz ± 3dB
Line Output (Post Fader)	Isolated, 600 Ohm, 1/4" phone
AC Power Requirements	100 – 240 VAC~47-63 Hz, (250W max)
USB	5V 500mA
Microphone Inputs	(2) XLR: Lo-Z (1 kOhm), balanced, 12 VDC phantom power (2) 1/4" TS Phone Jacks: Hi-Z (10 kOhms), unbalanced
Line Inputs	(1) Stereo RCA, unbalanced (1) 3.5 mm stereo aux, unbalanced (1) 1/4", unbalanced
Outputs	Line / Post Fader: Lo-Z, 1/4" phone Speaker Output: 4-pole Neutrik Speakon connector
Sensitivity For Rated Output	Lo-Z Microphone -52 dBV (2.5 mVrms) Hi-Z Microphone -43 dBV (7.5 mVrms) Auxiliary (line) -14 dBV (200 mVrms) Phantom Power 36V
Speaker Out	4-pole Neutrik Speakon jack
Speaker Dimensions (H x W x D)	22" (558.8 mm) x 14" (355.6 mm) x 11.5" (292 mm)
LIB-8000CU1 Speaker Weight	38 lbs (17 kg)
LIB-8001 Speaker Weight	20.5 lbs (9.30 kg)

DOCUMENTS

System Includes

(1) Speaker with Built-in CD/MP3 Combo Player, Wireless Receiver and Built-in Bluetooth (LIB-8000CU1)
(1) Unpowered Companion Speaker (LIB-8001)
(1) Wireless Handheld Microphone (WH-8000)
(2) Heavy Duty Speaker Stands (SS-550)
(1) Companion Speaker Cable - 50 ft (SC-50NL)
(1) Mini 3.5 mm Aux Cable for iPod or External Audio Source (MINI-ST)
