Anchor Audio LIB-DPDUAL Liberty Platinum Dual Deluxe PA Package with 1 Handheld and 1 Lapel Microphone

Home /
Anchor Audio LIB-DPDUAL Liberty Platinum Dual Deluxe PA Package with 1 Handheld and 1 Lapel Microphone (Discontinued)

Description

Details

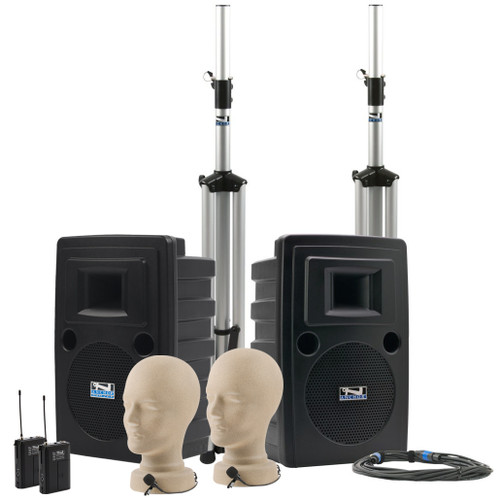

This Liberty Platinum Deluxe Package from Anchor Audio includes a speaker with built-in CD/MP3 combo, 2 wireless receivers and Bluetooth capabilities, a companion speaker, 1 handheld and 1 wireless lapel microphone.

Features

Features

Reaches crowds up to 3,000+
117 dB of clear sound
125W AC mode / 100W DC mode
Two built-in wireless receivers
Standard built-in Bluetooth with a line of sight range of 100'
Built-in CD/MP3 combo player with remote control
Two universal mic input jacks
3.5 mm AUX line input
Built-in rechargeable batteries operate 6 - 8 hours on a single charge
One 10" woofer and one ceramic compression driver
External speaker output powers optional Liberty Platinum unpowered companion speaker

Specification

Rated Power Output	125 watts AC / 100 watts DC
Max SPL @ Rated Power	117 dB
Battery	(2) 12V, lead acid rechargeable, 9.0 AH
Full Recharge	Approx 7 hrs
Frequency Response	60 Hz – 15 kHz ± 3dB
Line Output (Post Fader)	Isolated, 600 Ohm, 1/4" phone
AC Power Requirements	100 – 240 VAC~47-63 Hz, (250W max)
USB	5V 500mA
Microphone Inputs	(2) XLR: Lo-Z (1 kOhm), balanced, 12 VDC phantom power (2) 1/4" TS Phone Jacks: Hi-Z (10 kOhms), unbalanced
Line Inputs	(1) Stereo RCA, unbalanced (1) 3.5 mm stereo aux, unbalanced (1) 1/4", unbalanced
Outputs	Line / Post Fader: Lo-Z, 1/4" phone Speaker Output: 4-pole Neutrik Speakon connector
Sensitivity For Rated Output	Lo-Z Microphone -52 dBV (2.5 mVrms) Hi-Z Microphone -43 dBV (7.5 mVrms) Auxiliary (line) -14 dBV (200 mVrms) Phantom Power 36V
Speaker Out	4-pole Neutrik Speakon jack
Speaker Dimensions (H x W x D)	22" (558.8 mm) x 14" (355.6 mm) x 11.5" (292 mm)
LIB-8000CU2 Speaker Weight	44 lbs (20 kg)
LIB-8001 Speaker Weight	20.5 lbs (9.30 kg)
