Inside the Design
The MegaVox 2 AIR X1 Deluxe portable sound system is designed for outdoor events, athletic fields, marching band rehearsals, public address announcements, emergency communication, and other applications requiring powerful, portable voice reinforcement. This complete package includes one MEGA2-XU2 main speaker with built-in Class 1 Bluetooth, an Anchor AIR wireless transmitter, and an integrated dual-channel AnchorLink wireless microphone receiver; one MEGA2-AIR powered wireless companion speaker; two SS-550 heavy-duty speaker stands; and a choice of one AnchorLink wireless microphone. The main speaker transmits audio to the companion through Anchor AIR technology, allowing the two speakers to be positioned apart for expanded coverage without running an audio cable between them. Both speakers feature integrated carrying handles, rechargeable batteries, and speaker stand mounting sockets for convenient transportation and setup.
Each MegaVox 2 speaker features a high-efficiency re-entrant horn driver powered by a 20W amplifier, delivering a maximum sound pressure level of 119 dB at 1 m and a frequency response of 400 Hz - 10 kHz (±3 dB). This voice-oriented design provides strong projection for announcements, instructions, and public address applications while also supporting music playback. Anchor AIR wireless connectivity provides a range of 300+ ft (91 m) under ideal line-of-sight conditions, allowing the MEGA2-AIR companion to reproduce audio transmitted from the MEGA2-XU2 main speaker. Each speaker contains its own 12V, 5 Ah rechargeable lithium iron phosphate battery, with Anchor Audio specifying 7+ hours of playtime per charge and approximately 5 hours for a full recharge. Actual battery runtime depends on operating volume, audio content, and usage conditions. The included SS-550 heavy-duty stands feature adjustable height and leg width for stable speaker positioning and improved sound projection.
The MEGA2-XU2 main speaker combines built-in Bluetooth audio streaming, two 1/4" wired microphone inputs, a 1/4" line input, a 1/4" post-fader line output, and an integrated AnchorLink dual-channel wireless microphone receiver. The receiver operates in the 1.9 GHz DECT frequency band and supports up to two compatible AnchorLink wireless microphones, although this AIR X1 package includes a choice of one. Available configurations include a WH-LINK wireless handheld microphone, an HBM-LINK headband microphone with WB-LINK beltpack transmitter, an LM-LINK lapel microphone with WB-LINK beltpack transmitter, or a CM-LINK collar microphone with WB-LINK beltpack transmitter. The included microphone transmits audio directly to the main speaker, which then sends the audio program wirelessly to the MEGA2-AIR companion. The AnchorLink microphone system provides a wireless range of 300+ ft (91 m) under ideal line-of-sight conditions. The WH-LINK and WB-LINK transmitters operate using two AA batteries, with approximately 6 - 8 hours of operation using fresh batteries. Separate microphone and audio input level controls allow users to balance speech and music for the application.
Sound System Features
- Complete MegaVox 2 AIR X1 Deluxe portable sound system with two battery-powered speakers and one selectable wireless microphone
- MEGA2-XU2 main speaker features built-in Class 1 Bluetooth, Anchor AIR wireless transmitter, and dual-channel AnchorLink wireless microphone receiver
- MEGA2-AIR powered wireless companion speaker receives audio from the main speaker without requiring an interconnecting audio cable
- Anchor AIR wireless speaker connection supports a range of 300+ ft (91 m) under ideal line-of-sight conditions
- Each MegaVox 2 speaker features a high-efficiency re-entrant horn driver
- Each speaker provides 20W rated amplifier output and up to 119 dB SPL at 1 m
- Frequency response of 400 Hz - 10 kHz (±3 dB) for voice-oriented sound reinforcement
- Built-in rechargeable lithium iron phosphate battery in each speaker provides 7+ hours of playtime under manufacturer-specified conditions
- Approximately 5-hour speaker battery recharge time
- Class 1 Bluetooth on the main speaker supports wireless audio streaming from compatible devices
- Integrated AnchorLink dual-channel receiver supports up to two compatible wireless microphones
- Includes a choice of one WH-LINK handheld, HBM-LINK headband, LM-LINK lapel, or CM-LINK collar wireless microphone configuration
- Headband, lapel, and collar microphone options include a compatible WB-LINK beltpack transmitter
- AnchorLink wireless microphone operation uses the 1.9 GHz DECT frequency band with a range of 300+ ft (91 m) under ideal line-of-sight conditions
- WH-LINK handheld and WB-LINK beltpack transmitters operate using two AA batteries with approximately 6 - 8 hours of runtime
- Two 1/4" wired microphone inputs, one 1/4" line input, and one 1/4" line output on the main speaker
- Built-in signal alert function on the main speaker for attention-getting announcements
- Two SS-550 heavy-duty speaker stands with adjustable height and leg width
- Integrated carrying handles and speaker stand sockets for portable setup
- Anchor Audio 6-4-2 warranty coverage for speaker systems, rechargeable speaker batteries, and microphones and accessories
About the System Components
Anchor Audio MEGA2-XU2 MegaVox 2 Speaker with Bluetooth, AIR Transmitter, and Dual Wireless Receiver

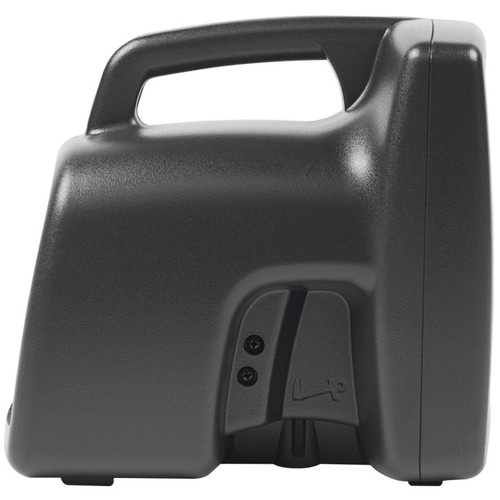

The Anchor Audio MEGA2-XU2 is a battery-powered portable PA speaker equipped with built-in Class 1 Bluetooth, an Anchor AIR wireless transmitter, and an integrated dual-channel AnchorLink wireless microphone receiver. Its high-efficiency re-entrant horn driver delivers strong voice projection with 20W rated output, a maximum SPL of 119 dB at 1 m, and a frequency response of 400 Hz - 10 kHz (±3 dB). The built-in AnchorLink receiver operates in the 1.9 GHz DECT frequency band and supports up to two compatible wireless microphones, while the Anchor AIR transmitter sends audio wirelessly to compatible AIR companion speakers within a 300+ ft (91 m) line-of-sight range. The MEGA2-XU2 also features two 1/4" wired microphone inputs, a 1/4" line input, a 1/4" post-fader line output, a signal alert function, and independent audio level controls. An integrated 12V, 5 Ah lithium iron phosphate battery provides 7+ hours of playtime under manufacturer-specified conditions. The rugged enclosure includes a carrying handle and speaker stand socket for portable applications.
Anchor Audio MEGA2-AIR MegaVox 2 AIR Wireless Companion Speaker
The Anchor Audio MEGA2-AIR is a powered wireless companion speaker designed to receive audio from compatible Anchor AIR transmitter-equipped sound systems, including the MEGA2-XU2. It features a high-efficiency re-entrant horn driver, 20W rated amplifier output, and a maximum sound pressure level of 119 dB at 1 m. The companion receives the main speaker's audio program over the Anchor AIR wireless connection, providing additional sound coverage without requiring a speaker cable between the two units. The AIR connection supports a range of 300+ ft (91 m) under ideal line-of-sight conditions, with matching wireless channel settings on the transmitter and companion receiver. The MEGA2-AIR contains its own rechargeable 12V, 5 Ah lithium iron phosphate battery for 7+ hours of playtime under manufacturer-specified conditions. Its integrated carrying handle and stand mounting socket allow the speaker to be positioned independently to extend coverage across outdoor and indoor venues.
Anchor Audio AnchorLink Wireless Microphone Options

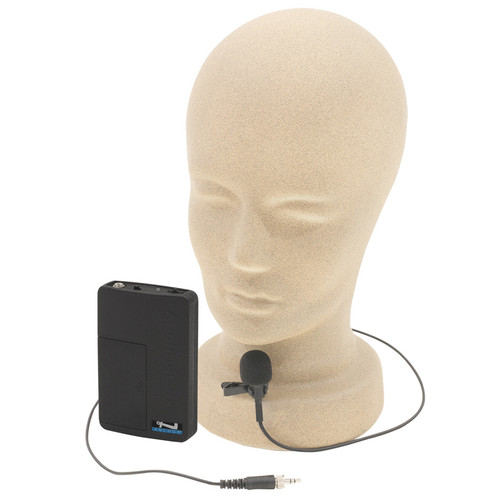

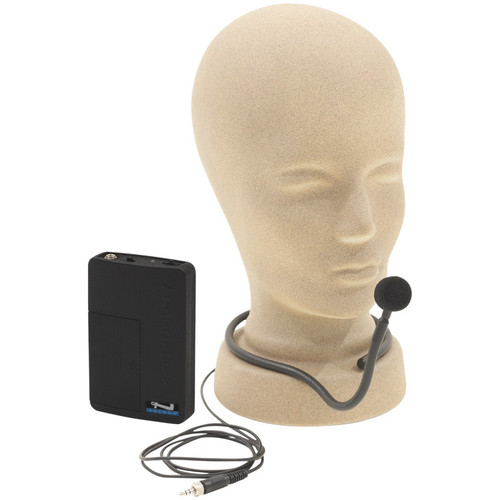

The MegaVox 2 AIR X1 Deluxe package includes a choice of one AnchorLink wireless microphone configuration to suit different speaking and performance requirements. The WH-LINK is a handheld wireless microphone with an integrated transmitter for announcements, presentations, and public address applications. The HBM-LINK headband microphone is designed for hands-free use, with a microphone element positioned near the mouth to follow the speaker's head movements. The LM-LINK lapel microphone clips discreetly to clothing for presentations and spoken-word applications, while the CM-LINK collar microphone features a flexible, adjustable design that can be positioned beneath a collared shirt. Each headband, lapel, or collar microphone option includes one WB-LINK beltpack transmitter with a compatible 3.5 mm microphone connection. The WH-LINK and WB-LINK operate using two AA batteries, provide approximately 6 - 8 hours of operation with fresh batteries, and communicate with the MEGA2-XU2's integrated AnchorLink receiver over a 1.9 GHz DECT wireless connection. The system includes one selected microphone configuration, with the built-in receiver capable of supporting a second compatible AnchorLink microphone if added separately.
