Inside the Design
The MegaVox 2 System 4 is a portable, battery-powered public address system designed for marching band rehearsals, athletic fields, sporting events, outdoor assemblies, military training, emergency announcements, and other applications requiring clear voice projection over large areas. Featuring one Anchor Audio MEGA2-U4 MegaVox 2 speaker with built-in Class 1 Bluetooth and two dual AnchorLink wireless microphone receivers, an SS-550 heavy-duty speaker stand, and a choice of four wireless microphones, this system provides convenient sound reinforcement for multiple speakers and presenters without requiring external wireless receivers. Anchor Audio rates the MegaVox 2 for audiences of approximately 1,000 people, depending on the environment and coverage requirements.
The MEGA2-U4 delivers 20W of rated power in both AC and battery operation, producing a maximum SPL of 119 dB at 1 meter with a frequency response of 400 Hz to 10 kHz (±3 dB). Its high-efficiency re-entrant horn driver provides strong, focused speech projection for announcements, instructions, and public address applications. The lightweight enclosure features an integrated carrying handle and speaker stand socket, while the included SS-550 heavy-duty speaker stand provides adjustable height and leg width for convenient elevated placement.
The MegaVox 2 features a built-in 12V, 5 Ah lithium iron phosphate (LiFePO4) rechargeable battery, providing 7+ hours of operation depending on usage conditions. The included RC-2 charger provides convenient battery recharging, with approximately five hours required for a full charge. Built-in Class 1 Bluetooth allows wireless audio streaming from compatible devices, while two integrated dual AnchorLink receivers operate in the 1.9 GHz DECT frequency band with automatic frequency management and a wireless microphone range of 300ft or more under ideal line-of-sight conditions. Together, the receivers support up to four compatible wireless microphones simultaneously.

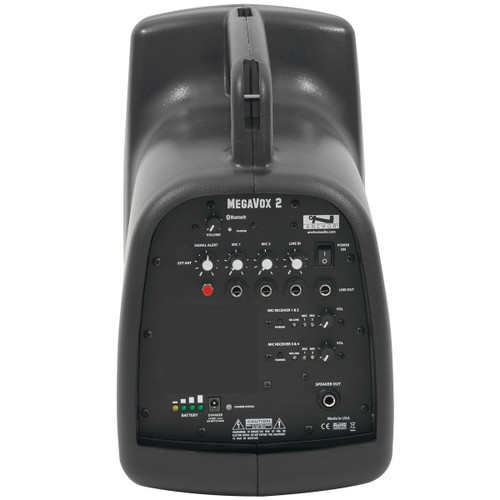

For additional connectivity, the MEGA2-U4 includes two unbalanced 1/4" wired microphone inputs, a 1/4" line input for compatible external audio sources, and a 1/4" line output for connecting additional audio equipment. A separate 1/4" external speaker output can power an optional MegaVox 2 wired companion speaker, sold separately. Independent input level controls provide convenient adjustment of connected audio sources, while the built-in signal alert function helps attract attention before important announcements.
Choose from seven wireless microphone configurations featuring four WH-LINK handheld microphones, four HBM-LINK headband microphones, four LM-LINK lapel microphones, four CM-LINK collar microphones, or mixed configurations combining two handheld microphones with two headband, lapel, or collar microphones. Headband, lapel, and collar microphone options include the required WB-LINK wireless beltp ack transmitters. All seven configurations provide four wireless microphones for simultaneous operation with the MEGA2-U4's integrated AnchorLink receivers.
The WH-LINK handheld microphones and WB-LINK beltpack transmitters each operate using two AA alkaline batteries and provide approximately 6–8 hours of operation with fresh batteries, according to Anchor Audio's individual product specifications. Both transmitter types feature adjustable volume and mute controls. The MEGA2-U4 does not include an Anchor AIR transmitter; wireless transmission to Anchor AIR companion speakers requires a compatible transmitter-equipped model.
The MegaVox 2 System 4 is backed by Anchor Audio's 6-4-2 warranty, providing six years of coverage for the speaker system, four years for the rechargeable battery, and two years for wireless microphones and peripheral products, subject to the manufacturer's warranty terms.
Sound System Features
- Complete portable PA system for marching bands, athletic fields, sporting events, military training, emergency announcements, and outdoor public address applications
- Includes one Anchor Audio MEGA2-U4 MegaVox 2 speaker, one SS-550 heavy-duty speaker stand, and a choice of four AnchorLink wireless microphones
- High-efficiency re-entrant horn driver provides powerful, focused voice projection for large outdoor audiences
- 20W rated amplifier output in both AC and battery operation
- Maximum SPL of 119 dB at 1 meter for clear, high-output speech reinforcement
- Designed to reach crowds of approximately 1,000 people under suitable conditions
- Frequency response of 400 Hz to 10 kHz (±3 dB)
- Built-in Class 1 Bluetooth for wireless audio streaming from compatible devices
- Two integrated dual AnchorLink receivers support up to four simultaneous wireless microphones
- Choice of four AnchorLink wireless handheld, headband, lapel, or collar microphones in seven available configurations
- 1.9 GHz AnchorLink wireless microphone technology with automatic frequency management
- Wireless microphone range of 300ft or more under ideal line-of-sight conditions
- Built-in 12V, 5 Ah LiFePO4 rechargeable battery provides 7+ hours of operation, depending on usage conditions
- Includes an RC-2 battery charger with approximately five-hour battery recharge time
- Two 1/4" wired microphone inputs for compatible additional microphones
- 1/4" line input and line output for connecting compatible external audio equipment
- 1/4" external speaker output supports an optional wired MegaVox 2 companion speaker
- Built-in signal alert function with adjustable level control
- Independent audio input level controls for convenient operation
- Integrated carrying handle and speaker stand socket for portable setup
- Includes an Anchor Audio SS-550 heavy-duty black speaker stand with adjustable height and leg width
- WH-LINK handheld microphones and WB-LINK beltpack transmitters provide approximately 6–8 hours of operation using two AA alkaline batteries each
- Anchor Audio 6-4-2 warranty provides six years of speaker system coverage, four years for the rechargeable battery, and two years for wireless microphones and accessories
About the System Components
Anchor Audio MEGA2-U4 MegaVox 2 Portable PA Speaker with Bluetooth and Two Dual Wireless Microphone Receivers

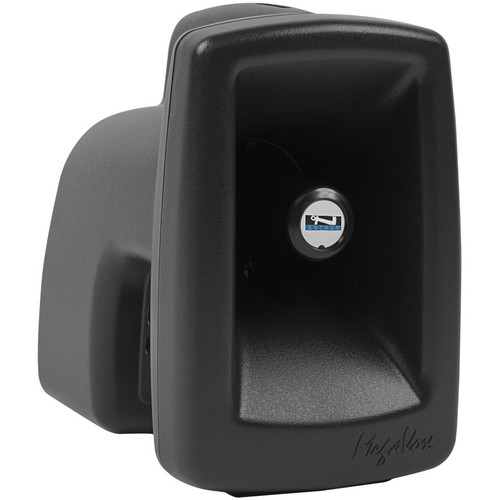

The Anchor Audio MEGA2-U4 MegaVox 2 is a compact, battery-powered portable public address speaker designed for clear voice amplification in large indoor and outdoor spaces. Featuring a high-efficiency re-entrant horn driver, 20W rated AC/DC output power, a maximum SPL of 119 dB at 1 meter, and a 400 Hz to 10 kHz frequency response (±3 dB), the MegaVox 2 delivers focused speech reinforcement for marching bands, athletic fields, schools, public safety applications, and outdoor events. Its built-in Class 1 Bluetooth receiver supports wireless audio streaming, while two integrated dual AnchorLink receivers allow up to four compatible wireless microphones to operate simultaneously in the 1.9 GHz DECT frequency band. The speaker includes a rechargeable 12V, 5 Ah LiFePO4 battery with 7+ hours of operation and an RC-2 charger for convenient recharging. Two 1/4" wired microphone inputs, a 1/4" line input, a 1/4" line output, and a separate external speaker output provide flexible connectivity. A built-in signal alert, carrying handle, battery status indicator, and speaker stand socket support convenient operation and transportation. The MEGA2-U4 weighs approximately 13 lbs and measures 14" (356 mm) H x 8.5" (216 mm) W x 13" (330 mm) D.
Choice of Four Anchor Audio AnchorLink Wireless Microphones

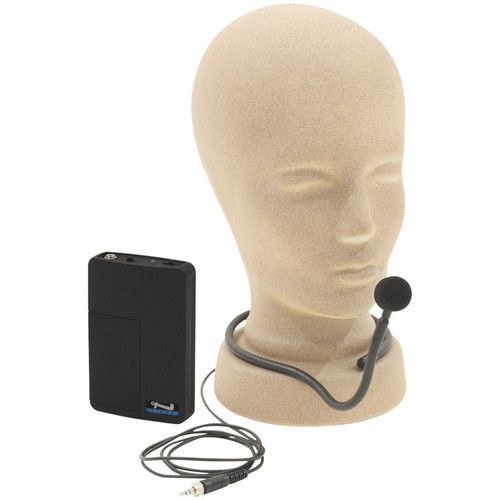

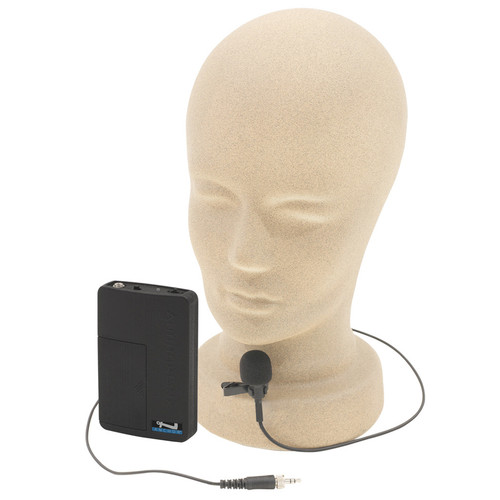

The MegaVox 2 System 4 includes a choice of four Anchor Audio AnchorLink wireless microphones in seven configurations to accommodate a variety of speaking and hands-free applications. The four WH-LINK handheld microphone package (512400) provides traditional handheld operation for announcements and public speaking. The four HBM-LINK headband microphone and WB-LINK beltpack package (512450) provides hands-free operation for instructors, coaches, and marching band directors, while the four LM-LINK lapel microphone and beltpack package (512460) offers a discreet clip-on option. The four CM-LINK collar microphone and beltpack package (512470) provides an alternative wearable microphone configuration. Mixed packages combine two WH-LINK handheld microphones with two HBM-LINK headband microphone sets (512425), two LM-LINK lapel microphone sets (512430), or two CM-LINK collar microphone sets (512435), each with the required WB-LINK beltpack transmitters. All seven configurations use AnchorLink 1.9 GHz wireless technology with automatic frequency management and an operating range of 300ft or more under ideal line-of-sight conditions. WH-LINK handheld microphones and WB-LINK beltpack transmitters each require two AA alkaline batteries and provide approximately 6–8 hours of operation with fresh batteries. Both transmitter types feature convenient volume and mute controls.
