ArchiTech SE-LCRSf Kevlar Series Dual 5.25" 2-Way In-Wall Loudspeaker
ArchiTech SE-LCRSf Kevlar Series Dual 5.25" 2-Way In-Wall Loudspeaker

By ArchiTech Speakers

ArchiTech SE-LCRSf Kevlar Series Dual 5.25" 2-Way In-Wall Loudspeaker

Write a Review
Part #:
SE-LCRSf
Model #:
SE-LCRSf
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL
The ArchiTech SE-LCRSf is an excellent choice for custom installation applications where high quality music reproduction is required and rugged construction is appreciated. Its lightness is perfect for providing great detail and musicality.

Description

The Kevlar material used in the ArchiTech Kevlar series is an exceptional choice for high performance woofers. Its incredible strength enables low distortion music reproduction, while its lightness provides great detail and musicality. And it is amazingly durable for long life and environmental stability. Kevlar is 5 times as strong as steel of the same weight.

These unique properties have enabled Kevlar to become a favorite material for applications as varied as bullet-proof vests, automotive parts, ropes for the Mars Pathfinder mission - and for the ArchiTech Series - cones for superb woofers.

The ArchiTech Kevlar Series is an excellent choice for custom installation applications where high quality music reproduction is required and rugged construction is appreciated. The Lifetime Limited Warranty is one indication of just how robust this family of loudspeakers really is.

Features
  • Woven Kevlar woofers with butyl rubber surrounds
  • Industry leading superior retro-ring mounting system
  • Magnetic, frameless, micro-perforated, vibration-free grille
  • High temperature Polyimide voice coils
  • Phase plug pole piece extensions
  • Polyswitch overdrive protection
  • Orient vertically or horizontally
  • Sold and shipped individually
  • 12 dB/octave crossover
  • IR Knockouts

Specifications
Frequency Response 45Hz - 20kHz ± 3 dB
Power Handling 50 watts nom. 100 max.
Sensitivity 91dB 1 watt / 1 meter
Tweeter 1" pivoting textile soft dome tweeter
Frameless Grille Magnetically Attached, Micro-Perforated - MG-LCRSf
Impedance 8 ohms nominal
Pre-construction Bracket Pre-construction bracket: RIB-LCR
Overall Dimensions (W x H) 9" x 15-3/4"
Cut-out Dimensions (W x H x D) 7-7/8" x 14-7/16" x 3-1/2"

Related Products

ArchiTech SE-525LCRSf Premium Series Dual 5.25" 2-Way In-Wall Loudspeaker ArchiTech SE-525LCRSf Premium Series Dual 5.25" 2-Way In-Wall Loudspeaker

ArchiTech SE-525LCRSf Premium Series Dual 5.25" 2-Way In-Wall Loudspeaker

Part of the ArchiTech Premium series, the SE-525LCRSf offers excellent price/performance. The SE-525LCRSf is a frameless, in-wall, dual 5.25” affordable LCR home theater solution. Far-forward woofer...
MSRP: $337.95
$210.02

Usually arrives in 5-9 business days.

MSRP: $337.95
$210.02
Add to Cart The item has been added
Sold Out
ArchiTech SE-694KE 5.25" 2-Way Kevlar Series In-Wall Loudspeaker - Pair (Discontinued) ArchiTech SE-694KE 5.25" 2-Way Kevlar Series In-Wall Loudspeaker - Pair (Discontinued)

ArchiTech SE-694KE 5.25" 2-Way Kevlar Series In-Wall Loudspeaker - Pair (Discontinued)

The ArchiTech SE-694KE 5.25 inch 2-way Kevlar Series In-Wall Loudspeaker is an excellent choice for custom installation applications where high quality music reproduction is required and rugged...
MSRP: $249.95
$177.48

Usually arrives in 5-9 business days.

MSRP: $249.95
$177.48
Sold Out
ArchiTech SE-691E 5.25" 2-Way Premium Series In-Wall Loudspeaker - Pair (Discontinued) ArchiTech SE-691E 5.25" 2-Way Premium Series In-Wall Loudspeaker - Pair (Discontinued)

ArchiTech SE-691E 5.25" 2-Way Premium Series In-Wall Loudspeaker - Pair (Discontinued)

The SE-691E 5.25 inch 2-way Premium Series In-Wall Loudspeaker is an excellent choice for custom installation applications where high quality music reproduction is required and rugged construction is...
MSRP: $149.95
$117.28

Usually arrives in 5-9 business days.

MSRP: $149.95
$117.28
Sold Out

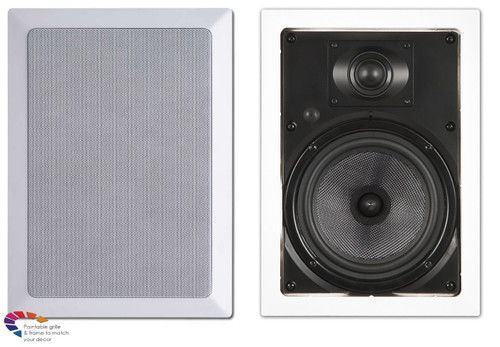

ArchiTech SE-790KE 6.5" 2-Way Kevlar Series In-Wall Loudspeaker - Pair (Discontinued) ArchiTech SE-790KE 6.5" 2-Way Kevlar Series In-Wall Loudspeaker - Pair (Discontinued)
