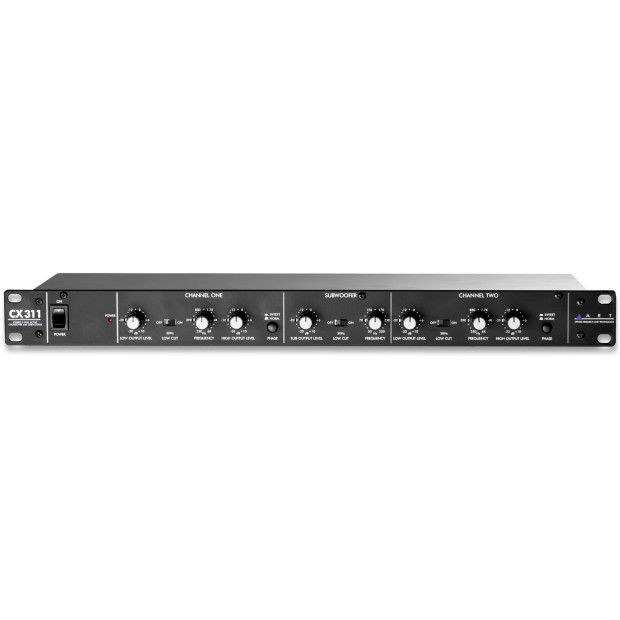

ART CX311 2-Way Stereo Crossover with Subwoofer Out

ART CX311 2-Way Stereo Crossover Network with Subwoofer Out

The CX311 two-way stereo crossover network has an additional subwoofer output for low-end frequency reinforcement. It employs 24dB/octave state-variable, Fourth-order Linkwitz-Riley filters that guarantee properly phased outputs at all frequencies which is optimal for the proper acoustic summing of common signals from adjacent drivers in the crossover region.

• Each channel features independent high and low output level controls and a crossover frequency rotary control which covers a wide range (250 hz to 6 khz)
• All three outputs have a 30-cycle low-cut switch to eliminate low-end rumble
• Subwoofer features an independent output level and rotary control for frequencies in the 50 hz to 250 hz range

• Stereo two-way crossover
• Subwoofer output
• Fourth-order Linkwitz-Riley filters (24dB / octave state-variable)
• Independent high and low output level controls
• Crossover frequency rotary control (250hz to 6khz)
• 30 cycle low cut switch
• Independent output level and rotary control (50hz to 250hz)
