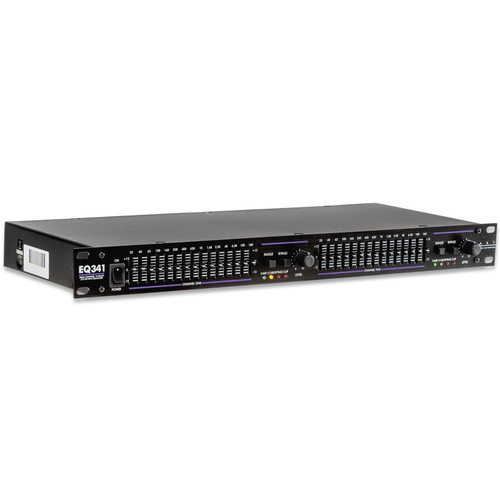

ART EQ341 Dual Channel 15 Band 2/3 Octave Graphic Equalizer
ART EQ341 Dual Channel 15 Band 2/3 Octave Graphic Equalizer
ART EQ341 Dual Channel 15 Band 2/3 Octave Graphic Equalizer

By ART Pro Audio

ART EQ341 Dual Channel 15 Band 2/3 Octave Graphic Equalizer

Write a Review
Part #:
EQ341
Model #:
EQ341
MSRP: $242.99
$159.99
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Adding to cart… The item has been added
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL
The ART EQ341 graphic equalizer is a compact and versatile audio device with four bands of equalization, precise sliders, and a wide frequency range. It allows fine-tuning of audio, eliminating unwanted frequencies and enhancing sound quality.

Description

ART EQ341 Dual Channel 15-Band 2/3 Octave Graphic Equalizer

The ART EQ300 Series of graphic equalizers have been designed and engineered to extremely high standards for audio performance and functionality. These innovative, high-quality equalizers are perfect for virtually any audio application where precision frequency tailoring, reliable performance, rugged design, and extremely silent processing is important. Rugged construction and solid audio performance make these equalizers particularly well suited to fixed installation as well as touring live sound systems.

The ART EQ 300 Series Applications:

  • May be used in a variety of applications such as live sound, recording studios, instrument racks as well as any conventional fixed installation environment
  • The equalizer can be used wherever modification of the frequency contour of a sound is needed
  • The graphic equalizer is a powerful tool for solving a number of audio problems and creating interesting sound textures
  • Patch the EQ between your mixing console and power amps to allow you to alter the overall mix to better match your environment
  • Use the EQ between your monitor mixer and monitor power amps to aid in the removal of feedback-inducing frequencies
  • Patch into a channel insert to EQ one channel or track individually
  • Run your instrument directly into the equalizer to enhance its sound before reaching a power amplifier or instrument amplifier.
  • Patch into effects loop of an instrument amplifier or between a preamp and power amp to have precise control over the complete sound

    • Features
    • Dual channel 15-band graphic equalizer
    • Balanced XLR, active balanced 1/4", and unbalanced RCA input and output connectors
    • 20mm center detented frequency band sliders
    • Designed for years of continuous, reliable performance
    • Constant-Q filtering
    • +/- 6dB or +/-12dB level adjustments
    • Independent level and bypass controls per channel
    • Rugged all steel construction
    • One year warranty

    Specifications
    Channel Separation >50dB
    Controls Power On/Off Switch; L/R Filter Range Switch L/R Bypass Switch; L/R Level Control; Ground Lift
    Filter Type Constant Q - 3% center accuracy
    Frequency Bands 2x15, 2/3 octave, ISO spacing
    Frequency Response 20Hz to 20kHz, +0.5dB
    Indicators 6dB/12dB Range LEDs; Bypass and Clip LEDs
    Input Impedance 20k ohms (bal), 15k ohms (unbal)
    Input/Output Connections Active balanced XLR and 1/4" TRS {XLR pin 2/ 1/4" tip = Hot (+)} Unbalanced RCA
    Maximum Input Level +22dBm
    Maximum Output Level +18dBm (bal), +22dBm (unbal)
    Output Impedance
    Signal to Noise Ratio -94dB
    Slider Travel 20 mm w/ positive center detent
    Total Harmonic Distortion 0.01%
    Power (Switchable) 95-130VAC, 50/60Hz
    Power Consumption 12 watts
    Range +/-6dB or +/-12dB selectable
    Dimensions (H x W x D) 1.75" (44.45 mm) x 19" (483 mm) x 8.5" (215.9 mm)
    Weight 4.5 lbs (2.5 kg)
