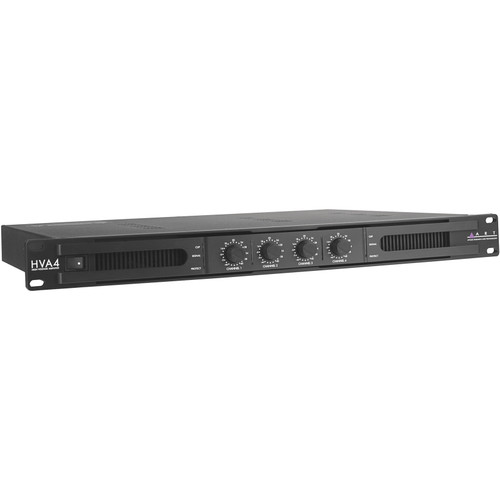

ART HVA4 70V/100V 4-Channel Installation Amplifier - 4 x 270W / 2 x 300W
The ART HVA Series 1 and 4 are class-D installation amplifiers. They are suitable for both 70/100V line installations (selectable through dip-switches). Each channel has its own gain control and LED indicators (signal, clip and protection). The input and output connections are made through Euroblock connectors. The amplifiers are a 1U rack 19-inch size is very appropriate for many types of installations, taking advantage of its multichannel design.
- Features
Features
- High current switching power allowing high power output with low noise and low distortion
- Short circuit, thermal and power on/off muting protection
- Built-in limiter
- Euroblock input and output
- Front mounted gain controls for easy access
- Signal, Clip protect, and Power LED indicators to monitor performance
- Disable Amplifier Outputs remotely
- Priority, remote test trigger
- Remote Failure Status indicator
- 4-channel installation amplifier
- 70/100V line operation
- Power output (70/100V): 4x300W
- 1 U rack 19-inch size
- Switching power, class-D amplifier
- Specification
Dimensions (H x W x D) 1.73" (44 mm) x 19" (483 mm) x 14.17" (360 mm) Weight 13.67 lbs (6.2 kg) - Documents
