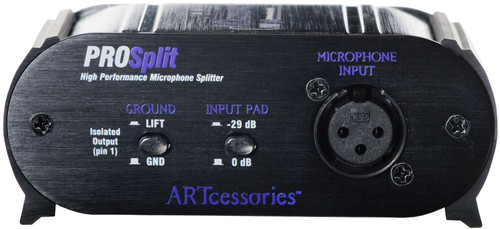

The ART ProSplit Transformer Isolated Mic Splitter provides one direct output and one transformer isolated output from a single microphone. Applications include sending the direct output to the main or Front-of-House mixer, with the second isolated output being sent to a monitor or recording mixer. The direct output passes phantom power from the main mixer to the microphone for use with condenser microphones.
The ProSplit includes a ground-lift switch on the isolated output to reduce noise due to ground loops between connected equipment. For versatility the ProSplit also features an attenuator pad switch on the input that can be used to alternately connect a preamplified (line-level) signal to the two microphone-level ProSplit outputs.
| Frequency Response | 20 Hz To 20k Hz, ±0.25 dB @ -15 dBu-3 dB @ Approximately 165k Hz |
|---|---|
| Total Harmonic Distortion | |
| Phase Response | |
| Input Impedance | >1.1k Ohms @ 1k Hz (Typical Driving Source Impedance Is 150 Ohms) |
| Output Impedance | |
| Common Mode Rejection Ratio | >105 dB @ 60 Hz / >80 dB @ 3k Hz |
| Voltage Insertion Loss | Approximately 2 dB @ 1k Hz |
| Maximum Input Level For 1% Thd | -1.4 dBu @ 20 Hz / +3.5 dBu @ 30 Hz /+9.4 dBu @ 50 Hz |
| Dimensions | 1.85" (47 mm) x 4.6" (117 mm) x 3.5" (89 mm) |
| Weight | 0.9 lbs (0.4 kg) |
