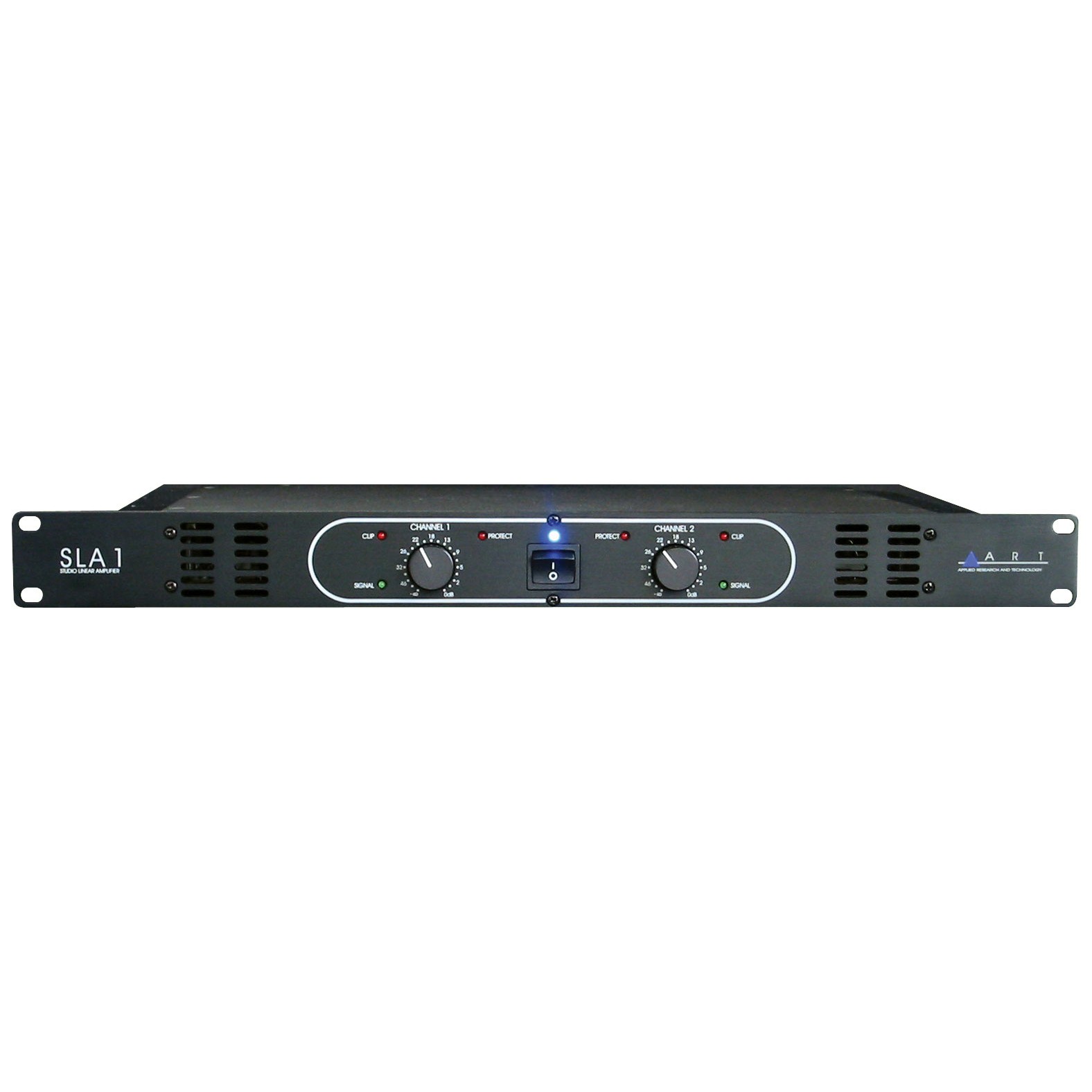

The SLA-1 Studio Linear Amplifier is a robust yet compact power amplifier designed for studio or even select live applications. It has been designed and engineered to provide clean, quiet power and excellent sound with ultra-low noise and distortion.
Rated at 100 watts rms/channel @ 8 ohms (130 watts rms/channel @ 4ohms), with a frequency response from 10 Hz to 40 kHz; it is perfect for professional, project and home studios. Capable of delivering 260 Watts when bridged mono into an 8 ohm load, the SLA-1 can easily move out of the studio and into any live rig or installation as an ideal monitor amplifier or zone amp solution.
The SLA-1 has been designed to deliver in the most demanding audio applications. Housed in an aluminum and steel single space 19-inch rackmount chassis, the SLA-1 uses a proven toroidal transformer design for unmatched long-term reliability. The SLA-1 features SmartFan, an advanced, thermal dependent fan assisted convection cooled system. The SmartFan system is dependent upon the internal ambient temperature of the unit, and runs at high or low levels depending on the amplifier's cooling needs. The XLR and 1/4-inch TRS balanced inputs as well as multi-way output binding posts ensure the SLA-1 can be quickly and easily tied in to any system without modification. A simple to install tamper proof cover is included.
| Input Connections | XLR (balanced), 1/4" TRS (balanced/unbalanced) |
|---|---|
| Output Connections | Multi-Way Binding Post |
| Input Impedance | XLR, ¼" 44k ohms (balanced), 22k ohms (unbalanced) |
| Input Sensitivity | 1V for Full Power Output into 8 ohms |
| Stereo Output Power, 8 ohms | 100 Watts RMS per Channel |
| Stereo Output Power, 4 ohms | 130 Watts RMS per Channel |
| Stereo Output Power, 16 ohms | 55 Watts RMS per Channel |
| Stereo Output Power, 5.5 ohms | 114 Watts per Ch, 25V line, unbalanced, direct |
| Bridged Output Power, 8 ohms | 260 Watts RMS mono |
| Bridged Output Power, 16 ohms | 175 Watts RMS mono |
| Bridged Output Power, 28 ohms | 175 Watts mono, 70V line, balanced, direct |
| Minimum Load Impedance, Stereo | 4 ohms (normal operation) , stable to 2 ohms |
| Minimum Load Impedance, Mono | 8 ohms (normal operation) , stable to 4 ohms |
| CMRR | >60dB (typical @ 1kHz) |
| Frequency Response | 10Hz to 40kHz, +/- .5dB |
| Hum and Noise | >100dB below clipping |
| Total Harmonic Distortion (THD) | |
| Slew Rate | >20V/uS |
| Damping Factor | >100 |
| Transformer Type | Toroidal |
| Power Requirements | 120VAC 60Hz 600 WATTS (max.) |
| Dimensions (H x W x D) | 1.75" (44.45 mm) x 19.0" (482.6 mm) x 9.5" (241.3 mm) |
| Weight | 13.2 lbs (6 kg) |
