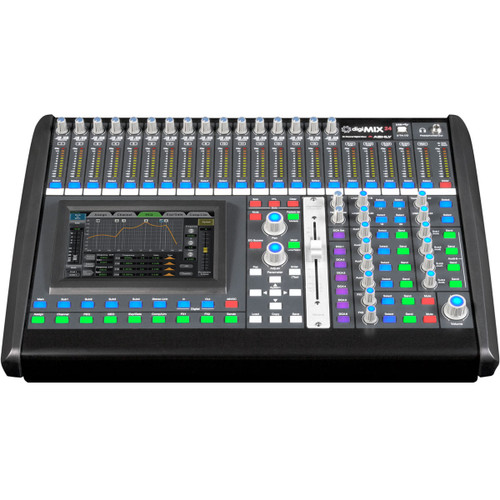

| General |
| ADC Dynamic Range |
110dB, Unweighted |
| Internal Processor |
32-Bit Floating Point |
| Sample Rate |
48kHz |
| DAC Dynamic Range |
106dB, Unweighted |
| ADC/DAC Bit Depth |
32-Bit |
| Audio Interface Module |
Dante™, USB Multi-channel (Optional) |
| Software |
Windows®, Mac®, iPad®, EZ-Mode |
| Microphone Input |
| Frequency Response to Main Output |
20Hz – 20kHz 0/-1.5dB |
| Distortion (THD&N) to Main Output |
|
| Equivalent Input Noise |
-126dBu, Unweighted, 20Hz – 20kHz, 150 Ohm Source |
| Gain (Trim) |
0 dB – +50dB |
| Maximum Input Level |
+20dBu |
| Phantom Power |
+48VDC, +0/-4V, Assignable to Channels 1-16 |
| Line InputBalanced, 75k Ohm Input Impedance |
| Frequency Response to Main Output |
20Hz – 20kHz at 0dBu, 0/-1.5dB |
| Distortion (THD&N) to Main Output |
|
| Gain (Trim) |
-20dB – +30dB |
| Maximum Input Level |
+20dBu |
| TRS InsertUnbalanced, Tip = Send, Ring = Return |
| Maximum Output Level |
+20dBu, 120 Ohm Source Impedance |
| Maximum Input Level |
+20dBu, 5.0k Ohm Input Impedance |
| Stereo Line Input(17–18, 19–20) Balanced (2 Stereo Pair)27k Ohm Input Impedance |
| Frequency Response to Main Output |
20Hz – 20kHz, ±0.5dB |
| Distortion (THD&N) to Main Output |
|
| Gain |
-∞ to +10dB |
| Input Level (Max) |
+20dBu |
| Tape L/RInput Unbalanced RCA,10k Ohm Input Impedance |
| Frequency Response to Main Output |
20Hz – 20kHz, ±0.5dB |
| Distortion (THD&N) to Main Output |
|
| Gain |
-∞ to +10dB |
| Input Level (Max) |
+10dBu |
| USB 2-Track I/O |
| Connector Type |
USB Type B |
| Frequency Response to Main Output |
20Hz – 20kHz, ±0.5dB |
| Distortion (THD&N) to Main Output |
|
| Gain |
-∞ to +10dB |
| Input/Output Level (Max) |
+15dBu = Full Scale Digital |
| Maximum Output Levels |
| Main Outputs (Max) |
Balanced XLR and TRS Phone Jack, +20dBu, 240 Ohm Source Impedance |
| AUX 1–4 Outputs |
Pseudo-Balanced TRS Phone Jack, +20dBu, 240 Ohm Source Impedance |
| SUB 1–4 Outputs |
Pseudo-Balanced TRS Phone Jack, +20dBu, 240 Ohm Source Impedance |
| Tape Outputs |
Unbalanced RCA, +10dBu, 1k Ohm |
| Control Room Outputs |
Balanced TRS Phone Jack, +20dBu, 240 Ohm Source Impedance |
| Residual Output Noise |
-90dBu (one mic input assigned at 0dB)
-82dBu (all 16 mic inputs assigned at 0dB)
-80dBu (all 24 inputs assigned at 0dB) |
| Crosstalk |
| Adjacent Channels (1kHz) |
-82dB |
| Noise |
-70dB (Bus Noise, Adjacent Channels 20Hz – 20kHz) |
| Noise Gate / ExpanderInputs, FX |
| Threshold Range |
-84dB – 0dB |
| Attack Time |
0.5mS – 200mS |
| Release Time |
10mS – 1,000mS |
| Ratio |
1:1 to ∞ |
| Compressor/LimiterInputs, Subgroups, Main, AUX, FX |
| Threshold Range |
-50dB – 0dB |
| Attack Time |
10mS – 150mS |
| Release Time |
10mS – 1,000mS |
| Ratio |
1:1 to ∞ |
| Gain |
0dB – +24dB |
| Parametric EQ (PEQ)Inputs, Subgroups, Main, AUX, FX |
| Filter Type (EQ1, EQ2, EQ3, EQ4) |
Parametric, Low Shelf, High Shelf |
| Parametric Filters |
20.6Hz – 20kHz, Q 0.4 – 24, Boost/Cut ±24dB |
| Shelving Filters |
20.6Hz – 20kHz, Boost/Cut ±24dB |
| HPF and LPF |
20.6Hz – 20kHz, 20 Filter Type |
| HPF and LPF Filter Types |
Bypass, Butterworth (BW) 6dB/oct,
Bessel (BS) 6dB/oct, BW 12dB/oct,
BS 12dB/oct, Linkowitz/Riley (LR) 12dB/oct,
BW 18dB/oct, BS 18dB/oct, BW 24dB/oct,
BS 24dB/oct, LR 24dB/oct, BW 30dB/oct,
BS 30dB/oct, BW 36dB/oct, BS 36dB/oct,
LR 36dB/oct, BW 42dB/oct, BS 42dB/oct,
BW 48dB/oct, BS 48dB/oct, LR 48dB/oct |
| Graphic EQ (GEQ)Main, AUX, Subgroup Outputs |
| Filter Type |
31-Band, Constant Q, Boost/Cut ±24dB |
| FX Input Sends from all 24 Inputs,FX output Assigns to AUX,Subgroups, Main Output |
| Effect Types |
Reverbs (3), Delay, Tremolo, Flange, Chorus, Combinations |
| Stereo Link |
Inputs, Subgroups, AUX |
| DCA Groups |
6 Groups, Level, Mute, Solo |
| Preset Types |
DSP Channel (48), GEQ (48), DFX (104), Scene (24) |
| Temperature Range |
| Operating, Free-Air |
41°F – 113°F (5°C – 45°C) |
| Storage |
-4°F – 140°F (-20°C – 60°C) |
| Power Requirements |
| AC Mains |
100-240VAC 50/60Hz, 120W MAX |
| Unit Dimensions (H x W x D) |
14" (356 mm) x 5.65" (144 mm) x 20.15" (512 mm) |
| Shipping Dimensions (H x W x D) |
18" (45.6 mm) x 8.7" (221 mm) x 23" (585 mm) |
| Unit Weight |
17.65 lbs (8.01 kg) |
| Shipping Weight |
22.6 lbs (10.3 kg) |
