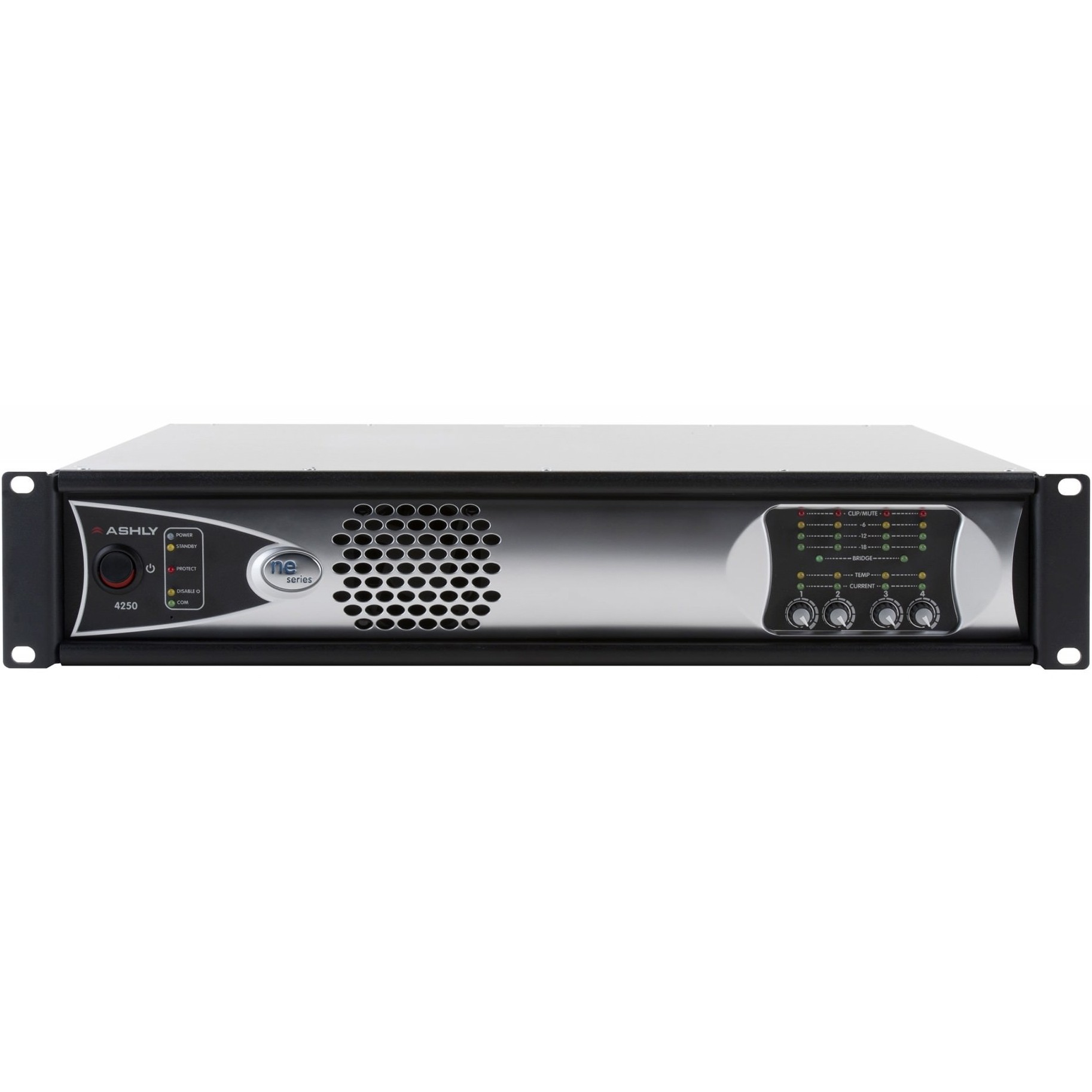

The multi-channel ne (Networked-Enabled) Series Amplifiers are uniquely designed around an energy efficient Class-D platform with a switching power supply.
This four-channel power amplifier delivers a minimum power of 250 Watts RMS per channel into 70V loads with all channels operating. When switched into bridged-mono mode, channels 1+2 or 3+4 of the amplifier deliver at least 500 Watts RMS into a 140V load. The power amplifier includes Euroblock input connectors, Euroblock output connectors and balanced analog inputs. The power amplifier has remote standby for power up, DC remote level control and contact closure preset recall. It has Ethernet control and monitoring of power functions, level, mute, polarity, temperature, current, and amplifier fault conditions. The frequency response is 20Hz to 20kHz ±1.0dB. Signal-to-Noise is greater than 105dB unweighted and SMPTE intermodulation distortion is less than 0.5% into an 8 Ohm load, 10dB below rated output. The front panel provides the status of power, standby, protect, power switch disable, signal level, bridge, over-temperature, over-current, and Ethernet communication. The power amplifier is capable of having factory installed AES3, CobraNet®, or Dante® interface options with the addition of a 4-Channel DAC card.
