Ashly Audio SP-12.1P 12" Extended Dynamics Passive Subwoofer - Black (Discontinued)

Description

Details

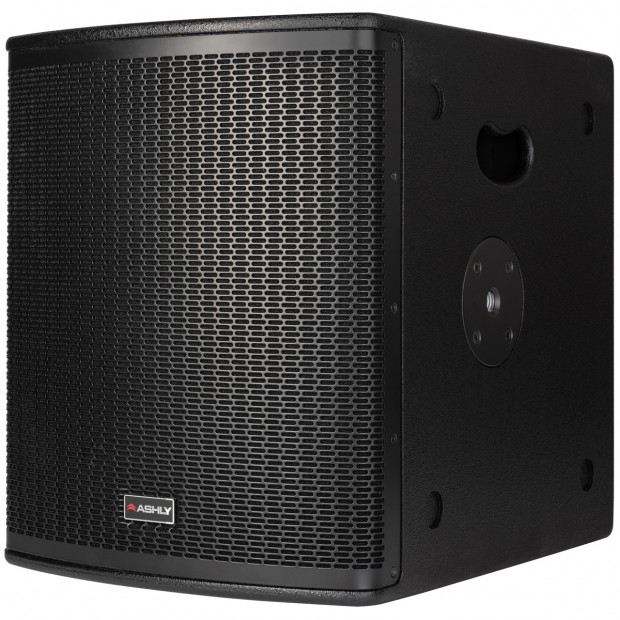

Ashly SP-12.1P 12" Extended Dynamics Passive Subwoofer

The SP 12.1P is a compact yet robust subwoofer for multiple low bass reinforment applications. Take advantage of its pole receptacles to use it with Ashly IS column speakers. Snuggle it into a corner or under a cabinet to add extra octaves to Ashly AW wall-mount speakers in any BGM environment.

Features

Features

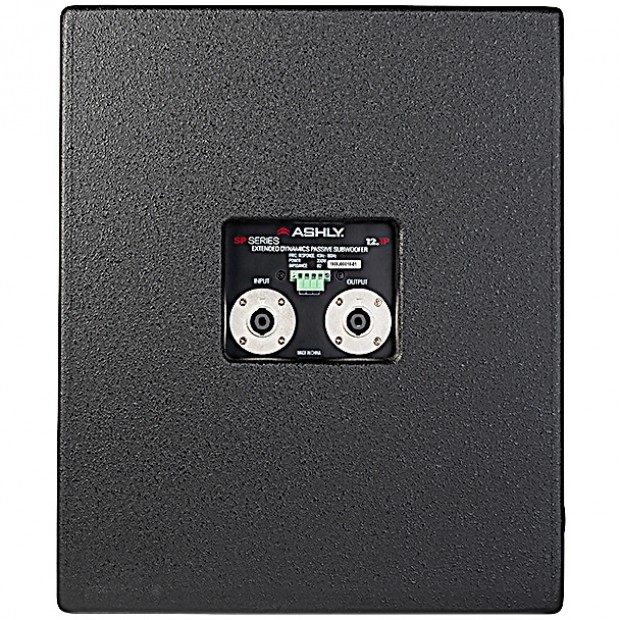

Neutrik SpeakOn® input and thru jacks for daisy-chaining subwoofers
Euroblock terminal input connections
350W power handling
Recommended Ashly Amplifiers: Single-channel: nXp 400 or higher
Bridged: nXp 400 or higher
Pêma 4125, 4250, 8125, 8250 Braced, 12-ply Birch plywood enclosure
Threaded pole mounts on top and side, plus recessed handles for easy transport
Available in white or black

Specification

Transducer	1 x 12-inch (300 mm) Ferrite woofer
Frequency Response (-10dB limits)	39 Hz – 180 Hz
Sensitivity (ref 2.83V)	99 dB
Nominal Impedance	8 Ω
Maximum Continuous SPL	3 120 dB / 128 dB @ MIV (continuous / peak)
Maximum Continuous SPL	124 dB / 130 dB calculated from power handling (continuous / peak)
Maximum Input Voltage (MIV)	32 dBV, 31.6 V (equivalent to 200W into rated impedance)
Power Handling	350W
Input Connectors	2 x NL4 SpeakOn® 1 x 4-position Euroblock
Enclosure Material	Birch Plywood
Recommended Amplifiers	Single-channel: nXp 400 or higher, Bridged: nXp 400 or higher Pema 4125, 4250, 8125, 8250
Dimensions (H x W x D)	17.8" (452 mm) x 14.8" (376 mm) x 18.85" (479 mm)
Net Weight	39.5 lbs (18 kg)
