AtlasIED 12CXT60 12" 2-Way Coaxial Compression Driver with 60W 70.7/100V Transformer
Description

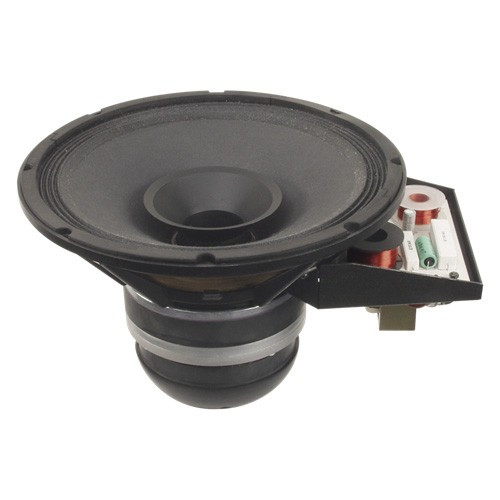

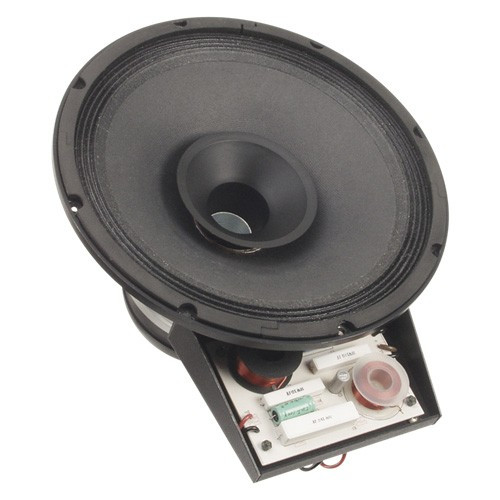

AtlasIED 12CXT60 12" 2-Way Coaxial Compression Driver
The 12CXT60 is a powerful 12-inch 2-way coaxial compression driver designed for high-performance commercial and installed sound applications. It combines a 12-inch low-frequency transducer with a 1-inch exit true compression driver to deliver clear, full-range audio with excellent intelligibility.

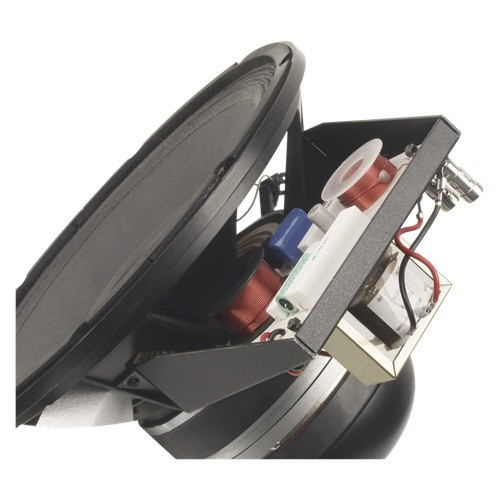

This model includes a factory-installed 60W 70.7/100V step-down transformer, making it ideal for distributed audio systems. A built-in crossover network ensures smooth and accurate frequency transition between the low and high frequency components for balanced sound reproduction.
Engineered for efficiency and durability, the 12CXT60 features a curvilinear treated paper cone to minimize distortion. With a frequency response of 45 Hz to 18 kHz, 99 dB sensitivity, and 90-degree dispersion, it provides wide coverage and reliable performance in a variety of commercial environments.
Features
- 12-inch 2-way coaxial compression driver loudspeaker
- 1-inch exit compression driver for clear high frequencies
- 250-watt power handling for high output performance
- Built-in 60W 70.7/100V transformer for distributed audio systems
- Integrated crossover network for smooth frequency transition
- Frequency response: 45 Hz to 18 kHz for full-range sound
- 99 dB sensitivity for efficient audio output
- 90-degree dispersion for wide coverage
- Curvilinear treated paper cone reduces distortion
- Ideal for commercial and installed sound applications
Specifications
| Frequency Response (±10dB) | 45 Hz to 18 kHz (Measured in Q4812) |
|---|---|
| Frequency Response (±3dB) | 65 Hz to 15 kHz (Measured in Q4812) |
| Power Handling | 250 Watts |
| Sensitivity 1W/1M | 99dB |
| Max. SPL @ 1M | 117dB (Transformer Limited @ 60W) |
| Max. SPL @ 1M | 123dB (8 Ohm @ 250 Watts) |
| Crossover Frequency | 1800 kHz |
| Dispersion Angle | 90 Degrees |
| Basket Material | Cast Aluminum |
| Cone Material | Treated Paper |
| Surround Material & Dampening | Cloth Edge |
| Voice Coil Diameter | 2.5" (63.5mm) |
| Magnet Weight | 70 oz. |
| Diaphragm Material | Titanium |
| Voice Coil Diameter | 2" (51mm) |
| Voice Coil Former Material | Kapton® |
| Voice Coil Material | Copper |
| Throat Diameter | 1" (25mm) |
| Top Plate Thickness | 0.218" (5.56mm) |
| Frequency Response | 33 Hz to 21 kHz (±2dB) |
| Primary Taps @ 70.7V | 60, 30, 15, 7.5 |
| Maximum Insertion Loss | 1dB |
| Net Weight (Less Transformer) | 21 lbs (4479 g) |
| Mounting Dimensions | 11.625" (295mm) Bolt Circle |
| Dimensions (Dia x D) | 12.88" (310 mm) x 8" (203 mm) |
