AtlasIED 407-15 7U Welded and Assembled Desk Top Cabinet
AtlasIED 407-15 7U Welded and Assembled Desk Top Cabinet
AtlasIED 407-15 7U Welded and Assembled Desk Top Cabinet
By AtlasIED

AtlasIED 407-15 7U Welded and Assembled Desk Top Cabinet

Write a Review
Part #:
407-15
Model #:
407-15
MSRP: $661.99
$531.99
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Adding to cart… The item has been added
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

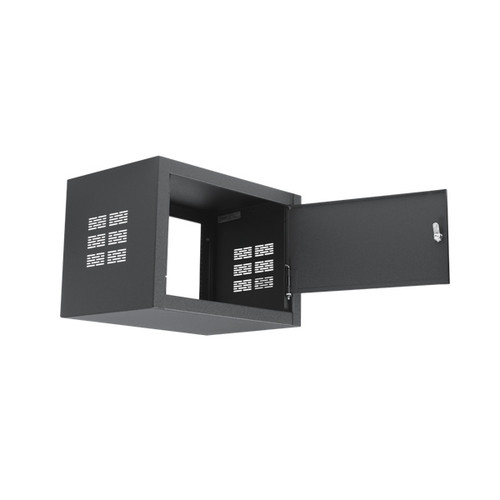

The AtlasIED 407-15 assembly provides desk-top access to 19" control and monitor equipment. This model includes a locking rear door with spring-loaded hinges, side vents and optional front door with self-tapping screws.

Description

The AtlasIED 407-15 assembly provides desk-top access to (19") control and monitor equipment. This model is a 16-gauge CRS and includes one pair of mounting rails, tapped 10-32, hardware and wiring access below rear door or panel. The 407-15 includes a locking rear door with spring-loaded hinges, side vents and optional front door (SFD407) with self-tapping screws. Inside (usable) dimensions are 17.75" W x 14.13" D.

Features
  • 11-Gauge CRS Tapped Mounting Rails
  • 16-Gauge CRS Cabinet
  • 5/8" - 5/8" - 1/2" EIA Standard Panel Mount Spacing
  • 5/8" Offset Rails for Panel Mount
  • Completely Assembled and All-Welded Construction
  • Internal Louvers on Each Side
  • Keyed Cylinder Lock on Rear Door
  • Optional Front Surface Door Available with Right or Left-Hand Hinging Capability
  • Spring-Loaded Hinge for Easy Removal of Rear Door

Specifications
Rack Units 7
Dimensions (H x W x D) 15.5" (393.7 mm) x 22.31" (566.8 mm) x 15.38" (390.5 mm)
Shipping Weight 36 lbs (16.33 kg)
