AtlasIED AH42-212-BSG 12" 3-Way Stadium Horn

By AtlasIED

AtlasIED AH42-212-BSG 12" 3-Way Stadium Horn

Write a Review
Part #:
AH42-212-BSG
Model #:
AH42-212-BSG
MSRP: $4,482.99
$3,589.99
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Adding to cart… The item has been added
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

The Atlas Sound AH42-212-BSG 12" 3-way stadium horn is designed to deliver high sound pressure levels and high intelligibility across wide areas in directional sound applications. Each speaker system consists of a UV-resistant fiberglass enclosure and three-stage, corrosion resistant steel mesh filtering system.

Description

The Atlas Sound AH42-212 Series stadium horn is designed to deliver high sound pressure levels and high intelligibility across wide areas in directional sound applications.  This speaker system consists of a UV-resistant fiberglass enclosure and three-stage, corrosion resistant steel mesh filtering system that makes them highly weather and pest resistant.  This model features a three-way design with dual 12" woofers, a 1.5" exit compression midrange driver and a 1" exit high-frequency compression driver that combine to provide 750 watts RMS power handling in full range mode.

A specially designed crossover provides frequency division and extensive driver protection for each bandpass. All models are 8Ω impedance and can be easily bi-amped (LF/MF+HF) by removing the exterior jumper for use with high-powered systems where greater system control and protection is required (Atlas Model ASP-MG24 speaker controller is recommended for these applications). Suspension mounting is facilitated via multiple forged eyebolts.

Features
  • 3 Way Design
  • High Pass Single 1" High-Frequency Exit Compression Driver
  • Single 1.5" Midrange Exit Compression Driver
  • Low Pass Dual 12" Cast Frame Woofers
  • 750 Watts RMS Power Handling (Full Range)
  • Weather Resistant Connection Via a Convenient Recessed Terminal Block Located on the Bottom of the Loudspeaker
  • 40° x 20° Dispersion
  • 8Ω Nominal Impedance
  • Seven, 10mm Internally Reinforced Forged Eyebolts Included for Suspended Installation

Specifications
Power Handling RMS (Full Range) 750 Watts
Power Handling RMS (BI-AMP) 800 Watts (Low Pass) 250 Watts (High Pass)
Recommended Crossover Points LP @ 500Hz 18dB/Octave Minimum HP @ 2kHZ 18dB/Octave Minimum
Sensitivity (1W/1M) 106dB (80Hz - 17kHz average)
Frequency Response 100Hz - 17kHz (-10 to +4dB)
Dispersion 40° x 20°
Impedance 8 ohm Nominal
Minimum Impedance 4.9 ohm @ 80Hz
Drivers: High Pass 1" Compression Driver
Drivers: Midrange 1.5" Compression Driver
Drivers: Low Pass Dual 12" Woofers
Dimensions (H x W x D) 32.53" (826.3 mm) x 32.53" (826.3 mm) x 47.11" (119.7 mm)
Weight 300 lbs (136.08 kg)

DOCUMENTS

Related Products

Sold Out

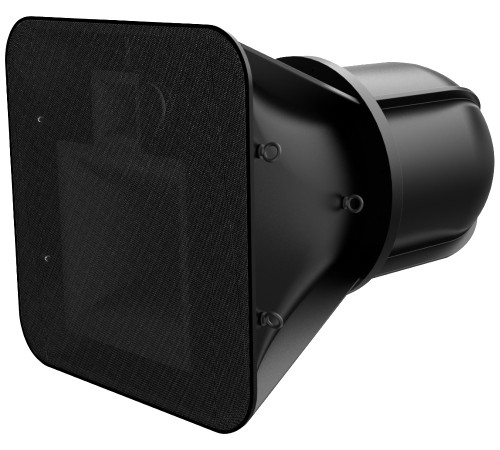

Atlas Sound AH42-212 12" 3-Way Stadium Horn (Discontinued)
