AtlasIED AS100N Compression Driver for Siren Loudspeakers
AtlasIED AS100N Compression Driver for Siren Loudspeakers

By AtlasIED

AtlasIED AS100N Compression Driver for Siren Loudspeakers

Write a Review
Part #:
AS100N
Model #:
AS100N
Availability: Currently Backordered - Contact Us for Comparable Solutions Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

The Atlas Sound AS100N Compression Driver for Siren Loudspeakers is ideal for use in police, fire, ambulance, and utility vehicles. The driver is equipped with a self aligning sound chamber assembly containing a 2 3/4" phenolic diaphragm with a nominal impedance of 11 Ohms.

Description

The AS100N Compression Driver for Siren Loudspeakers is ideal for use in police, fire, ambulance, and utility vehicles. The driver is equipped with a self aligning sound chamber assembly containing a 2 3/4" phenolic diaphragm with a nominal impedance of 11 Ohms. The AS100N is suitable for use with matched amplifier and control equipment in systems requiring AMECA (Automotive Manufacturer Equipment Compliance Agency, Inc.) certification to General Services Administration specifications (KKK-A-1822C). The AS100N is constructed using a Neodymium-Iron-Boron magnet.

Features
  • 100 Watt Power Handling for High Intelligibility and Sound Penetration
  • Accommodates Most Horns and Reflex Horns with Standard 1 3/8" - 18 Thread Pattern
  • Heavy-Duty Weather Resistant Construction
  • Neodymium-Iron-Boron Magnet Structure
  • Specifically-Designed for Electronic Siren and Signaling applications

Specifications
Power Rating 100 watts
Plane Wave Frequency Response 100Hz - 2.5kHz
Low Frequency Limit @ Full Power 500 Hz
Sound Level 117 dB (Measured on a plane wave tube @ 1mW)
Dimensions (Dia x H) 4.625" (117 mm) x 3" (76 mm)
Shipping Weight 5.00 lbs (2.27 kgs)

DOCUMENTS

Related Products

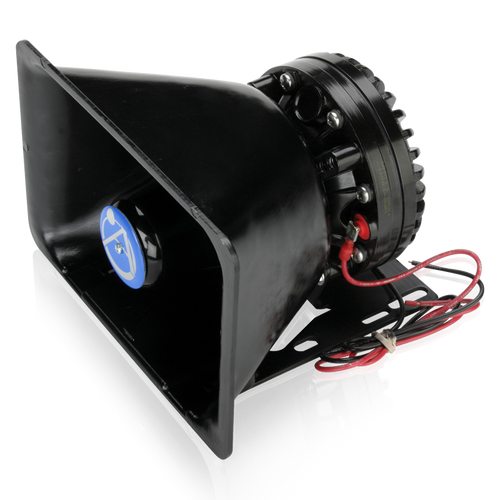

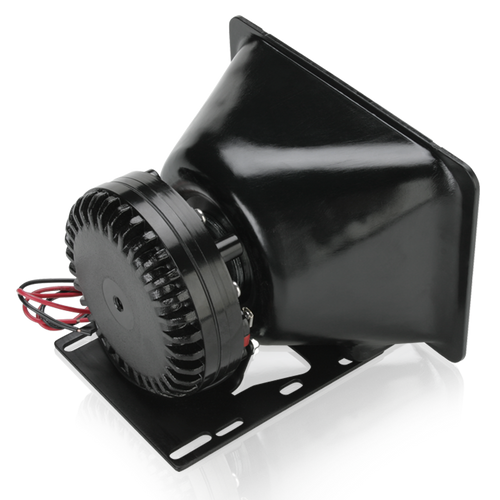

AtlasIED HPG-100N Rectangular Electronic Siren Loudspeaker AtlasIED HPG-100N Rectangular Electronic Siren Loudspeaker
