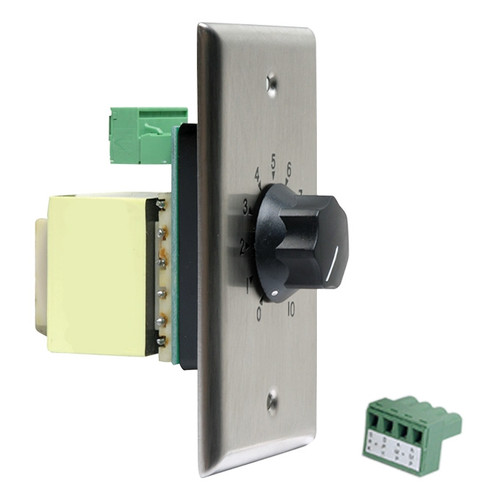

The AT35-PA 35-watt attenuator is a high-quality auto transformer that provides the advantages of excellent frequency response, low insertion loss, and reliable performance for volume control applications in 25 and 70.7-volt systems. Attenuation is accomplished in ten make-before-break steps plus positive off position. (No stop between maximum and off position to prevent switch damage). Contacts are silver-plated for noise-free operation. Features a removable terminal block. Includes stainless steel plate, with stamped and filled or screen printed dial scale, and a skirted black knob.
| Plate Size | 1 gang |
|---|---|
| Plate Type | Stainless Steel |
| Power Rating | 35W |
| Total Attenuation | 27dB |
| UL Listed/Standard | 813, 2043 |
| Dimensions (H x W x D) | 4.5" (114.3 mm) x 2.75" (69.85 mm) x 2.13" (54.1 mm) |
| Shipping Weight | 1.00 lbs (0.45 kg) |
