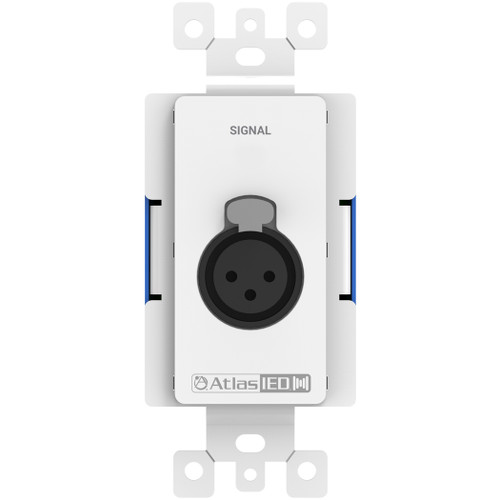

AtlasIED A-XLR Atmosphere Remote XLR Audio Input - White

Part #:
A-XLR-US
Model #:
A-XLR
MSRP: $292.99
$277.99
Availability: In Stock & Shipping Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Adding to cart… The item has been added
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL
The AtlasIED Atmosphere A-XLR is a remote XLR audio input for Atmosphere AZM processors. It mirrors onboard mic/line inputs and is automatically detected, with dynamic assignment of EQ, dynamics, auto gain control, and phantom power.

Description

AtlasIED Atmosphere A-XLR Remote XLR Wall Mount Input

The Atmosphere A-XLR is a remote XLR audio input to an Atmosphere AZM audio processor. This expansion acts identically to the on-board mic/line inputs. The AZM will automatically detect the A-XLR and dynamically assign appropriate audio settings, such as dynamics, EQ, auto gain control, and phantom power, to that input.

Each Atmosphere accessory is a plug-and-play, intelligent device, specifically designed to be approachable and intuitive. The Atmosphere accessory bus allows for up to 8 devices to be connected to a single accessory port, reliably sending audio and data over 1000ft per port. Up to 1x audio input accessory can be added to each accessory port.

Features

  • +48V phantom power (software configurable)
  • Digital audio return to host processor
  • Signal presence indicator
  • Neutrik brand™ connector with latch

Specifications

Minimum Box Depth 2.25"
Indicator Green = Signal Presence, Red = Clip, Blue = Locate
CMRR Typically 50 dB at 1kHz
EIN 117 dBu at 150Ω, 20kHz BW
Input Impedance 3.4kΩ
Maximum Voltage Input +2-dBu
Input Gain 0 - 60 dB
Accepts Unbalanced Inputs Yes
Phantom Power Voltage +48VDC 10mA
Retaining Clip Yes
Connector Type XLR (Female)
Sensitivity +4 dBu (Same as AZM Balanced Inputs)
Dimensions (H x W x D) 4.72" (119.9 mm) x 2.96" (75.2 mm) x 2.06" (52.3 mm)
