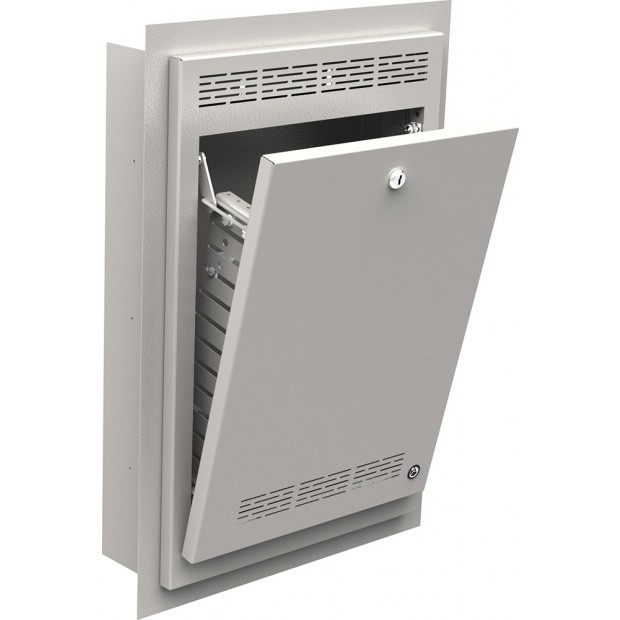

The Atlas Sound AWR2W-HR 2RU Tilt Out Half Rack Wall Cabinet offers convenient access, lock-in security, and welded construction that can be surface or recessed mounted. It is designed to install within standard 16" stud wall construction, reducing installation time and the need to cut and repair dry wall. The AWR series features a 18-gauge CRS formed door frame with a 18-gauge CRS locking tilt-out door which closes flush against the rack face plate. The surface mount door is attached to the frame internally with 2 pin style hinges to prevent tampering.
The door can be opened to two positions, tilt-out for operation, and by releasing side catches, the door will open to approximately 90° for equipment installation and maintenance. Units are furnished with two steel safety catch cables that suspend and hold doors at 90°. The back box is 18-gauge CRS and is equipped with six eight concentric 1⁄2" and 3⁄4" conduit knockouts. The 12-gauge CRS Rack rail mounting holes accept 10-32 hardware.
| Rack Units | 2 RU |
|---|---|
| Dimensions (H x W x D) | 22" (559 mm) x 14.38" (365 mm) x 5.7" (121 mm) |
