- Description
Details

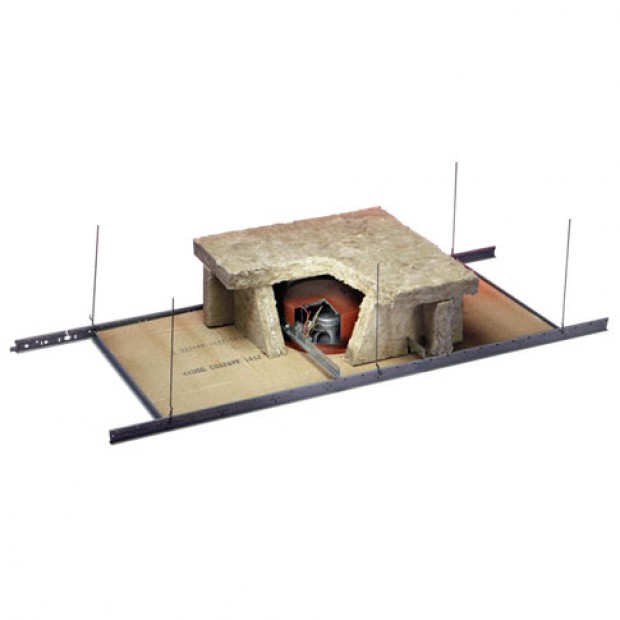

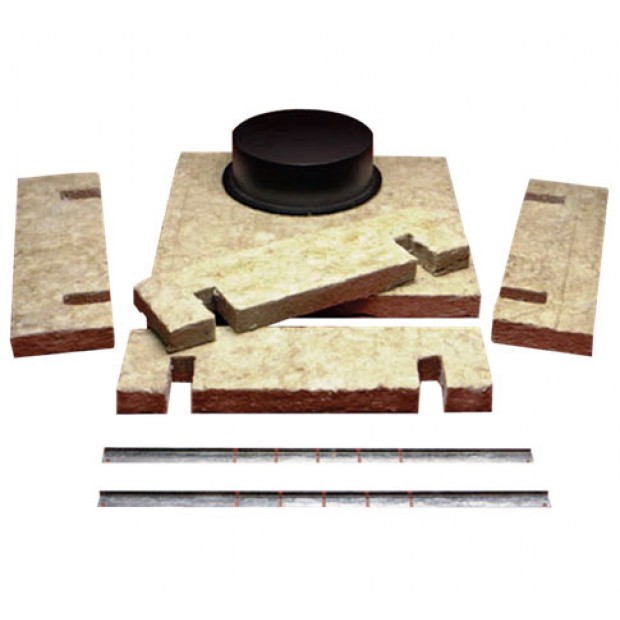

Atlas Sound has developed the only speaker assemblies that are UL classified for fire-resistance in the United States and Canada. The C803AT87FRK has passed a fire-rating up to three hours (rating varies by ceiling construction) and has been tested in accordance with the UL standard – Fire Test of Building Construction and Materials, ANSI/UL263 (ASTM E119, NFPA 251). The C803AT87FRK assembly includes an enclosure-fiber kit, UL listed speaker/transformer assembly, and UL Listed baffle. Each enclosure-fiber kit includes pre-cut fiber panels, metal enclosure, rail set and hardware. The speaker/transformer combinations approved for use in FR assemblies are FR versions of the industry standard Atlas Sound Strategy Series C803AT87FRK loudspeaker.
- Features
Features
- Assembly Includes Enclosure Fiber Kit
- Quick Installation & Low Installed Cost
- Speaker System has Been Tested in Accordance with UL Standard - Fire Test of Building Construction & Materials, ANSI/UL263
- UL Certified, Safety Listed to UL263
- Specification
Included Baffle 51-8FR Included Speaker 95-8FR Included Enclosure C803AT87FR UL Listed/Standard ANSI / UL 263 (ASTM E119, NFPA 251) Dimensions (H x W) 10 3/4" (273.05 mm) x 24" (609.6 m) Shipping Weight 16.47 lbs - Documents
Documents
- In The Box
In The Box
- C803AT87FR 8 inch Dual Cone Loudspeaker
- 51-8FR Baffle
- 95-8FR Enclosure/ Fiber Kit
