Atlas Sound DR-32 Uniform Dispersion Horn and PD-30T 70V Compression Driver Package
This weather-resistant Atlas Sound DR-32 horn and PD30T 70V compression driver package provides superior music and voice communications over distance and ambient noise. Ideal for outdoor applications that require intelligible audio transmission over long distances or through high background noise levels and are consistently recommended for sport facilities, amusement parks, church towers, warehouses, factories, military sites, transportation terminals, and other environmentally demanding locations.

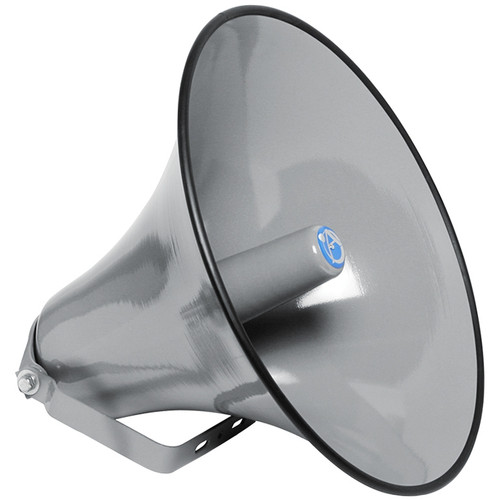

The Atlas Sound DR-32 circular projector is equipped with a resonance damping ring for best response through an extended frequency range and has 95° uniform coverage. Weather-resistant units will accommodate Atlas Sound PD and SD Series compression drivers or any driver with standard 1.38" -18 male thread coupling. The integral "U-type" steel mounting bracket provides maximum directional aiming flexibility and enhances installation capability when used outdoors or in industrial environments. This rugged all-metal, exponentially-flared horns are finished in durable grey epoxy.

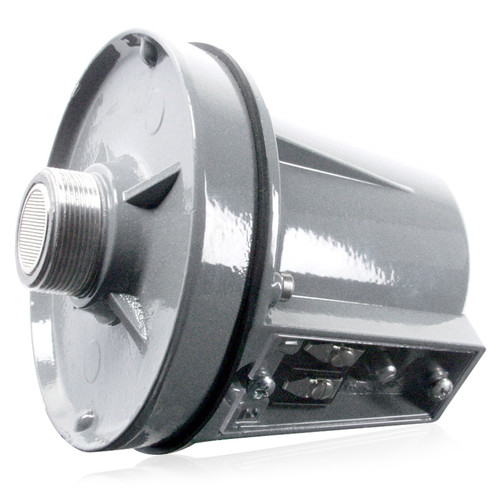

The PD-30T is a fully environment-resistant compression driver for indoor or outdoor applications recommended for use in expansive and/or high ambient sound-level areas. The unit has a power rating of 30 watts, a 1.5" voice coil and a plane wave frequency response of 300Hz - 3.9kHz. Transformer-equipped Model PD-30T incorporates the exclusive Atlas Sound Vari-Tap® Control/Connect Center with a screwdriver selectable ohms/watts switch. The integral 70V line matching transformer is varnish impregnated for maximum environment resistance and life expectancy. It also includes a protective terminal cover with built-in strain relief to assure secure cable connection. The PD-30T is terminated in standard 1 3/8"-18" thread male couplings for use with screw-on horns.
