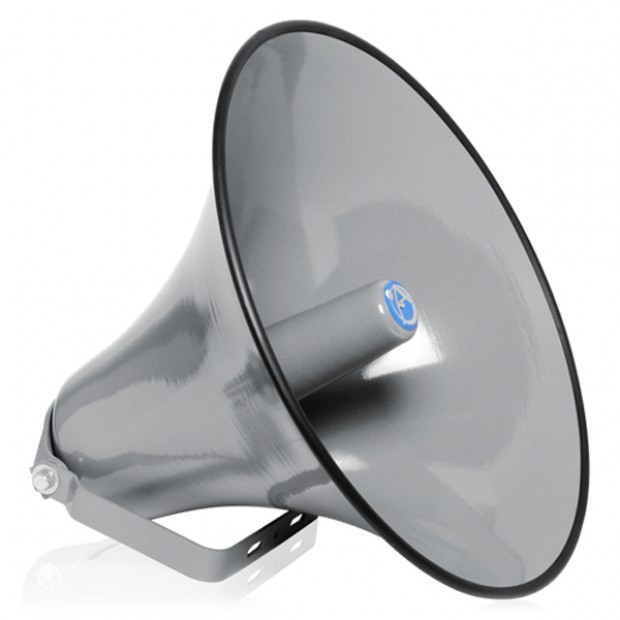

The Atlas Sound DR-32 circular projector is equipped with a resonance damping ring for best response through an extended frequency range and has 95° uniform coverage. Weather-resistant units will accommodate Atlas Sound PD and SD Series compression drivers or any driver with standard 1.38" -18 male thread coupling. The integral "U-type" steel mounting bracket provides maximum directional aiming flexibility and enhances installation capability when used outdoors or in industrial environments. This rugged all-metal, exponentially-flared horns are finished in durable grey epoxy.
- Features
Features
- Accepts all standard high-efficiency compression drivers with 1 3/8" - 18 male threads
- Exponentially-flared for uniform sound distribution
- Multi-purpose reflex sound horns for high intelligibility sound distribution and voice and signal applications
- Weatherproof, all-metal construction for year-round use
- Specification
Dispersion 95° Low End Cut-Off 190Hz Air Column Length 2½" (762 mm) Directivity Factor (Q) 10.7 Depth 12 1/2" (31.75 cm) Dimensions (Dia x D) 16.5" (419.1 mm) x 12.5" (317.5 mm) Shipping Weight 11 lbs (4.99 kg) - Documents
Documents
