- Description
Details

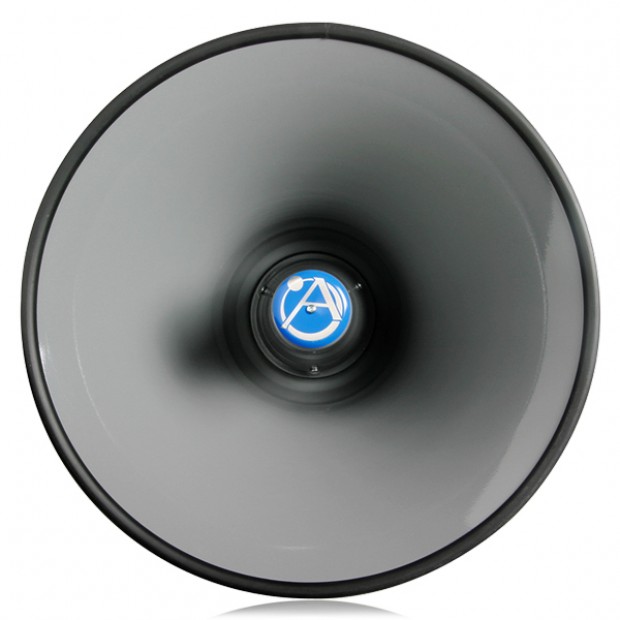

The Atlas Sound DR-54 double re-entrant 75° horn is designed for use with compression driver units to offer superior music and voice communications over distance and ambient noise. The circular projectors are equipped with a resonance damping ring for best response through an extended frequency range. Weather-resistant units will accommodate Atlas Sound PD and SD Series compression drivers or any driver with standard 1 3/8" -18 male thread coupling. The integral "U-type" steel mounting bracket provides maximum directional aiming flexibility and enhances installation capability when used outdoors or in industrial environments. The rugged all-metal, exponentially-flared horns are finished in durable grey epoxy.
- Features
Features
- Accepts all standard high-efficiency compression drivers with 1 3/8" - 18 male threads
- Exponentially-flared for uniform sound distribution
- Multi-purpose reflex sound horns for high intelligibility sound distribution and voice and signal applications
- Weatherproof, all-metal construction for year-round use
- Specification
Dispersion 75° Low End Cut-Off 115Hz Air Column Length 4½" (1372 mm) Directivity Factor (Q) 16.8 Finish Durable grey epoxy Dimensions (Dia x D) 26" (660.4 mm) x 19" (482.6 mm) Shipping Weight 20 lbs (9.07 kg) - Documents
