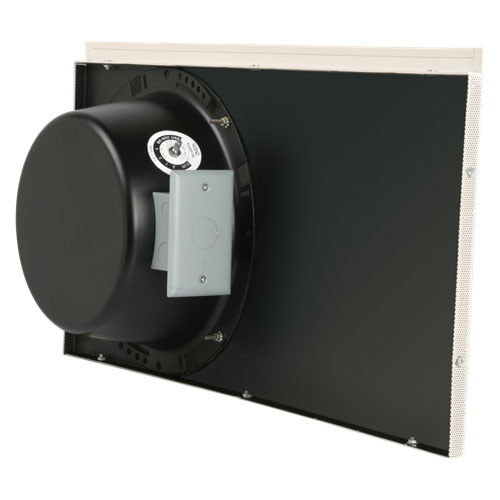

The Atlas Sound DT12 1' x 2' Speaker Package with Enclosure combines ease of installation with superb intelligibility for speech and music reproduction. The 1' x 2' footprint allows quick installation into 2' x 2' or 2' x 4' acoustic tile ceilings. The E.O. box (with cover) is smartly positioned on the side of the conical enclosure to facilitate rigid or flexible conduit. An external tap selector switch (located on the side of the enclosure) allows for easy system tuning by providing quick installer access to the 70.7V tap settings ranging from .25 to 4 watts.
| Woofer | 8" Dual Cone |
|---|---|
| Frequency Response | 85Hz - 8kHz (± 5dB) |
| Power Taps | 0.25, 0.5, 1, 2, 4 Watts & 8Ω Bypass |
| Speaker Type | 8", 10oz Dual Cone |
| Dispersion | 105° - 2kHz Octave Band (-6dB) |
| Sensitivity | 97dB (1W/1M) |
| UL Listed/Standard | 1480 & 2043 |
| Dimensions (H x W x D) | 23.88" (606 mm) x 12.88" (327 mm) x 4.5" (114 mm) |
| Weight | 9.5 lbs (4.3 kg) |
