Atlas Sound EM806A-B Full Range Powered Line Array Speaker (Discontinued)
By AtlasIED

Atlas Sound EM806A-B Full Range Powered Line Array Speaker (Discontinued)

Write a Review
Part #:
EM806A-B
Model #:
EM806A-B
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

The Atlas Sound EM806A-B Full Range Powered Line Array Speaker is a 1500W RMS speaker system that is designed for use in speech and music reproduction applications for medium to large venues like houses of worship, theaters, or halls.

Description

The Atlas Sound A-Line EM806A-B line array system is a 1500W RMS powered full range speaker system that is designed for use in speech and music reproduction applications for medium to large venues like houses of worship, theaters, or halls.  The unit incorporates eight 6.5" high frequency ribbon drivers and eight 6.5" midrange drivers. The unit features an integrated  class D amplifier with pre-configured DSP for optimal sound reproduction. This amplifier is able to deliver 1000W RMS power to the midrange speakers and 500W RMS power to the high frequency drivers. The sealed cabinet design has integrated carry handles for easy transport and is finished in heavy duty black Duracoat.  The EM806A-B is designed to be used with the EMW410A-B subwoofer system for a truly unmatched 3-way sound experience.

Features
  • Eight 6.5" High Frequency Ribbon Drivers
  • Eight 6.5" Midrange Drivers
  • Integrated 1500W Class D Amplifier
  • Integrated Carrying Handles for Easy Transport
  • Heavy Duty Duracoat Finish
  • M&F XLR & I/O PowerCON Connectors

Specifications
Total RMS Power 1500 Watts
Midrange RMS Power 1000 Watts
High Frequency RMS Power 500 Watts
Frequency Response 90Hz - 19kHz
Crossover Frequency 90Hz/125Hz Up to 2kHz
MAX SPL 130 dB
Horizontal Dispersion 120°
Dimensions (H x W x D) 54.6" (1386.8 mm) x 13.1" (332.7 mm) x 9.4" (238.8 mm)
Weight 105 lbs (47.63 kg)

DOCUMENTS

Related Products

Sold Out

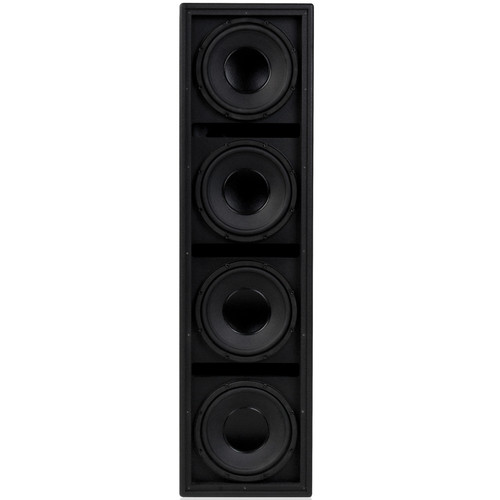

Atlas Sound EMW410A-B Active Modular Subwoofer (Discontinued) Atlas Sound EMW410A-B Active Modular Subwoofer (Discontinued)
