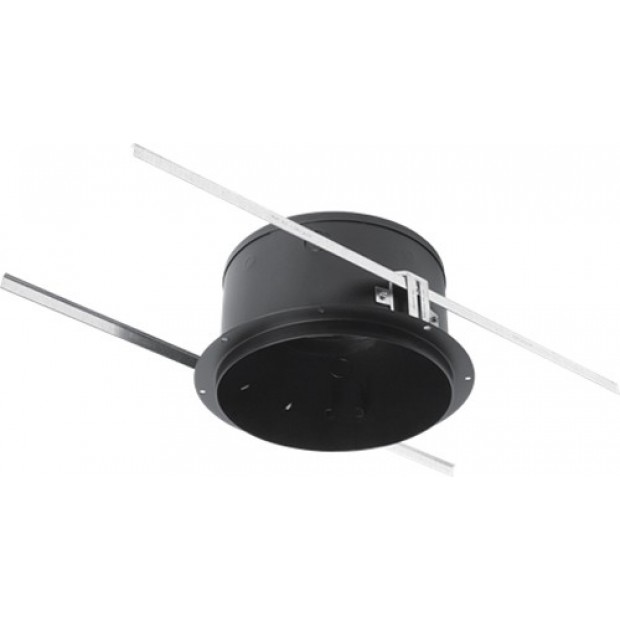

The EZ195-8 8 inch EZ Mount Flanged Torsion Enclosure transfers the composite weight of the loudspeaker, baffle, and enclosure to the ceiling’s support members via adjustable support rails (included). The rails may be adjusted vertically and then secured to the specially designed, pre-mounted enclosure brackets with screws (furnished). No tile bridge or time-consuming screw mounting is necessary.
Enclosure Models EZ96-4, EZ96-4X, EZE49, and EZE410 accommodate standard 4" loudspeakers. Models EZ95-8, EZ96-8, and EZ195-8 accommodate standard 8" loudspeakers. These welded, heavy-gauge CRS enclosures are finished in a textured black epoxy and undercoated to prevent mechanical and acoustical resonances. All units are equipped with conduit knockouts. The support rails are also heavy-gauge CRS and finished in a galvanized coating.
| Mounts Baffle | T730-8B(8G) |
|---|---|
| Dimensions (Dia x D) | 10.125" (257.2 mm) x 5.5" (139.7 mm) |
| Shipping Weight | 4.17 lbs (1.89 kg) |
