AtlasIED Complete Business Music and Paging System
The EZSYS-BGM-CPHD package is an entire business music and paging system. It includes a patented self-diagnostic technology called "Push Here Diagnostics". The system package includes the proper amplification, system control, and loudspeakers. All you need are audio sources and cables. The box illustrates the proper way to connect the equipment, including cable and tool requirements.
AtlasIED has packaged the most common business music, paging, and sound masking systems into single cartons. No loose parts. Sized and weight optimized for common freight carrier requirements. The EZSYS packages take the guesswork out of your system design and order process. Now, you know which mixer amplifier and loudspeakers seamlessly work together for the most common small-to-medium business music, paging, and sound masking installations.
AtlasIED SD72W 8" Dual Cone In-Ceiling Loudspeaker
The loudspeaker used in the SD72W is the next generation of Atlas high-performance cone loudspeakers, very similar to the preceding C-Series loudspeakers. The similarity in the sonic qualities ensures that contractors and designers who have worked with the AtlasIED C-Series in the past will know exactly what to expect when they use the SD72W. Model SD72W is a dual cone, 25 watt 8" (205 mm) loudspeaker with a 10 oz (260 g) ceramic magnet. It includes a curvilinear, treated paper cone for lower harmonic distortion. The loudspeaker is also equipped with a full 1" diameter copper voice coil with a black anodized aluminum former for better power dissipation. Package includes factory installed 25/70.7V line matching transformer with tap selections ranging from .25 to 5 watts. Model SD72W operates within a frequency response range of 45Hz - 19kHz (nominal) with a sensitivity of 97dB and a dispersion angle of 105°. The SD72W includes a factory installed CRS baffle with concealed loudspeaker mounting studs and includes screw mount hardware. The SD72W baffle features standard mounting holes to accommodate the majority of AtlasIED 8" tile bridges, mounting rings and enclosures. When specifying mounting hardware be advised that the dimensions of the SD72W baffle match the AtlasIED Model 62-8. The baffle finish is white powder coat epoxy.
AtlasIED AA50PHD 50W Mixer Amplifier

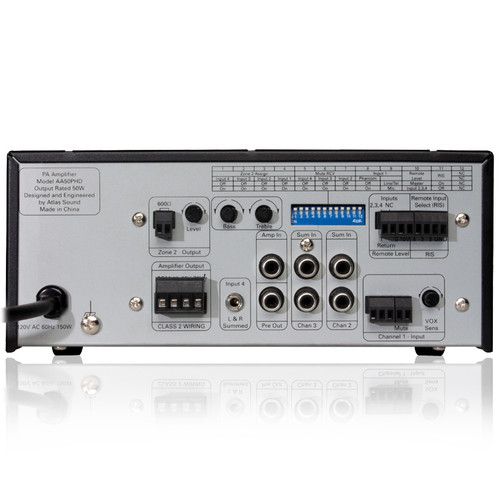

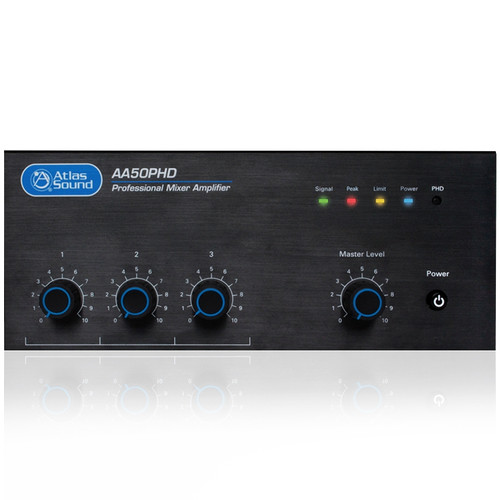

The AtlasIED AA50PHD is a four input channel mixer amplifier designed for distributed business paging and background music (BGM) systems, small to medium speech privacy systems, and in applications where music on hold (MOH) plus paging is required. With one microphone/line input and three stereo line inputs, the AA50PHD will accommodate a variety of input sources including paging microphones, media players, and digital music receivers. The AA50PHD includes a patent pending automatic system test, the Push Here Diagnostic (PHD).
Atlas Sound WPD-RISRL Volume Control Input Select Switch
The WPD-RISRL is a decor style wall plate that is designed for use with the AA50PHD mixer amplifier to use the remote input selection (RIS) feature. The WPD-RISRL features an audio source slide selector as well as a source volume control. The unit includes an LED indicator to indicate which source is selected and if it is active. The unit fits in a single gang electrical outlet and uses an 8-conductor interface connection that includes a single 4 position removable Phoenix connector and dual 2 position Phoenix style connectors. When connected to the RIS output on an appropriate AAPHD amplifier, the WPD-RISRL allows for remote selection and volume adjustment of inputs 2, 3, and 4 allowing the rack to remain locked and secured.
