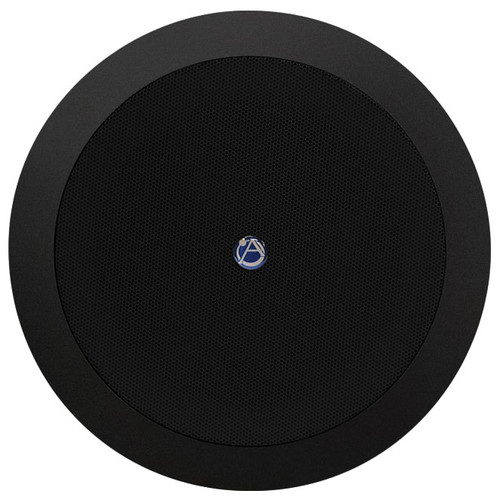

AtlasIED FAP42T Strategy II Series 4" Coaxial In-Ceiling Loudspeaker - Black Pair
AtlasIED FAP42T Strategy II Series 4" Coaxial In-Ceiling Loudspeaker - Black Pair
AtlasIED FAP42T Strategy II Series 4" Coaxial In-Ceiling Loudspeaker - Black Pair
By AtlasIED

AtlasIED FAP42T Strategy II Series 4" Coaxial In-Ceiling Loudspeaker - Black Pair

Write a Review
Part #:
FAP42T-B
Model #:
FAP42T-B
MSRP: $385.98
$309.98
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Adding to cart… The item has been added
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

The Atlas Sound FAP42T Strategy II Series 4" in-ceiling coaxial loudspeaker combines superior coaxial loudspeaker performance with wide dispersion and easy installation. Its low profile enclosure and wide coverage make the FAP42T a perfect choice for low ceilings.

Description

The Atlas Sound FAP42T combines superior coaxial loudspeaker performance with wide dispersion and easy installation. Its low profile enclosure and wide coverage make the FAP42T a perfect choice for low ceilings. This In-Ceiling Speaker will satisfy the needs of owners, architects, contractors, and consultants by delivering true, high fidelity sound reproduction in an attractive and easy-to-install system. It is ideal for high-intelligibility voice, music, and signal reproduction in commercial, industrial, and institutional applications.

Features
  • 4 pole detachable "Phoenix" style connector allows easy pre-wiring and is convenient for daisy-chaining additional strategy full range speakers or subwoofers
  • Easy installation in drop tile or sheetrock ceilings via C-Ring/V-Rail tile bridge and "Dog Leg" mounting system (included)
  • Enhanced quality 70.7V/100V internal transformers minimize insertion loss and maintain low-frequency response while providing increased output for higher SPL applications
  • Extended low-frequency response from the 285 cubic inch optimally tuned and ported deep drawn galvanized steel enclosure
  • Front mounted tap selector switch for easy system tuning adjustments includes transformer bypass setting for 8-ohm direct coupled operation
  • Perfect companion with the FAPSUB subwoofer system when sub bass is required
  • Press-fit grille blends perfectly into contemporary architecture
  • Also available in white (FAP42T)

Specifications
Frequency Response 75Hz - 20kHz
Power Taps 1W, 2W, 4W, 8W, 16W & 8Ω
Speaker Type Coaxial
Dispersion 130°
Sensitivity 88dB average
UL Listed/Standard 1480
Woofer Size 4" (102 mm)
Power Handling 25 watts
Transformer Taps at 70.7V 1, 2, 4, 8, & 16 watts & 8Ω bypass
Woofer 4" poly cone with butyl rubber surround
HF Driver Coaxially mounted PEI dome tweeter
Magnet Weight 0.8 lbs (0.36 kg)
Cut-Out Diameter 9" (229 mm)
Dimensions (Dia x H) 10.5" (267 mm) x 8.88" (225 mm)
Shipping Weight (Pair) 24 lbs (10.89 kg)
