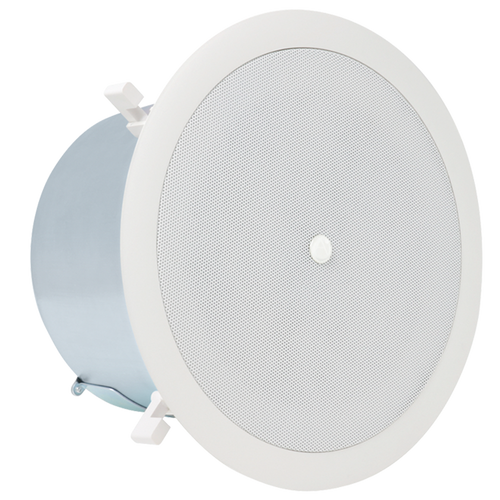

Atlas Sound FAP62T Strategy II Coaxial Ceiling System Package
Atlas Sound’s FAP62T combines superior coaxial loudspeaker performance with even dispersion and easy installation. A low profile enclosure and wide coverage make the FAP62T a perfect choice for low ceilings. The FAP62T will satisfy the needs of owners, architects, contractors, and consultants by delivering true, high fidelity sound reproduction in an attractive and easy-to-install system. The FAP62T is ideal for high-intelligibility voice, music, and signal reproduction in commercial, industrial, and institutional applications. Compact profile enclosures and wide dispersion make the FAP62T a perfect choice for low ceilings.
The loudspeaker's components match the performance of the legendary Atlas Sound Strategy Series II FA Series. High-quality construction of the 1" voice coil drivers include polypropylene cones with a butyl rubber surround. The19 mm coaxially mounted tweeter is constructed of durable PEI.

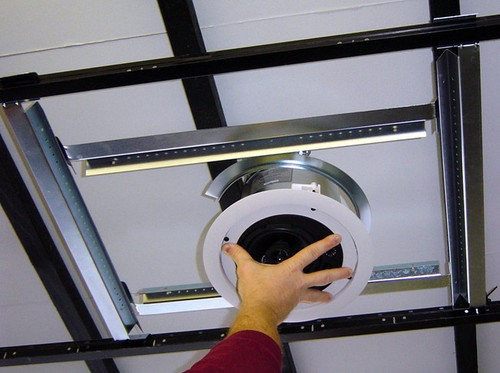

The high sensitivity of the loudspeaker means less power may be required to achieve the desired SPL. The loudspeakers are factory assembled to an optimally tuned & ported deep drawn enclosure and include a specially designed low saturation 70.7V/100V transformer. A convenient front mounted switch allows tap selection without the need to remove the speaker from the ceiling. Uniquely designed "easy access" input panel design allows for "thru" conduit runs using flexible or rigid conduit. A detachable Phoenix style, locking four-pole connector provides for easy daisy chain wiring to other full range loudspeakers or Atlas Sound FAPSUB subwoofers. Attractive press-fit grille blends seamlessly into contemporary architecture.
The FAP62T's 110° dispersion angle can reduce the number of loudspeakers necessary to achieve coverage in distributed systems with low ceilings. The loudspeaker component matches the performance of the legendary Atlas Sound FA136 driver. High-quality construction 6" coaxial cone type driver includes a 1” voice coil and polypropylene cone with a butyl rubber surround. The 19mm coaxially mounted tweeter is constructed of PEI. A high sensitivity of 88dB average (92dB peak) means less power may be required to achieve the desired SPL. This loudspeaker is factory assembled in an optimally tuned and ported deep drawn enclosure and includes a specially designed 32 watt low saturation 70.7V / 100V transformer. A convenient front mounted selector switch allows tap selection without the need to remove the speaker from the ceiling. This switch also includes a transformer bypass setting for 8Ω direct coupled operation.
