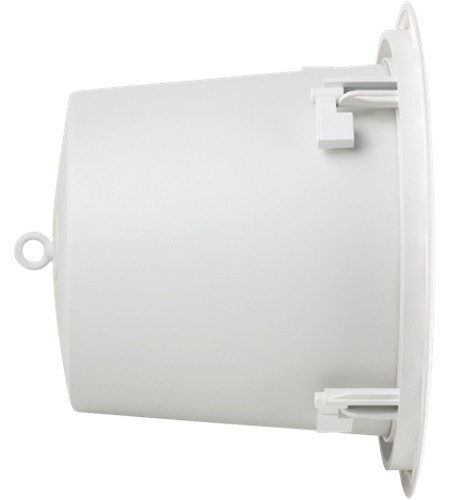

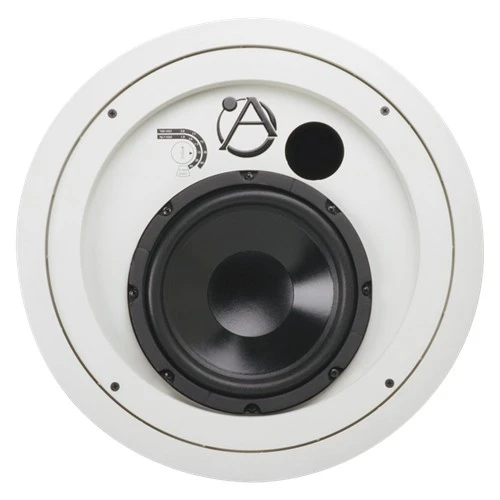

AtlasIED FAPSUB-1 8-inch In-Ceiling Subwoofer
Write a Review
AtlasIED FAPSUB-1 8-inch In-Ceiling Subwoofer
Description
Atlas Sound FAPSUB-1 In-ceiling Subwoofer
The Atlas Sound FAPSU-1 consists of a highly efficient 8", 8 ohm subwoofer designed and built by Atlas Sound to work optimality in the FAPSUB-1 enclosure system. A highly efficient, 3-pole filtering network eliminates unwanted high frequencies from the woofer, while the 937 cubic inch, tuned and ported, deep drawn steel enclosure provides bass responsedown to 45 Hz (±10 dB).
A special low saturation 70.7 V / 100 V transformer is included with 1.9, 3.8, 7.5, 15, 30 and 60 W primary taps (@ 70.7 V) to match and balance the subwoofer with full range speakers without the need for separate amplification. A convenient front mounted selector switch allows tap selection without the need to remove the speaker from the ceiling.This tap selector switch also includes a transformer bypass setting for 8 ohm direct coupled applications.
Features
- Attractive grille and bezel matches aesthetics of other Atlas Sound FAP Series
- Detachable, Phoenix style, locking, four-pole connector provides for easy daisy chain wiring
- Easy installation in drop tile or sheetrock ceilings via C-ring/V-rail tile bridge and "dog leg" mounting system (included)
- Front mounted tap selector switch for easy system tuning adjustments includes transformer bypass setting for 8 ohm direct coupled operation
- High efficiency, passive crossover network eliminates the need for dedicated amplifier and/or active crossover
- Low crossover point greatly reduces localization (ability of listener to identify the subwoofer location)
- Uniquely designed, "easy access" input panel design allows for "thru" conduit runs using flexible or rigid conduit
Specifications
| Frequency Response | 45 Hz to 120 Hz (±10 dB) |
|---|---|
| Power Taps | 1.9, 3.8, 7.5, 15, 30 and 60 W, 8 Ohm |
| Speaker Type | In Ceiling Sub |
| Dispersion | Omni |
| Sensitivity | 89 dB Average |
| UL Listed/Standard | 1480 |
| Woofer Size: | 8" (203 mm) |
| Woofer Impedance: | 8 Ω Direct Coupled (Nominal) |
| Transformer Taps at 70.7 V: | 1.9, 3.8, 7.5, 15, 30, & 60 W & 8 Ω Bypass |
| Power Handling: | 100 W RMS |
| Low Pass Filter: | Three Pole Design 18 dB / octave @ 120 Hz |
| Magnet Weight: | Nominal, 20 oz (580 g) |
| VC Diameter: | 35.5 mm |
| VC Material: | Copper |
| VC Former Material: | Kapton |
| Cut-out Diameter: | 14" (35.5 cm) |
| Dimensions (Diameter x D) | 15.75" (40.01 cm) x 12.75" (32.39 cm) |
| Shipping Weight | 21.50 lbs (9.75 kg) |
