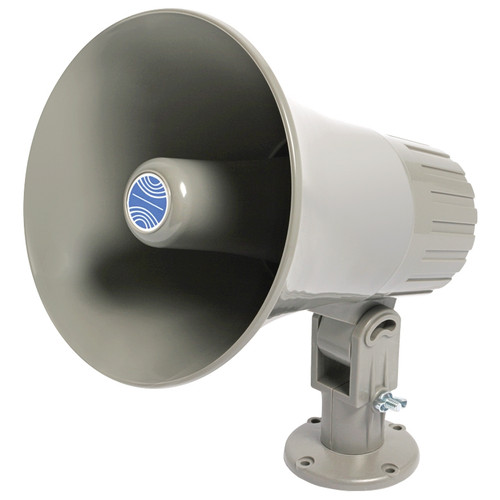

AtlasIED GA-15T Re-Entrant Horn Loudspeaker with 25V / 70.7V 15W Transformer
By AtlasIED

AtlasIED GA-15T Re-Entrant Horn Loudspeaker with 25V / 70.7V 15W Transformer

Write a Review
Part #:
GA-15T
Model #:
GA-15T
MSRP: $126.99
$103.99
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Adding to cart… The item has been added
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

The Atlas Sound GA-15T loudspeaker is a utility horn perfectly suited for voice paging and music transmission. Double re-entrant horn construction optimizes loudspeaker output to penetrate ambient sound levels.

Description

Atlas Sound GA-15T Utility Paging Re-Entrant Horn Loudspeaker

The GA-15T loudspeaker is a utility horn perfectly suited for voice paging and music transmission.

Double re-entrant horn construction optimizes loudspeaker output to penetrate ambient sound levels. This 15-watt model incorporates a compression driver with ceramic magnet and includes a combination 25/70.7-volt line transformer with multi-position knob switch for selecting power taps. Unit is also equipped with wiring for an 8-ohm connection to facilitate installation when a transformer is not required.

GA-15T features a round, high-impact plastic horn and will withstand outdoor installation in high-humidity environments.

Adjustable surface mounting bracket provides multiple (vertical and horizontal) positioning. Each assembly is supplied with 21 gauge 18" color coded wire leads for matching polarity and loudspeaker connection.

Entire assembly is gray with silver colored hardware.

Features
  • Dual voltage, knob-adjustable impedance selection for 25/70.7V line connection
  • Multi-function, re-entrant horn loudspeakers offer efficient sound penetration and dispersion for paging, music and intercom use
  • Sturdy construction for long-term indoor and outdoor use

Specifications
Frequency Response 400Hz – 6kHz (±5dB)
Power Taps .5, 1, 2, 4, 8, 15W @ 70.7V
Sensitivity SPL (1w/1m) 103 dB
Dispersion 80°
Dimensions (H x Dia x D) 10" (254 mm) x 7.5" (190.5 mm) x 9.38" (238 mm)
Weight 2.8 lbs (1.3 kg)
