The GPN1200K TSD sound masking generator kit is an all-in-one solution for creating effective sound masking systems. Designed with precision and reliability, this kit features the second-generation TSD-GPN1200 sound masking generator, providing consistent performance ideal for basic sound masking applications in offices, medical facilities, and other environments where speech privacy and noise control are critical.
The TSD-GPN1200 offers advanced digital signal processing (DSP) technology, ensuring a superior noise topology that eliminates repeating cycles often found in low-cost digital designs. It generates pink noise as the masking source, which is ideal for blending with ambient sound and maintaining a comfortable, balanced masking effect.

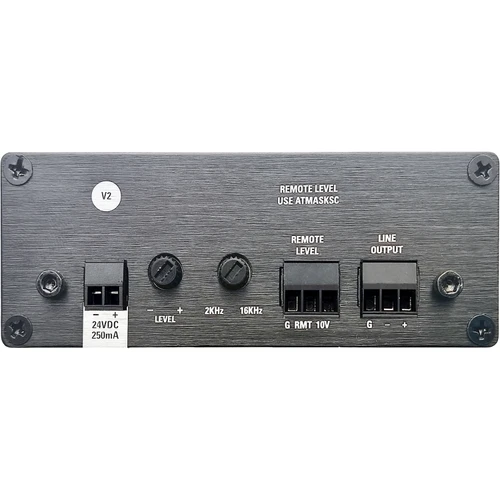

This unit includes a variable balanced output to seamlessly integrate with AtlasIED amplifiers and other audio systems. A variable high-cut filter, adjustable between 2 kHz and 16 kHz with a gentle 6 dB-per-octave slope, allows for precise tuning to meet the unique acoustical requirements of your space. The GPN1200 also supports remote level control via the included AtlasIED ATMASKSC attenuator, which offers fine 1 dB increment adjustments for easy and accurate sound level management.
Engineered for efficiency, the TSD-GPN1200 meets Energy Star standards. Its 24V DC power supply can power multiple Time Saving Devices (TSDs), providing a flexible and eco-friendly solution for multi-device installations. The unit has a modest 250mA power requirement, and a single power supply can be used to power multiple TSDs when paired with the AtlasIED TSD Power Calculator to ensure proper load management.
The GPN1200K includes everything needed to set up a sound masking system, making it a convenient and versatile choice for professionals seeking high-quality performance and reliability. The unit requires the included external power supply for operation, allowing installers to select the most appropriate option based on the specific needs of their project.
Whether you’re enhancing privacy in an open office, medical facility, or any other environment requiring sound masking, the AtlasIED GPN1200K provides a professional-grade solution to ensure an optimal acoustic experience.
| Inputs | |
|---|---|
| Noise Generator | Pink |
| Outputs | |
| Type | Qty 1, Balanced Line |
| Connection | Removable 3 Position Captive Screw 3.5 mm Spacing |
| Impedance | 300 Ω Balanced, 150 Ω Unbalanced |
| Line Output Level | Maximum Output 500 mV |
| Type | Qty 1, Speaker Out 70V Masking Systems |
| Connection | Removable 3 Position Captive Screw 3.5 mm Spacing |
| Line Output Level | Maximum Output 4W |
| Control | |
| Level Control | Qty 1, Removable Knobs With Security Covers |
| Noise Generator Select | Pink |
| Line Out Select | Pre or Post EQ |
| EQ Adjust | Recessed Screw Driver |
| Indicator | |
| Power | Blue |
| Electrical | |
| Topology | Random Analog |
| Frequency Response | 20Hz - 20kHz Line Out Pre-EQ Only |
| EQ Filter | High Cut, Variable, 1kHz -7kHz/6dB |
| Mounting | |
| Velcro | Industrial Grade, Included |
| Brackets | Qty 2, Included |
| TSD-RMK | Optional 1 RU Rack Mount Panel |
| Cable Retainer | Qty 1 |
| Power Requirement | |
| 24V DC | 250mA |
| Average Power Consumption Current | 100mA |
| Average Power Consumption VA Watts | 2.4W |
| Chassis Color | Black |
| Chassis Material | Aluminum |
| Dimensions (H x W x D) | 1.5" (39 mm) x 4" (101 mm) x 2.5" (70 mm) |
| Weight | 0.38 lbs (0.17 kg) |
