The Atlas Sound I8SM has been replaced with the Atlas Sound I8SM+.

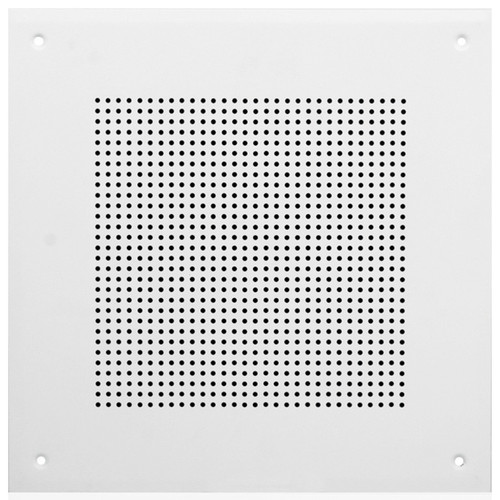

Model I8SM IP speaker from Atlas Sound consists of a factory assembled loudspeaker/ baffle/digital clock with PCB amp/control board securely mounted to the rear of the baffle via concealed weld studs.
The amp/control board is capable of producing 9 Watts RMS into the 8 Ohm loudspeaker with 9VDC minimum power provided by IEEE 802.3AF compliant POE switches. (local 12-18VDC PSUs may also be used instead of POE switches). Interconnection is via a board mounted female RJ-45 connector.
The industry standard C10A loudspeaker used in the I8SM is a dual cone 8" (205 mm) loudspeaker with a 10 oz (260 g) ceramic magnet. It includes a curvilinear paper cone for lower harmonic distortion. The loudspeaker is also equipped with a full 1" (25 mm) diameter copper voice coil with aluminum former for better heat dissipation.
A omni directional subminiature (0.25" / 6 mm), electret condenser microphone is mounted behind the steel perforated material adjacent the loudspeaker to allow 2-way communication and/or monitoring from the loudspeaker location to any PC or IP phone in the system.
The 18-gauge construction of the metal baffle provides security and durability in commercial applications. The baffle is finished in neutral white electrostatic powder coat and is packaged with all necessary mounting screws.- Features
Features
- Use with ControlKom or InformaCast software to send live, prerecorded or ad hoc messages along with control data to Atlas Sound IP Speaker and zone controller end points over new or existing multicast enabled local area networks
- Loudspeakers are Also Compatible with SIP (Session Initiation Protocol) VoIP Systems. Contact Atlas Sound for SIP Configuration Info
- Highly Efficient 10 oz Dual Cone Loudspeaker System Provides 94dB Average SPL@ 1W/1m and is Capable of 103dB @ 1 Meter via the Rated Power of the
- Internal IP Addressable Amplifier
- Use with Berbee InformaCast software, Cisco POE networks & Cisco IP Telephones to create extremely versatile paging and messaging systems
- Built-In Microphone for 1/2 Duplex Communication
- ETL Certified, Safety Listed to UL60950-1
- Wide Frequency Response of 86 Hz - 8 kHz is Perfect for Speech and General Messaging Playback
- 105° Dispersion in the 2 kHz Octave Band (-6 dB)
- Specification
Connector Type RJ-45 Safety Listed 60950-1 Dimensions (H x W x D) 11.50" (29.21 cm) x 11.50" (29.21 cm) x 4.25" (10.7 cm) Shipping Weight 5.50 lbs (2.49 kgs) - Reviews
