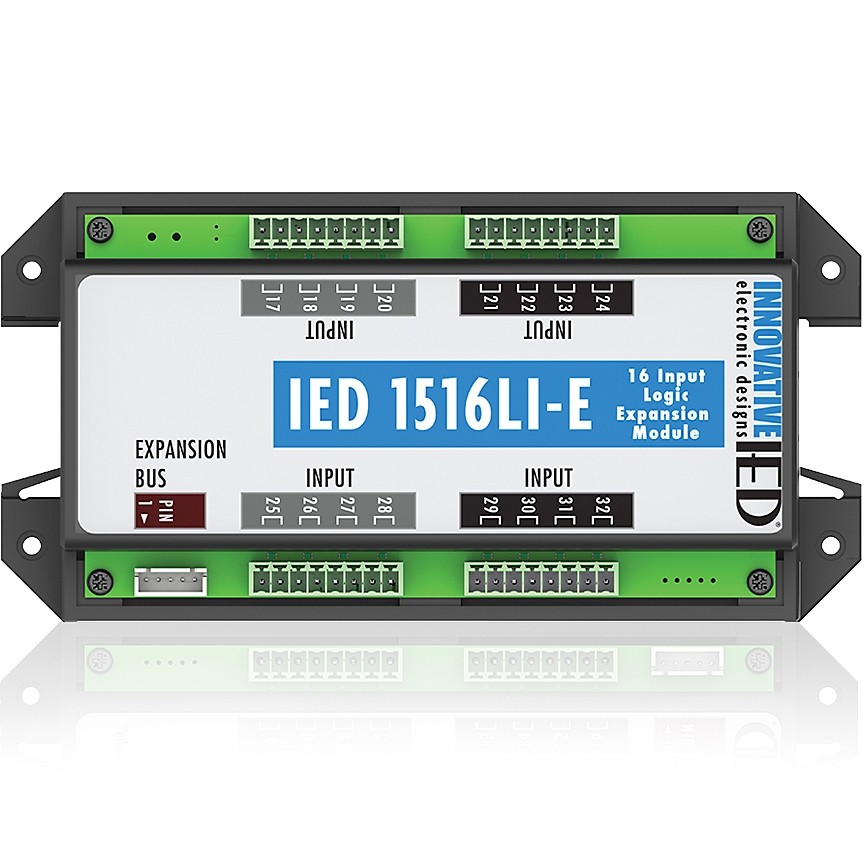

The Atlas Sound IED1516LI-E is a 16 input expansion module that connects directly to a 1516LI to bring its total input capacity up to 32 inputs that can be driven using dry contact closures or 0 to 50VDC logic signals.

Description

Atlas Sound IED1516LI-E 16 Input Logic Expansion Module

The IED1516LI-E is a 16 input expansion module that connects directly to a 1516LI to bring its total input capacity up to 32 inputs that can be driven using dry contact closures or 0 to 50VDC logic signals. A green LED is provided above each input that illuminates when activated. The announcement controller is configured using the GLOBALCOM® System Management Center software where logic inputs can be used to launch announcements, pre-recorded messages, events, or fault reports.

The 1516LI-E receives its power through its connection to the 1516LI. The 1516LI-E connects to the 1516LI through the supplied 5-conductor expansion cable.

Features
  • For use with the IED1516LI to expand optically-isolated inputs to 32
  • 16 optically-isolated inputs to interface with external equipment such as fire panels, security systems, etc.
  • Control and configuration using a web browser and GLOBALCOM® System Management Center
  • Settings storage in non-volatile memory
  • Full integration with the IED GLOBALCOM® vACS

Specifications
Dimensions (H x W x D) 7.01" ( mm) x 3.5" ( mm) x 2" ( mm)
Weight 0.46 lb (0.21 kg)
