The AtlasIED Learn MAGPIE2-1 complete kit is the ideal solution for smaller classrooms or boardrooms and allows you to get all the benefits of the Atlas Learn system without paying for parts or accessories that are not needed.

Description

The Atlas Learn MAGPIE2-1 complete kit is the ideal solution for smaller classrooms or boardrooms.  The kit includes one (1) AL2430 amplifier/receiver, two (2) AL-MAGPIE wireless microphones, one (1) AL-MAGPIE-NEST charging station, one (1) infrared dome transmitter, and ten (10) meters of coaxial cable to connect the AL-IRDS with the AL2430.  This kit allows you to get all the benefits of the Atlas Learn system without paying for parts or accessories that are not needed.

AtlasIED offers a full line of compatible in-ceiling and surface mount loudspeakers that can be used with an Atlas Learn system.

Features
  • AL2430 6 Input Mixer with Priority Page Override
  • Front Panel Source Volume Control
  • 3.67V Long Life Rechargeable Battery Provides Over 8 Hours of Use Between Charges
  • Integrated "Panic" Trigger for Emergency Notification
  • Supports Up to Three Infrared Wireless Microphone Transmitters

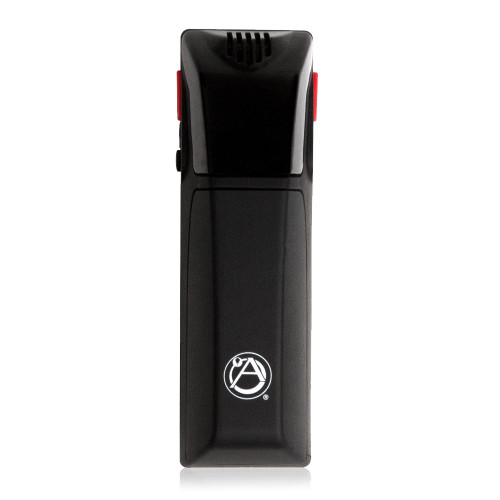

  • AL-MAGPIE Wireless Infrared Microphone Transmitter
  • Breakaway Lanyard Included
  • AL-IRDS Includes 10m Coaxial Cable for Connection to AL2430
  • 3.5 mm Input for Optional Headset, Collar, or Lapel Microphone

Specifications
AL2430 Receiver/Amp
Power Output 30W RMS (8Ω, 25V or 70V Output)
Multimedia Input Sensitivity -10dB
Priority Page Input Sensitivity 14dB
Computer Input Impedance 56K
Multimedia Input Impedance 22K
Multimedia Input Connector Type (4) Dual RCA
AUX Front Input Connector Type 3.5 mm
Line Output Impedance 1K
Line Output Voltage 1.3V
Line Output Connector Type Dual RCA
Mic EQ (100Hz, 3kHz, & 10kHz) Adjustment ±10dB
IR Input Impedance / Connector Type 75Ω F Connector
Panic Output Contact Rating 5A @ 36V
UL Listed Power Supply 100-240V (50/60Hz) 1.7A In/ 24VDC 2.5A out
Receiver Dimensions (H x W x D) 1.75" (45 mm) x 8.5" (216 mm) x 13.5" (343 mm)
Receiver Weight 5.75 lbs (2.6 kg)
Magpie Transmitter Mic
IR LEDs 6
Headset/AUX Input 1 - 3.5 mm Phono Jack, Mic Level
External Controls Mic Volume Up/Down Power, “Panic”
Internal Controls Lockout, Mic A/B Channel
UL Listed Power Supply (included) 100-240V (50/60Hz) 0.2A In/ 0.5VDC 1A out
Microphone Dimensions (H x W x D) 3.8" (97 mm) x 1.15" (29 mm) x 1" (25 mm)
Microphone Weight 2.24 oz. (65 g) with battery
Magpie “Nest” Charging Station
AL-MAGPIE Ports Two Charging Ports
Charge Indicator LEDs Two Charge Indicator LEDs
UL Listed Power Supply 100-240V (50/60Hz) .2A In/ .5VDC 1A out
Charging Station Dimensions (H x W x D) 1.75" (44 mm) x 6.5" (165 mm) x 2.75" (70 mm)
Charging Station Weight 0.125 lbs (0.06 kg)

DOCUMENTS

System Includes
  • (1) AL2430 Amplifier/Receiver
  • (2) AL-MAGPIE Wireless Microphones
  • (1) AL-MAGPIE-NEST Charging Station
  • (1) Infrared Dome Transmitter with Mounting Bracket
  • (10) Meters of Coaxial Cable (to connect the AL-IRDS with the AL2430)
